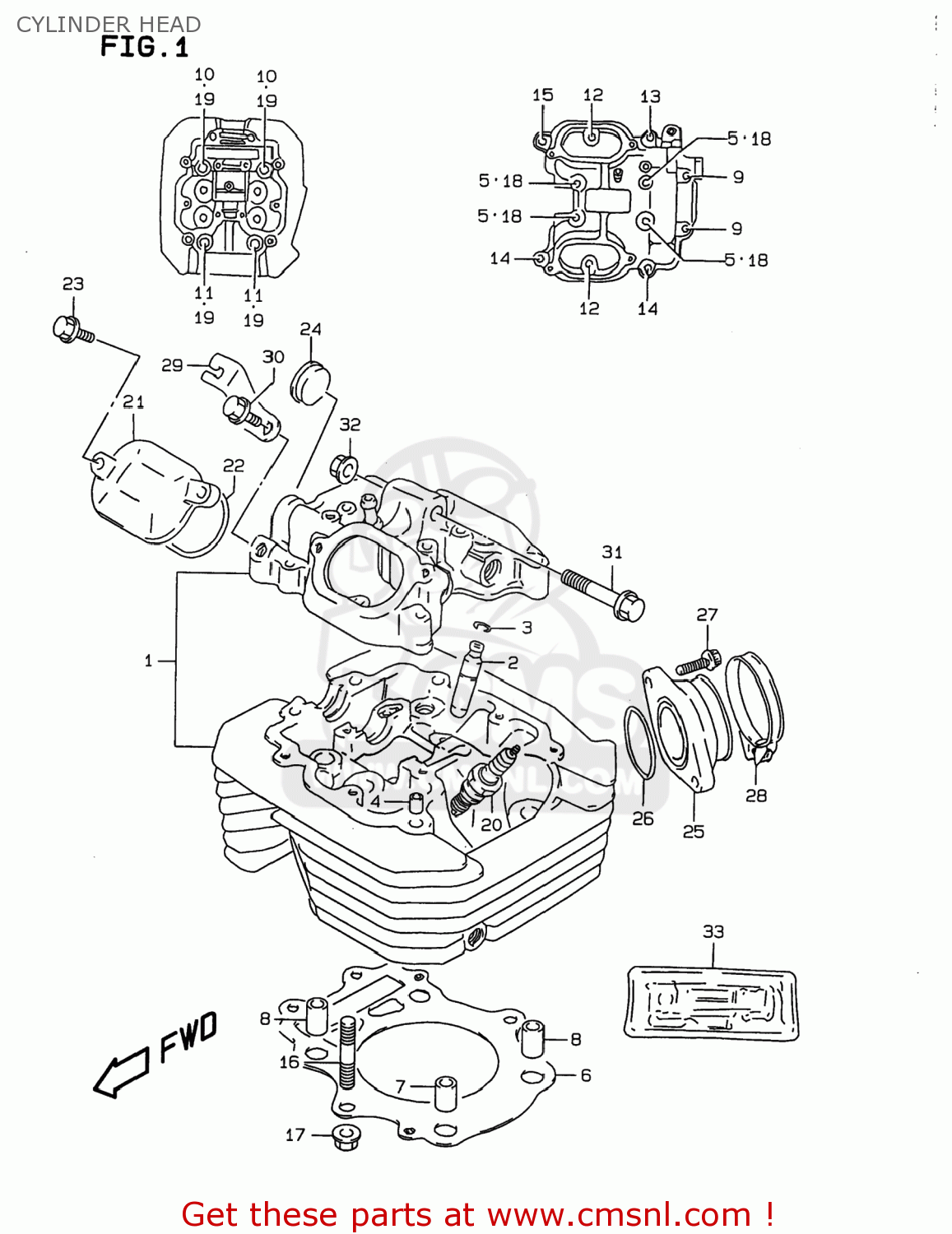

CYLINDER HEAD

ref

part #

description

quantity

1

1110014D50
ref: 1

HEAD ASSY,CYLINDER

€ 945.00

2

1111514D71
ref: 2

GUIDE,VALVE

€ 19.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0910306102
ref: 5

BOLT(6X55)

€ 2.50

6

1114114D01
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 30.00

7

0421113189
ref: 7

PIN

€ 2.50

8

0920613004
ref: 8

PIN(10.4X13X22)

€ 3.00

9

0910306167
ref: 9

BOLT(6X115)

€ 4.50

10

0910310178
ref: 10

BOLT(10X180)

€ 12.50

11

0910310223
ref: 11

BOLT(10X155)

€ 14.50

12

0155006253
ref: 12
01550-0625A

BOLT

€ 2.50

13

0155006303
ref: 13
01550-0630A

BOLT

€ 2.50

14

0910306108
ref: 14

BOLT(6X35)

€ 2.00

15

0910306504
ref: 15

BOLT(6X39)

€ 3.50

16

0910808142
ref: 16

BOLT,STUD

€ 3.00

17

0831610083
ref: 17
08316-1008B

NUT

€ 3.00

18

0916806023
ref: 18

GASKET(5.8X13X1.2) (NAS)

€ 2.00

19

0916010060
ref: 19
09160-10039

WASHER (10.5X22X2.3)

€ 2.50

20-1

0948200410
ref: 20-1

PLUG,SPARK(CR9EK)

€ 10.50

20-2

0948200411
ref: 20-2
09482-00459

PLUG,SPARK(U27ETR)

€ 8.50

20-3

0948200412
ref: 20-3

PLUG,SPARK(CR8EK)

€ 11.00

20-4

0948200462
ref: 20-4

PLUG,SPARK(CR10EK)

€ 10.50

20-5

0948200413
ref: 20-5

PLUG,SPARK(U24ETR)

€ 11.00

20-6

0948200463
ref: 20-6

PLUG,SPARK(U31ETR)

€ 10.50

21

1117547D00
ref: 21

CAP,INSPECTION

€ 12.00

22

1117714D01
ref: 22

O RING,INSPECTION CAP

€ 4.00

23

0155006203
ref: 23
01550-0620A

BOLT

€ 2.50

24

0924125007
ref: 24

PLUG,OD:30

€ 6.00

25-1

1310114D01
ref: 25-1

PIPE ASSY,INTAKE

€ 47.50

25-2

1310114D21
ref: 25-2

PIPE ASSY,INTAKE

€ 43.50

26

0928040010
ref: 26

O RING(D:2.4,ID:39.7)

€ 3.50

27

0712006203
ref: 27
07120-0620B

BOLT

€ 3.50

28

0940252208
ref: 28

CLAMP

€ 5.50

29

1294414A00
ref: 29

LEVER,DECOMP SHAFT RH

€ 6.50

30

0155008163
ref: 30
01550-0816A

BOLT

€ 3.00

31

0910308280
ref: 31

BOLT(8X65)

€ 6.00

32

0831931087
ref: 32

NUT

€ 2.50

33

1140114860
ref: 33

GASKET SET (NAS)

€ 89.00

all assemblies
