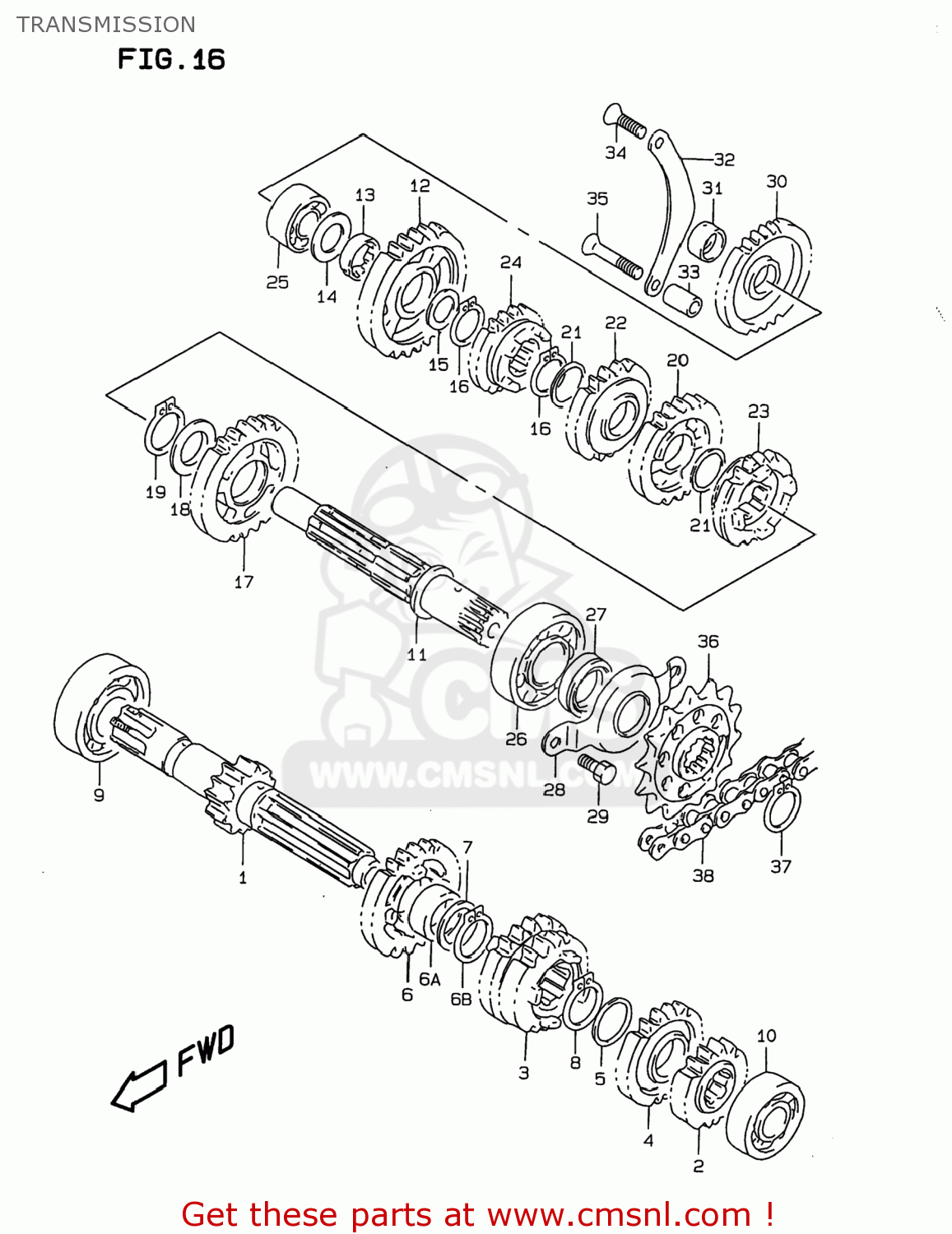

TRANSMISSION

ref

part #

description

quantity

1

2412014D03
ref: 1

SHAFT,COUNTER(NT:12)

€ 117.00

2-1

2422114D00
ref: 2-1
24221-14D01

GEAR,SECOND DRIVE (NT:15)

€ 88.50

2-2

2422114D01
ref: 2-2

GEAR,2ND DRIVE

€ 88.50

3

2423114D00
ref: 3

GEAR,3RD & 4TH DRIVE(NT:18/18)

€ 108.00

4

2425114D00
ref: 4

GEAR,5TH DRIVE(NT:21)

€ 84.50

5

0918122111
ref: 5

SHIM(22X26X1)

€ 3.00

6

2426114D02
ref: 6

GEAR,6TH DRIVE(NT:23)

€ 83.00

6A

0930022008
ref: 6A

BUSH(22X26X9)

€ 10.50

6B

0833131226
ref: 6B
08331-3122A

CIRCLIP

€ 2.00

7

0918122167
ref: 7

SHIM(22X30X1)

€ 3.00

8

0938022006
ref: 8

CIRCLIP

€ 3.00

9

0926220116
ref: 9
09262-20145

BEARING 20X52X15

€ 24.00

10

0926217018
ref: 10
09262-17027

BEARING

€ 25.00

11

2413014D14
ref: 11

SHAFT,DRIVE

€ 179.00

12

2431115D00
ref: 12

GEAR,1ST DRIVEN(NT:30)

€ 67.50

13

2431214D00
ref: 13

BUSH,1ST DRIVEN GEAR

€ 15.00

14

0821117322
ref: 14

WASHER

€ 2.50

15

0918122167
ref: 15

SHIM(22X30X1)

€ 3.00

16

0938022006
ref: 16

CIRCLIP

€ 3.00

17

2432014D00
ref: 17

GEAR,2ND DRIVEN(NT:26)

€ 87.50

18

0918125167
ref: 18

SHIM(25X34X1)

€ 3.50

19

0938025010
ref: 19

CIRCLIP

€ 3.00

20

2433114D01
ref: 20

GEAR,3RD DRIVEN(NT:24)

€ 87.50

21

0918122139
ref: 21

SHIM(22X28X1)

€ 4.00

22

2434114D00
ref: 22

GEAR,4TH DRIVEN(NT:20)

€ 80.50

23-1

2435114D00
ref: 23-1
24351-14D01

GEAR,FIFTH DRIVEN (NT:20)

€ 95.00

23-2

2435114D01
ref: 23-2

GEAR,5TH DRIVEN(NT:20)

€ 95.00

24

2436114D01
ref: 24

GEAR,6TH DRIVEN(NT:19)

€ 95.50

25

0926717003
ref: 25

BEARING(17X40X17.5)

€ 57.00

26

0926222024
ref: 26

BEARING(22X56X16)

€ 40.00

27

0928322025
ref: 27

SEAL,OIL(22X34X7)

€ 12.50

28

2475114D00
ref: 28

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

29

0150006123
ref: 29
01500-0612A

BOLT

€ 2.00

30

2626114D10
ref: 30

GEAR,KICK STARTER IDLE(NT:27)

€ 58.50

31

2626214D00
ref: 31

BUSH,KICK STARTER IDLE GEAR

€ 11.00

32

2626414D00
ref: 32

RETAINER,KICK IDLE GEAR

€ 10.00

33

0918006314
ref: 33

SPACER(6.5X12X21)

€ 2.50

34

0212206163
ref: 34
02122-0616A

SCREW ,6X16

€ 2.00

35

0212206353
ref: 35
02122-0635B

SCREW

€ 2.00

36

2751114320
ref: 36

SPROCKET(NT:15)

€ 20.00

37

0938022012
ref: 37

CIRCLIP

€ 3.50

38

2760014A10110
ref: 38

CHAIN(DID520VC5,110LE)

€ 107.50
