FOOTREST

DR350SE 1990 (L) USA (E03)

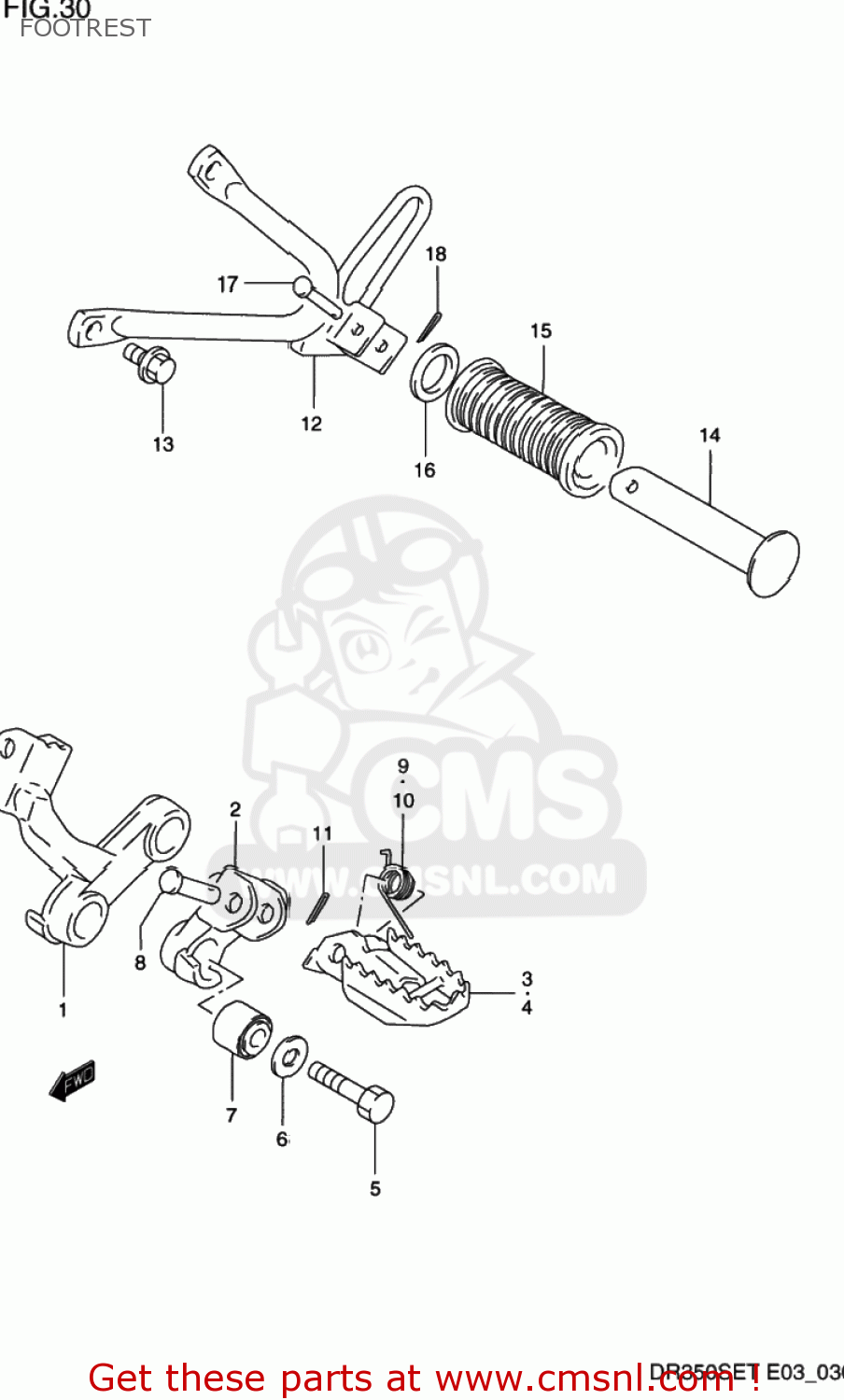

Footrest diagram DR350SE 1990 (L) USA (E03)

FOOTREST DR350SE 1990 (L) USA (E03)
FOOTREST DR350SE 1990 (L) USA (E03)
FOOTREST DR350SE 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4351015D000NF
ref: 1-1
FOOTREST,FRONT,RIGHT (BLUE)
€ 0.00
1-2
4351015D00019
ref: 1-2
BRACKET,FR FOOTREST,R
4351015D00019
€ 76.50
2-1
4352015D000NF
ref: 2-1
FOOTREST,FRONT,LEFT (BLUE )
4352015D000NF
€ 79.00
2-2
4352015D00019
ref: 2-2
BRACKET,FR FOOTREST,L
€ 80.50
3-1
4355014D000NF
ref: 3-1
43550-14D10
FOOTREST COMP,FRONT,RIGHT
4355014D000NF
€ 69.00
3-2
4355014D00019
ref: 3-2
43550-14D10
FOOTREST COMP,FRONT,RIGHT
€ 69.00
3-3
4355014D10019
ref: 3-3
43550-14D10
FOOTREST COMP,FRONT,RIGHT
€ 69.00
4-1
4356014D000NF
ref: 4-1
43560-14D10
FOOTREST COMP,FRONT,LEFT
€ 122.00
4-2
4356014D00019
ref: 4-2
43560-14D10
FOOTREST COMP,FRONT,LEFT
€ 122.00
4-3
4356014D10019
ref: 4-3
43560-14D10
FOOTREST COMP,FRONT,LEFT
€ 122.00
5-1
0910010281
ref: 5-1
09100-10283
BOLT
€ 4.00
5-2
0910010283
ref: 5-2
BOLT(10X45)
0910010283
€ 4.00
6-1
0916010075
ref: 6-1
09160-10125
WASHER (10.1X22X3.2)
€ 2.50
6-2
0832201107
ref: 6-2
WASHER
0832201107
€ 2.50
6-3
0916010119
ref: 6-3
09160-10143
WASHER(10.5X22X1.6)
0916010119
€ 2.00
7
0931910033
ref: 7
BUSH(10.2X25X19)
0931910033
€ 6.50
8
0920010013
ref: 8
PIN
0920010013
€ 2.50
9
0944815008
ref: 9
09448-15008-XC0
SPRING
0944815008
€ 2.50
10
0944815004
ref: 10
SPRING
0944815004
€ 2.50
11
0411120208
ref: 11
04111-2020A
PIN 20X20
0411120208
€ 1.50
12-1
4365014D00019
ref: 12-1
BRACKET,PILLION FOOT,R(BLACK)
4365014D00019
€ 64.50
12-2
4375014D00019
ref: 12-2
BRACKET,PILLION FOOT,L(BLACK)
4375014D00019
€ 58.00
13-1
0112708205
ref: 13-1
01550-0820A
BOLT
€ 3.00
13-2
0151708205
ref: 13-2
01550-0820A
BOLT
€ 3.00
13-3
0155008203
ref: 13-3
01550-0820A
BOLT
0155008203
€ 3.00
14
4361003001
ref: 14
BAR,FOOTREST RUBBER
4361003001
€ 5.50
15
4361233200
ref: 15
RUBBER,PILLION FOOTREST
4361233200
€ 4.50
16
0916019006
ref: 16
09160-19024
WASHER (19.5X32X2)
0916019006
€ 2.00
17
0920006033
ref: 17
PIN
0920006033
€ 2.00
18-1
0411120208
ref: 18-1
04111-2020A
PIN 20X20
0411120208
€ 1.50
18-2
0411120158
ref: 18-2
04111-2015A
PIN
0411120158
€ 1.50
