LEFT HANDLE LEVER (MODEL L/M/N/P)
DR350SE 1990 (L) USA (E03)

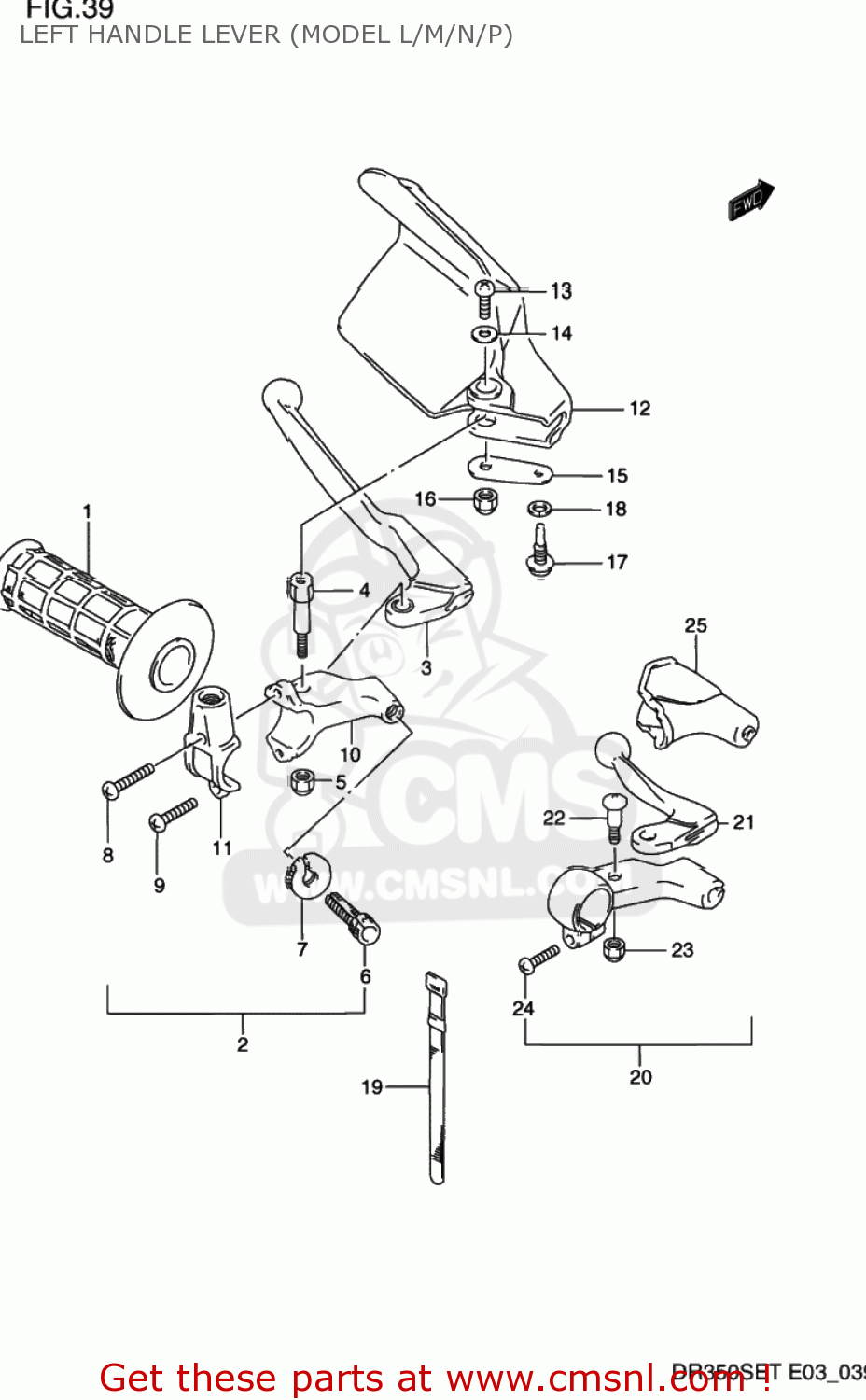

Left handle lever (model l/m/n/p) diagram DR350SE 1990 (L) USA (E03)
LEFT HANDLE LEVER (MODEL L/M/N/P) DR350SE 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721127C00
ref: 1
GRIP,L
€ 11.00
2
5750015D00
ref: 2
LEVER ASSY,CLUTCH
€ 53.50
3
5762014300
ref: 3
LEVER,CLUTCH
€ 26.00
4
5763105D00
ref: 4
BOLT,LEVER SET
€ 7.00
5
0831921068
ref: 5
08319-2106A
NUT 6MM
€ 2.00
6
5744111010
ref: 6
ADJUSTER,CABLE
€ 8.00
7
5744205D00
ref: 7
NUT,LOCK
€ 7.50
8
0912505105
ref: 8
09125-05105-XC0
SCREW
€ 4.50
9
0912505102
ref: 9
SCREW(5X14)
€ 2.50
10
5751114300
ref: 10
HOLDER,CLUTCH LEVER
€ 29.50
11
5751203D00
ref: 11
BRACKET,HOLDER
€ 24.00
12
5754105D010NF
ref: 12
COVER,KNUCKLE,L
€ 31.00
13
0912505042
ref: 13
SCREW(5X10)
€ 2.50
14
0916005017
ref: 14
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
15
5754205D00
ref: 15
PLATE,KNUCKLE COVER,L LWR
€ 3.50
16
0831921068
ref: 16
08319-2106A
NUT 6MM
€ 2.00
17
0913906010
ref: 17
09139-06086
SCREW
€ 3.00
18
0832101067
ref: 18
WASHER,LOCK
€ 2.50
19
0940712402
ref: 19
CLAMP(L:120)
€ 3.00
20
5870038200
ref: 20
LEVER ASSEMBLY,DECOMPRESSION
€ 169.50
21
5873138200
ref: 21
LEVER,DECOMP
€ 42.00
22
5743101012
ref: 22
BOLT,LEVER PIVOT
€ 5.00
23
5763338200
ref: 23
NUT
€ 2.00
24
0211206205
ref: 24
02112-0620A
SCREW
€ 2.00
25
5734237101
ref: 25
COVER,DECOMP LEVER DUST
€ 9.50
