SEAT
DR350SE 1990 (L) USA (E03)

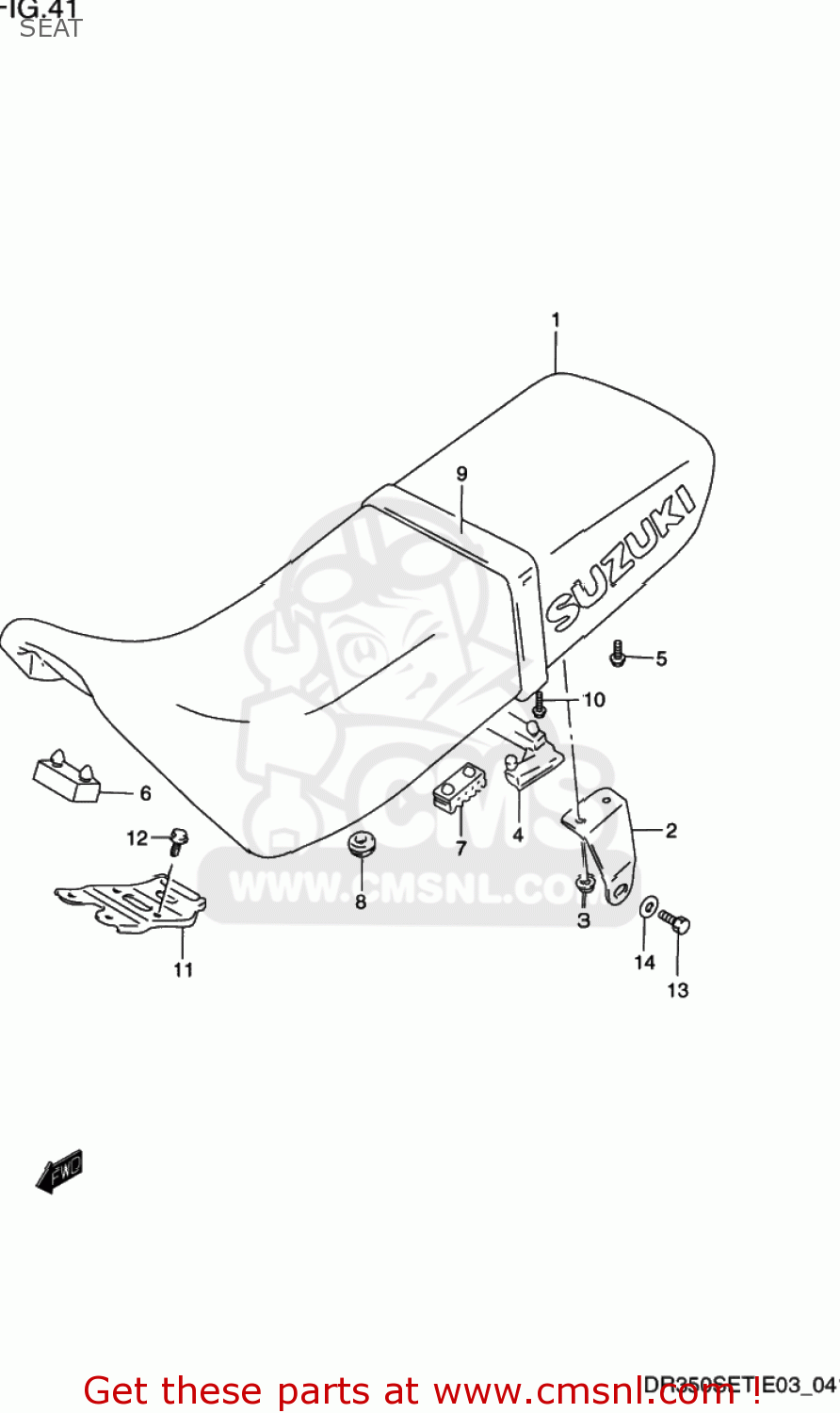

Seat diagram DR350SE 1990 (L) USA (E03)
SEAT DR350SE 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510015D109DD
ref: 1-1
SEAT SET
€ 279.50
1-2
4510015D10E5J
ref: 1-2
SEAT SET
€ 0.00
2-1
4511614D00
ref: 2-1
BRACKET,SEAT,R
€ 8.00
2-2
4511714D00
ref: 2-2
BRACKET,SEAT,L
€ 8.00
3
0831610063
ref: 3
08316-1006B
NUT
€ 2.50
4
4525514D00
ref: 4
CUSHION
€ 30.00
5-1
0155006107
ref: 5-1
BOLT
€ 2.50
5-2
0155006103
ref: 5-2
01550-0610A
BOLT
€ 2.50
6
0932108006
ref: 6
CUSHION
€ 3.00
7
4514931300
ref: 7
CUSHION,SEAT(40X20X15)
€ 2.00
8
0932008013
ref: 8
CUSHION
€ 4.00
9-1
4518015D104UZ
ref: 9-1
45180-15D10-S04
BAND,SEAT GRIP (BLUE)
€ 0.00
9-2
4518015D10R32
ref: 9-2
BAND ASSY,SEAT
€ 0.00
10
0155006203
ref: 10
01550-0620A
BOLT
€ 2.50
11-1
4512015D00
ref: 11-1
45120-15D01
PLATE,SEAT FRONT HOOK
€ 16.50
11-2
4512015D01
ref: 11-2
PLATE,SEAT FR HOOK
€ 16.50
12
0155008123
ref: 12
01550-0812A
BOLT
€ 3.50
13-1
0110708125
ref: 13-1
01500-0812A
BOLT
€ 1.50
13-2
0155008123
ref: 13-2
01550-0812A
BOLT
€ 3.50
14
0832211084
ref: 14
08322-0108A
WASHER
€ 1.50
