CLUTCH
DR350SE 1998 (W)

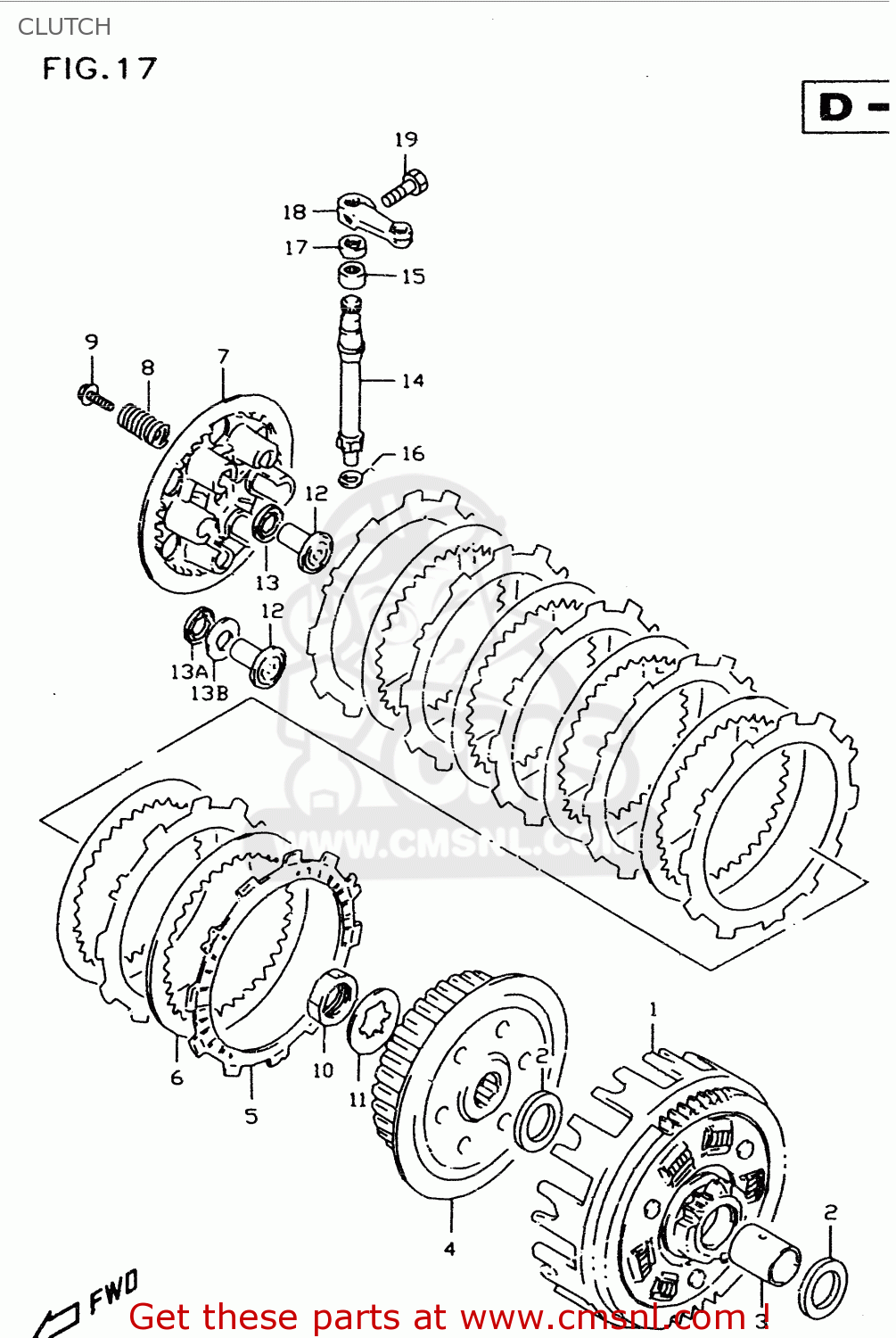

Clutch diagram DR350SE 1998 (W)
CLUTCH DR350SE 1998 (W)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120015D21
ref: 1-1
NT:64/15,MODEL R/S
GEAR ASSY,PRI DRIVEN(64/15
€ 238.00
1-2
2120014D11
ref: 1-2
NT:62/15,MODEL T/V/W
GEAR ASSY,PRI DRIVEN(62/15
€ 321.00
1-3
2120015D21
ref: 1-3
NT:64/15,MODEL T/V/W
GEAR ASSY,PRI DRIVEN(64/15
€ 238.00
2
0821120363
ref: 2
WASHER
€ 3.50
3
0918020109
ref: 3
SPACER(20X25X29)
€ 15.50
4
2141014D00
ref: 4
HUB,CLUTCH SLEEVE
€ 114.00
5
2144112D01
ref: 5
PLATE,CLUTCH DRIVE (NAS)
€ 16.50
6-1
2145128C30
ref: 6-1
MODEL R/S/T
PLATE,CLUTCH DRIVEN T: (NAS)
€ 10.50
6-2
2145128C31
ref: 6-2
MODEL V/W
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 10.50
7
2146200B02
ref: 7
DISC,CLUTCH PRESSURE
€ 40.00
8
0944015014
ref: 8
SPRING
€ 4.00
9
0911605003
ref: 9
BOLT 5X16
€ 2.50
10
0914020001
ref: 10
<-09140-20002
NUT
€ 3.50
11
0916720009
ref: 11
WASHER,LOCK
€ 3.00
12-1
2316544B01
ref: 12-1
MODEL R/S/T <-23165-
RACK,CLUTCH RELEASE
€ 17.00
12-2
2316500B01
ref: 12-2
MODEL V
RACK,CLUTCH RELEASE
€ 17.00
12-3
2316544B01
ref: 12-3
MODEL W
RACK,CLUTCH RELEASE
€ 17.00
13
0926310002
ref: 13
~F.NO.SK42A-115250 ~
BEARING(10X22X2.8)
€ 8.50
13A
0926310016
ref: 13A
F.NO.SK42A-115251~ F
BEARING(10X24X2)
€ 7.00
13B
0821110241
ref: 13B
F.NO.SK42A-115251~ F
WASHER
€ 2.50
14
2326114D02
ref: 14
PINION,CLUTCH RELEASE
€ 36.00
15
0926312024
ref: 15
BEARING(12X16X10)
€ 11.00
16-1
0821108141
ref: 16-1
MODEL R/S/T
WASHER
€ 1.50
16-2
0918108139
ref: 16-2
MODEL V/W
SHIM(8.8X14X1)
€ 1.50
17
0928510004
ref: 17
SEAL,OIL(10X17X5)
€ 3.50
18
2327120901
ref: 18
ARM,CLUTCH RELEASE
€ 20.50
19
0150006163
ref: 19
BOLT
€ 2.00
