SECOND AIR (E18)

DR350SE 1998 (W)

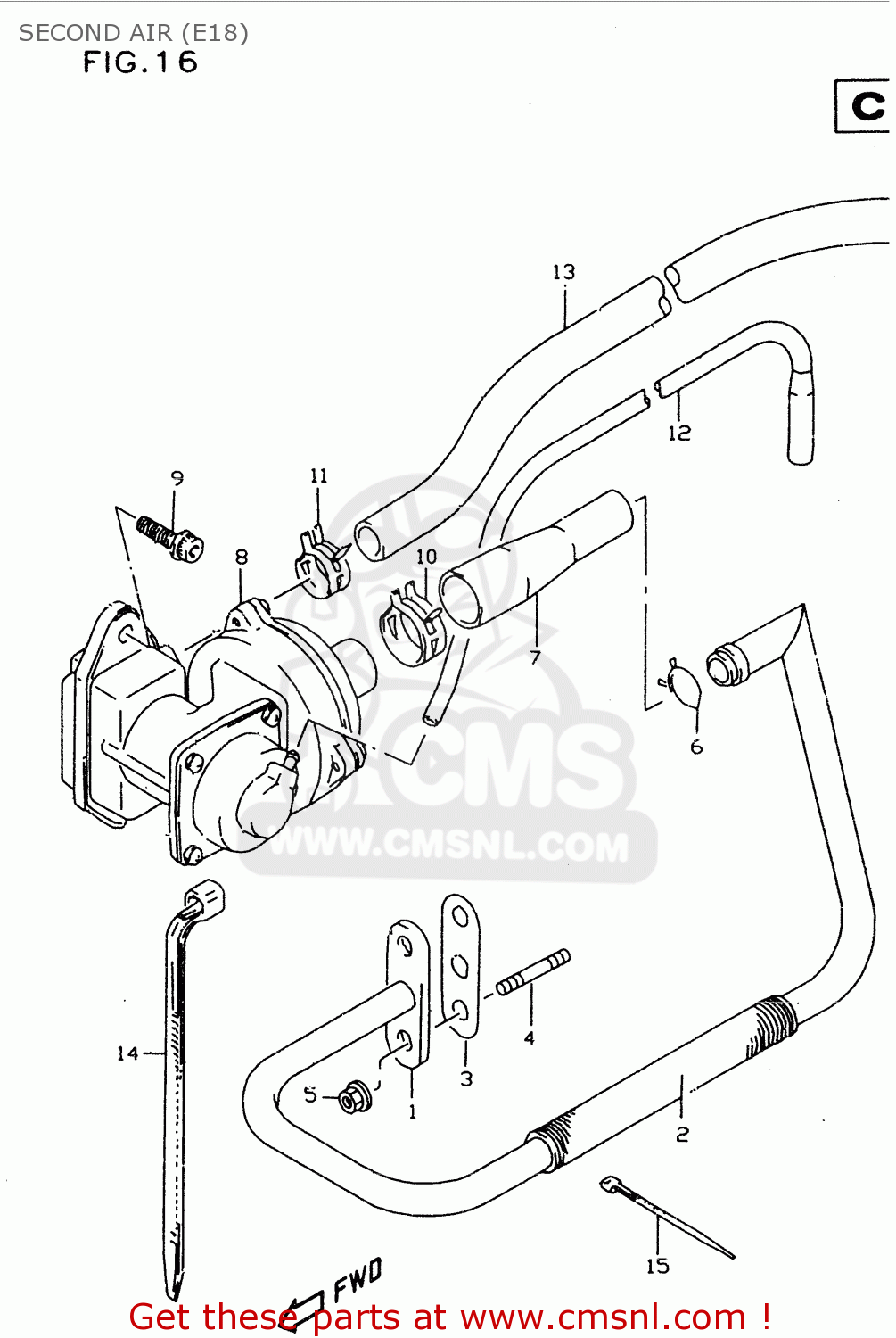

Second air (e18) diagram DR350SE 1998 (W)

SECOND AIR (E18) DR350SE 1998 (W)

SECOND AIR (E18) DR350SE 1998 (W)

prices are in EUR

ref

part #

description

quantity

1

1842014D21
ref: 1

PIPE,2ND AIR

€ 44.50

2

1842114D20
ref: 2

PROTECTOR, 2WD AIR PIPE

€ 10.50

3

1844145C00
ref: 3

GASKET,SECOND AIR PIPE (N (NAS)

€ 6.00

4

0142106163
ref: 4

STUD BOLT

€ 2.00

5

0831610063
ref: 5

NUT

€ 2.50

6

0940115301
ref: 6

CLIP

€ 2.50

7

1844614D00
ref: 7

HOSE, 2ND AIR

€ 22.00

8

1845014D00
ref: 8

VALVE ASSY,2ND AIR REED

€ 377.50

9

0712006203
ref: 9

BOLT

€ 3.50

10-1

0940123403
ref: 10-1
MODEL R/S/T

CLIP

€ 4.50

10-2

0940122404
ref: 10-2
MODEL V/W

CLIP,SECOND AIR HOSE

€ 3.00

11

0940115404
ref: 11

CLIP

€ 2.50

12

0935940701600
ref: 12
L:600->400

HOSE(4X7X600)

€ 9.00

13

0935212163600
ref: 13
L:600->350

HOSE(12X16X600)

€ 24.50

14

0940718403
ref: 14

CLAMP L:165

€ 2.50

15

0940714407
ref: 15

CLAMP(L:145)

€ 4.00
