CRANKSHAFT
DR350SE 1998 (W)

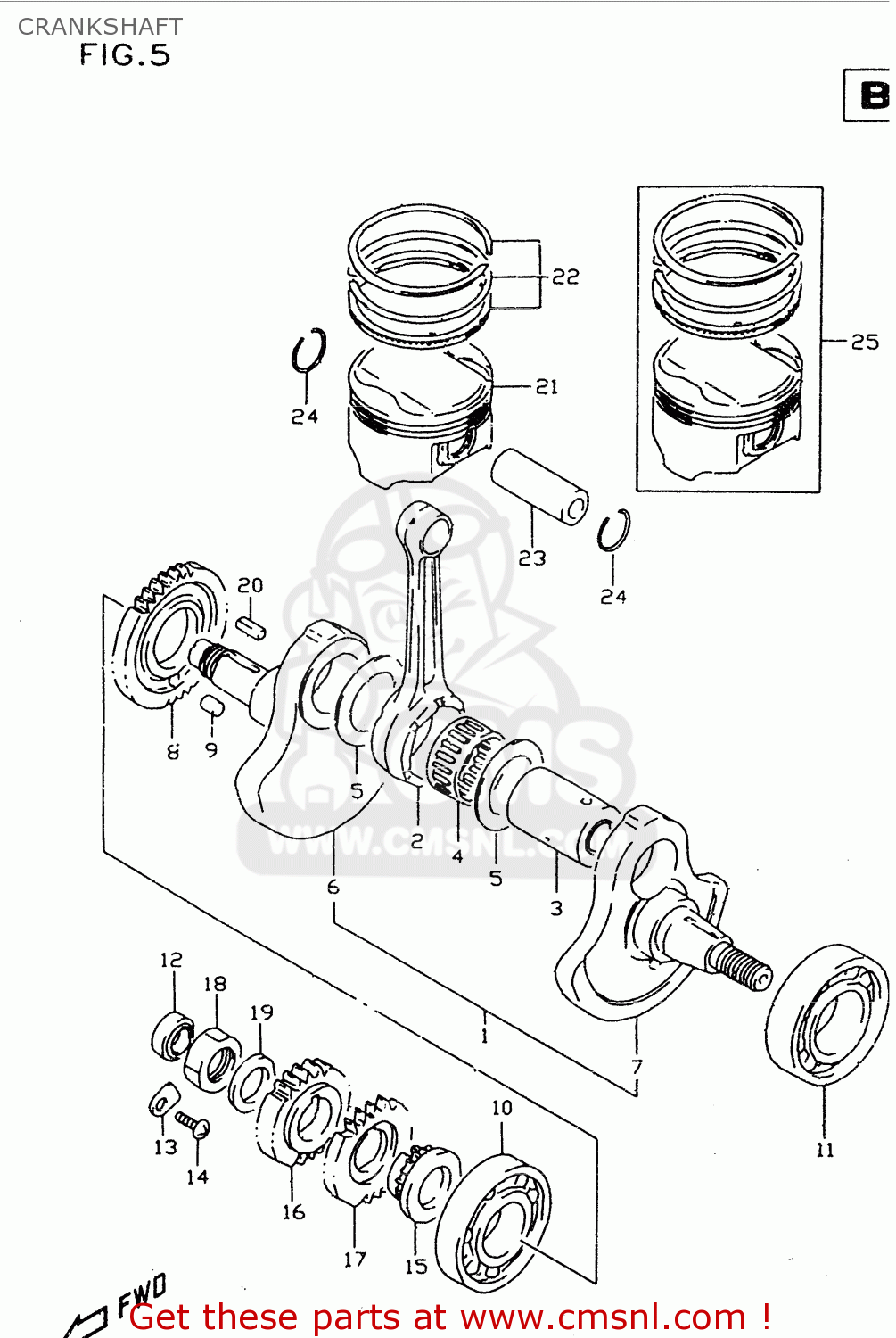

Crankshaft diagram DR350SE 1998 (W)
CRANKSHAFT DR350SE 1998 (W)
×
prices are in EUR
ref
part #
description
quantity
1
1220014E00
ref: 1
CRANKSHAFT ASSY
€ 971.50
2
1216114D00
ref: 2
ROD,CONNECTING
€ 98.50
3
1221014D02
ref: 3
PIN COMP,CRANK
€ 56.00
4
0926334005
ref: 4
BEARING(34X43X22)
€ 45.50
5
0916034003
ref: 5
WASHER(34X52X1)
€ 6.50
6
1222114D01
ref: 6
CRANKSHAFT,R
€ 302.50
7
1226114E00
ref: 7
CRANKSHAFT,L
€ 233.50
8
1266114D00
ref: 8
GEAR,CRANK BAL DRIVE(NT:37)
€ 118.00
9
0422108149
ref: 9
PIN
€ 2.50
10
0926230077
ref: 10
BEARING(30X72X19)
€ 47.50
11
0926235038
ref: 11
BEARING(35X72X17)
€ 38.00
12
0928214003
ref: 12
SEAL,OIL(14X24X6)
€ 8.00
13
2474218A00
ref: 13
RETAINER,BEARING
€ 2.00
14
0211206123
ref: 14
SCREW
€ 1.50
15
1273114D00
ref: 15
NT:17
SPROCKET,CAM CHAIN DRIVE
€ 50.00
16-1
2111115D20
ref: 16-1
MODEL R/S
GEAR,PRIMARY DRIVE (NT:
€ 50.00
16-2
2111114D01
ref: 16-2
MODEL T/V/W
GEAR,PRIMARY DRIVE
€ 41.00
16-3
2111115D21
ref: 16-3
MODEL T/V/W E18,E24,
GEAR,PRIMARY DRIVE
€ 50.00
17
1632115D00
ref: 17
GEAR,OIL PUMP DRIVE (NT
€ 36.00
18
0914018012
ref: 18
NUT
€ 8.00
19-1
0916418001
ref: 19-1
MODEL R/S
WASHER
€ 3.00
19-2
0916418007
ref: 19-2
MODEL T/V/W
WASHER
€ 3.00
20
0942105009
ref: 20
KEY
€ 8.00
21
1211114D030F0
ref: 21
PISTON
€ 81.50
22
1214014D10
ref: 22
RING SET,PISTON
€ 57.00
23
1215124A00
ref: 23
PIN,PISTON
€ 18.50
24
0938120004
ref: 24
CIRCLIP,PISTON PIN
€ 2.00
25-1
1210014D01050
ref: 25-1
OPT
PISTON SET(OS:0.5)
€ 133.00
25-2
1210014D01100
ref: 25-2
OPT
PISTON SET (OS:1.0)
€ 107.00
