CARBURETOR (MODEL R/S)
DR350SE 1998 (X)

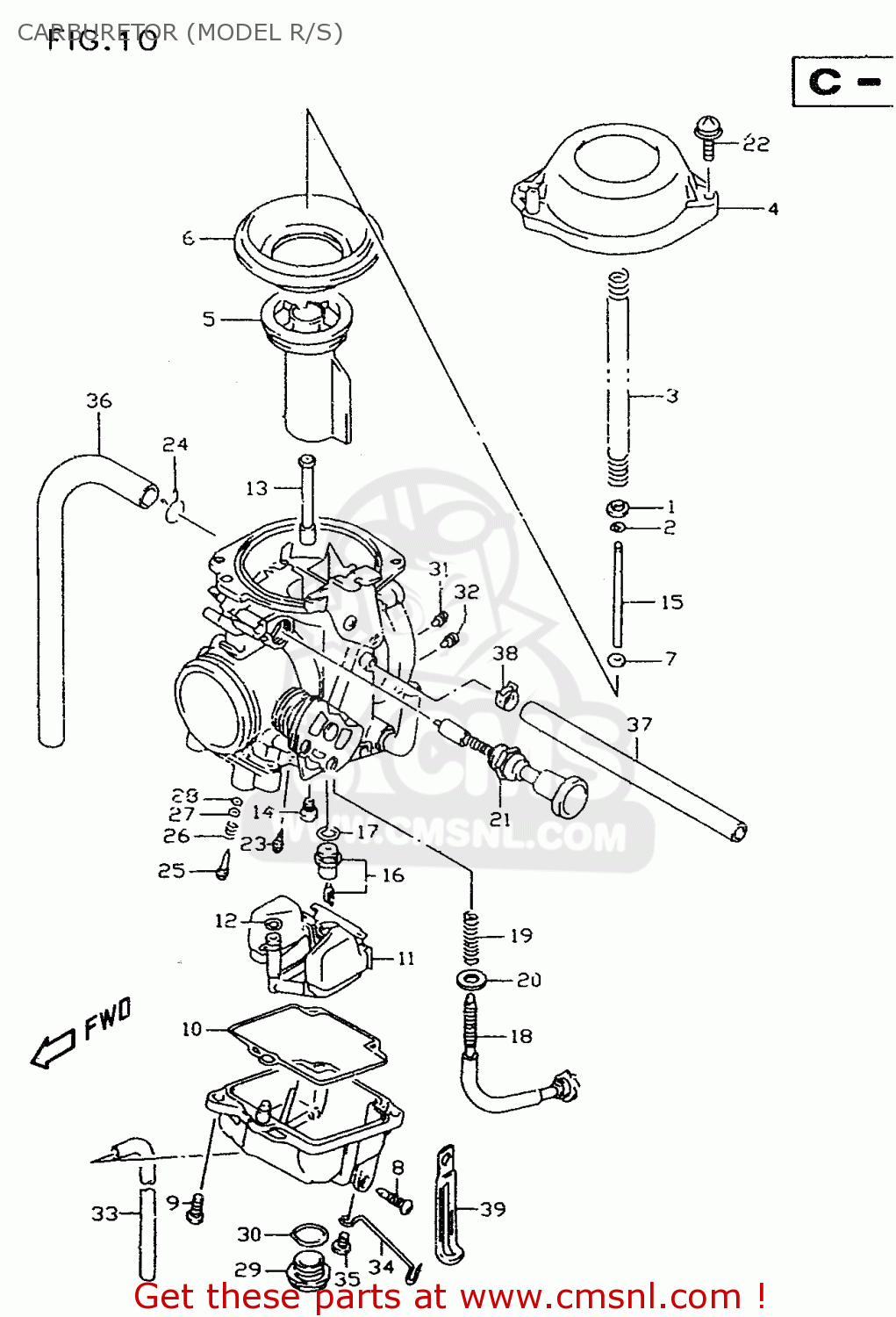

Carburetor (model r/s) diagram DR350SE 1998 (X)
CARBURETOR (MODEL R/S) DR350SE 1998 (X)
×
prices are in EUR
ref
part #
description
quantity
0
1320014EK0
ref: 0
CARBURETOR ASSY
€ 524.00
0
1320014EL0
ref: 0
E18
CARBURETOR ASSY
€ 0.00
0
1320014EM0
ref: 0
E22
CARBURETOR ASSY
€ 373.50
0
1320014EM0
ref: 0
E24
CARBURETOR ASSY
€ 373.50
0
1320014EK0
ref: 0
E94
CARBURETOR ASSY
€ 524.00
1
1338242A00
ref: 1
RING
€ 3.50
2
1339401D00
ref: 2
E RING
€ 4.50
3
1341744B00
ref: 3
SPRING
€ 6.00
4-1
1350201D00
ref: 4-1
COVER,DIAPHRAGM
€ 36.00
4-2
1350245B10
ref: 4-2
E18
COVER,DIAPHRAGM
€ 29.00
5
1355144B10
ref: 5
VALVE PISTON
€ 74.50
6
1350744B00
ref: 6
DIAPHRAGM
€ 29.00
7
1338747010
ref: 7
RING
€ 7.50
8
1324713A00
ref: 8
SCREW,DRAIN
€ 5.50
9
0211205127
ref: 9
<-13602-05128
SCREW
€ 2.50
10
1325844B00
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
11
1324017E10
ref: 11
FLOAT ASSY
€ 40.00
12
1337446710
ref: 12
O RING
€ 4.50
13-1
0949400640
ref: 13-1
JET,NEEDLE (O-3)
€ 40.00
13-2
0949400723
ref: 13-2
E18
JET,NEEDLE(O-7)
€ 32.50
13-3
0949400673
ref: 13-3
E22,E24
JET,NEEDLE(O-5)
€ 34.00
14-1
0949127009
ref: 14-1
JET,MAIN(135)
€ 10.50
14-2
0949126012
ref: 14-2
E18
JET,MAIN(132.5)
€ 11.50
14-3
0949125011
ref: 14-3
E22,E24
JET,MAIN(127.5)
€ 10.00
15
1338314D10
ref: 15
NEEDLE,JET
€ 13.50
16
1337044B00
ref: 16
VALVE ASSEMBLY,NEEDLE
€ 46.50
17
1337444080
ref: 17
O-RING,NEEDLE VALVE
€ 6.00
18
1326715E00
ref: 18
ADJUSTER
€ 42.50
19
1326831210
ref: 19
SPRING,THROTTLE SCREW
€ 4.00
20
1361543010
ref: 20
WASHER,STARTER SHAFT
€ 2.50
21
1341114E00
ref: 21
<-13441-14E00
PLUNGER ASSEMBLY
€ 51.00
22
1360234390
ref: 22
SCREW
€ 2.50
23-1
0949242010
ref: 23-1
JET,PILOT(42.5)
€ 8.50
23-2
0949235010
ref: 23-2
E18,E22,E24
JET,PILOT(37.5)
€ 10.50
24
0940110410
ref: 24
<-13671-48B10
CLIP
€ 1.50
25-1
1327947070
ref: 25-1
SCREW,PILOT
€ 11.50
25-2
1327947070
ref: 25-2
E18
SCREW,PILOT
€ 11.50
26
1326847070
ref: 26
SPRING
€ 5.00
27
1329129900
ref: 27
WASHER
€ 2.00
28
1329529900
ref: 28
O RING,PILOT AIR SCREW
€ 4.00
29
1324732210
ref: 29
SCREW,GUIDE
€ 13.00
30
1324941310
ref: 30
O RING,DRAIN PLUG
€ 5.00
31-1
0949326004
ref: 31-1
JET,AIR(1.3)
€ 14.50
31-2
0949324007
ref: 31-2
E22,E24
JET,AIR(1.2)
€ 13.50
32
0949360004
ref: 32
JET,AIR(0.6)
€ 11.00
33
0935230503600
ref: 33
L:600->200 <-13684-1
HOSE(3X5X600)
€ 8.00
34
1367115D60
ref: 34
CLIP
€ 12.00
35
0211205087
ref: 35
SCREW
€ 2.00
36
0935470113600
ref: 36
L:600->200 <-13684-1
HOSE(7X11X600)
€ 17.50
37
0935250823600
ref: 37
L:600->250 <-13683-3
HOSE(5X8.2X600)
€ 13.00
38
1367114E00
ref: 38
CLIP
€ 0.00
39
0940406402
ref: 39
CLAMP
€ 2.50
