MUFFLER
DR350SE 1998 (X)

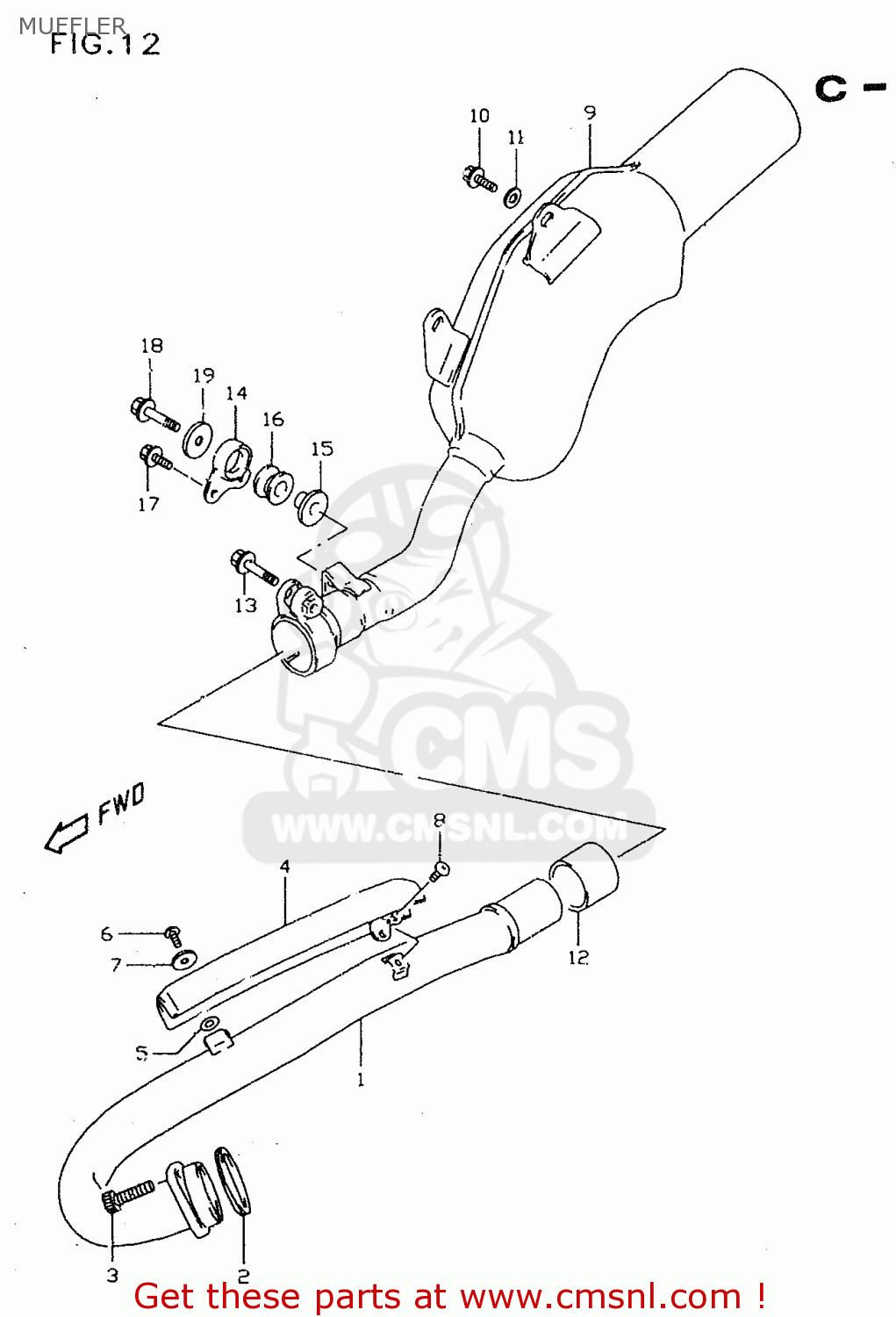

Muffler diagram DR350SE 1998 (X)
MUFFLER DR350SE 1998 (X)
×
prices are in EUR
ref
part #
description
quantity
1-1
1415014D20
ref: 1-1
MODEL R/S
PIPE,EXHAUST
€ 239.50
1-2
1415014E00
ref: 1-2
MODEL T/V/W
PIPE,EXHAUST
€ 143.00
2
1418140C00
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 6.50
3
0713008253
ref: 3
BOLT
€ 3.50
4
1418014D10
ref: 4
COVER,EXHAUST PIPE
€ 57.00
5
0916806120
ref: 5
GASKET(5.8X13X1.4) (NAS)
€ 2.00
6
0913906076
ref: 6
SCREW(6X10)
€ 2.50
7
0916006056
ref: 7
WASHER(6.5X18X1)
€ 2.00
8
0214205083
ref: 8
SCREW
€ 2.00
9-1
1431014D65
ref: 9-1
MODEL R/S
BODY,MUFFLER
€ 558.50
9-2
1431014E00
ref: 9-2
MODEL T/V/W
BODY,MUFFLER
€ 610.50
9-3
1431014D65
ref: 9-3
MODEL T/V/W E18,E24,
BODY,MUFFLER
€ 558.50
10
0910308286
ref: 10
BOLT(8X20)
€ 3.50
11
0916008053
ref: 11
WASHER (8.5X19X2.3)
€ 2.00
12-1
1477114D00
ref: 12-1
MODEL R/S
CONNECTOR,MUFFLER JOINT
€ 19.50
12-2
1477113E00
ref: 12-2
MODEL T/V/W
CONNECTOR,MUFFLER
€ 12.00
13
0155008353
ref: 13
BOLT
€ 3.50
14
1477014D01
ref: 14
DAMPER,MUFFLER SUPPORT JOINT
€ 15.00
15
0918008151
ref: 15
SPACER(8.6X12X17.5)
€ 6.00
16
0932012043
ref: 16
CUSHION
€ 8.00
17-1
0910306149
ref: 17-1
MODEL R/S
BOLT
€ 2.50
17-2
0910306083
ref: 17-2
MODEL T/V/W
BOLT 6X12
€ 2.50
18-1
0910308287
ref: 18-1
MODEL R/S
BOLT(8X35)
€ 2.00
18-2
0910308197
ref: 18-2
MODEL T/V/W
BOLT(8X30)
€ 2.00
18-3
0910308287
ref: 18-3
MODEL T E18,E24,E94
BOLT(8X35)
€ 2.00
19-1
0916008057
ref: 19-1
MODEL R/S/T/V
WASHER (8.5X20X1.6)
€ 2.00
19-2
0916008135
ref: 19-2
MODEL W
WASHER(8.5X28X1.6)
€ 2.00
