CYLINDER

DR350SE 1998 (X)

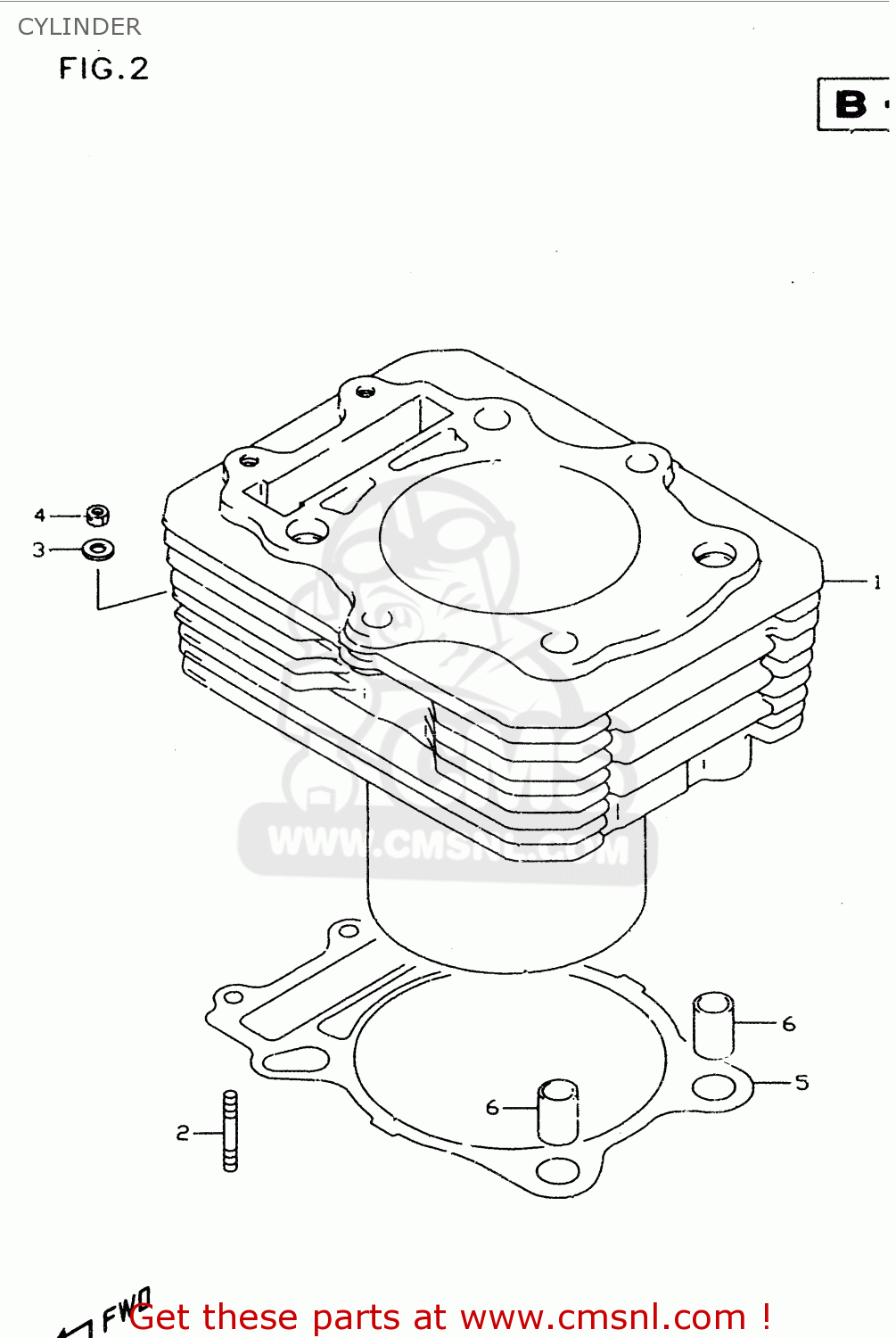

Cylinder diagram DR350SE 1998 (X)

CYLINDER DR350SE 1998 (X)

CYLINDER DR350SE 1998 (X)

prices are in EUR

ref

part #

description

quantity

1

1121047D000F0
ref: 1

CYLINDER

€ 554.50

2

0142106208
ref: 2

STUD 6X20

€ 2.50

3

0832201063
ref: 3

WASHER

€ 2.00

4

0914006502
ref: 4

NUT

€ 3.00

5

1124114D01
ref: 5

GASKET,CYLINDER (NAS)

€ 12.00

6

0421113189
ref: 6

PIN

€ 2.50
