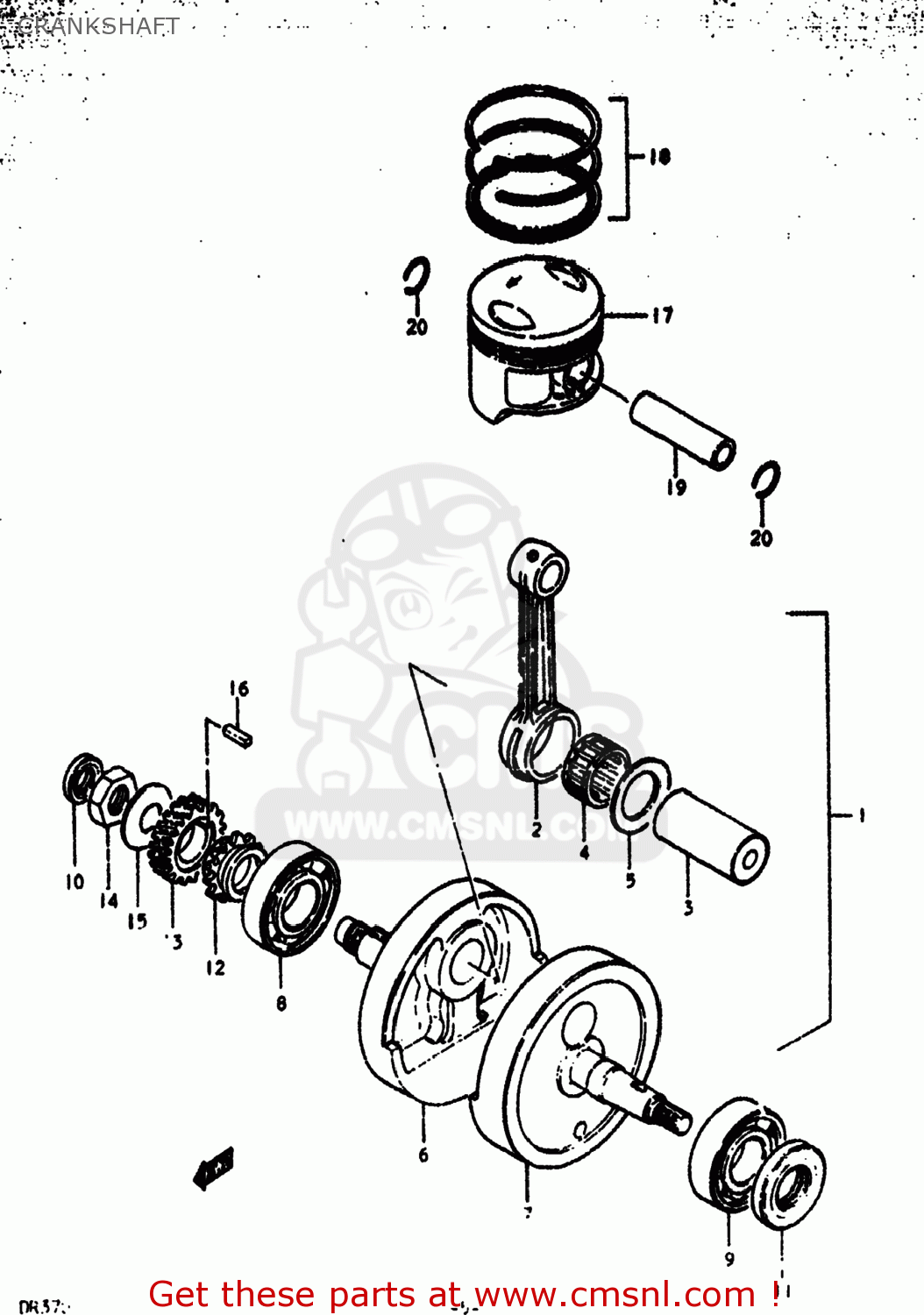

CRANKSHAFT

ref

part #

description

quantity

1

1220032400
ref: 1

CRANKSHAFT ASSEMBLY

€ 571.50

2

1216132402
ref: 2

ROD,CONNECTING

€ 104.50

3

1221132402
ref: 3

PIN,CRANK

€ 0.00

4

0926332004
ref: 4

BEARING

€ 37.50

5

0916032003
ref: 5

WASHER (32X50X1)

€ 4.00

6

1222132402
ref: 6

CRANKSHAFT

€ 0.00

7

1226132402
ref: 7

CRANKSHAFT,LEFT

€ 0.00

8

0926230043
ref: 8
09262-30076

BALL BEARING 30X72X19

€ 36.50

9

0811363060
ref: 9
09262-30077

BEARING

€ 47.50

10

0928216002
ref: 10

SEAL,OIL(16X30X6)

€ 8.50

11

0928330024
ref: 11

SEAL,OIL(30X58X7)

€ 28.00

12

1273132400
ref: 12

SPROCKET,CAM CHAIN DRIVE

€ 25.00

13

2111132401
ref: 13

GEAR,PRIMARY DRIVE

€ 37.00

14

0914020008
ref: 14
09140-20013

NUT (20MM)

€ 4.00

15

0916420003
ref: 15

WASHER

€ 2.50

16

0942107001
ref: 16

KEY

€ 2.50

17-1

1211132400
ref: 17-1

PISTON STD. (85MM)

€ 149.50

17-2

1211132400050
ref: 17-2
12103-32810-050

PISTON

€ 145.00

17-3

1211132400100
ref: 17-3

PISTON

€ 205.00

18-1

1214032401
ref: 18-1

RING SET,PISTON

€ 86.50

18-2

1214032401050
ref: 18-2

RING SET,PISTON

€ 111.50

18-3

1214032401100
ref: 18-3

RING SET,PISTON (OS:1.0)

€ 88.00

19

1215132400
ref: 19

PIN,PISTON

€ 41.50

20

0938120001
ref: 20
09381-20004

CIRCLIP

€ 2.00
