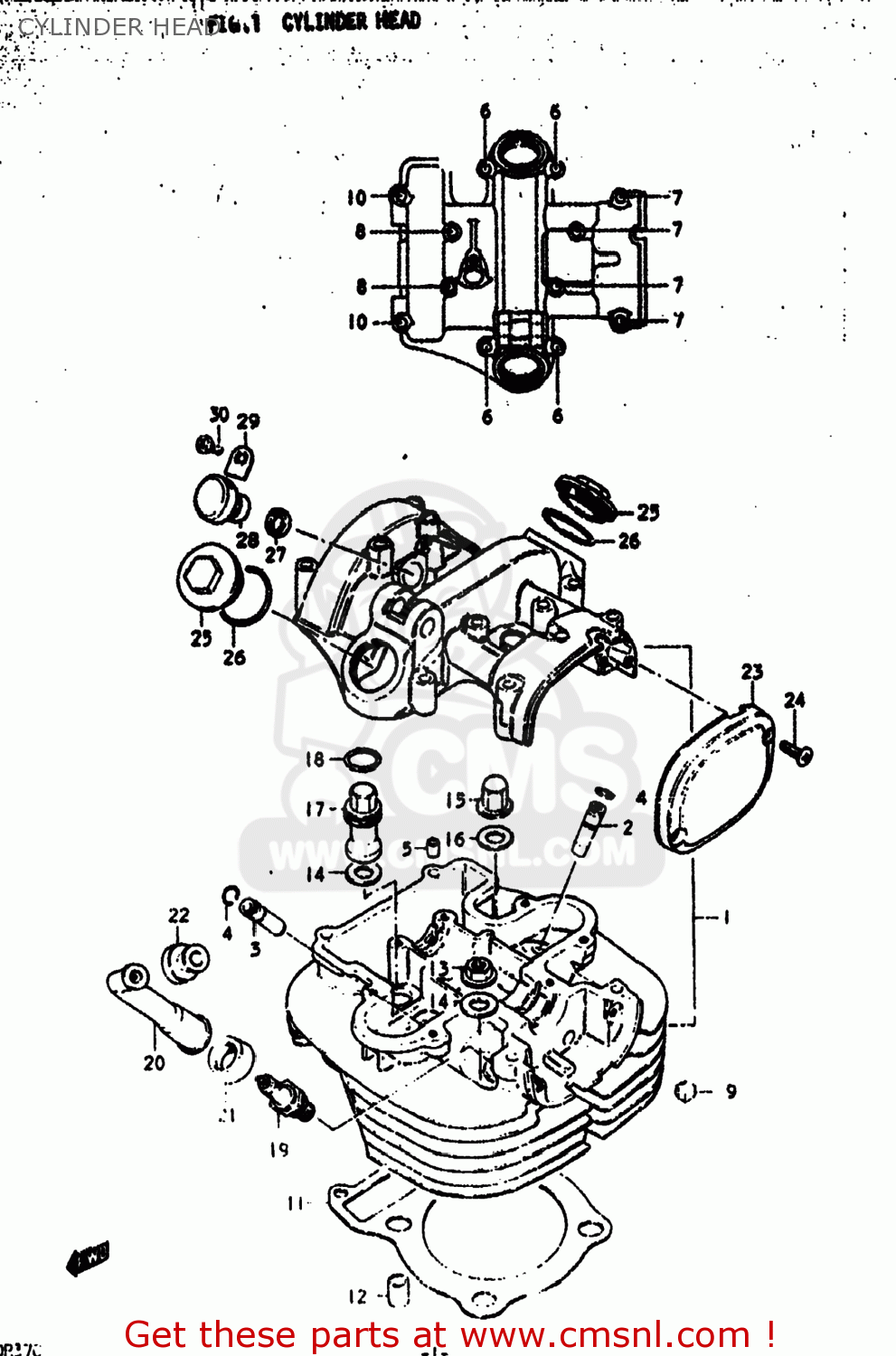

CYLINDER HEAD

ref

part #

description

quantity

1

1110032810
ref: 1
11100-32811

HEAD ASSEMBLY,CYLINDER

€ 359.00

2

1111545722
ref: 2
11115-45740

GUIDE,VALVE

€ 25.50

3

1111645722
ref: 3
11116-45740

GUIDE,VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0151706358
ref: 6
01550-06357

BOLT 6X35

€ 2.50

7

0151706508
ref: 7
01550-06507

BOLT ,6X50

€ 2.00

8

0151706658
ref: 8
01550-06657

BOLT 6X65

€ 3.00

9-1

1115245000
ref: 9-1
11152-38A00

PAD

€ 3.50

9-2

1125228000
ref: 9-2
11252-13630

PAD,CYLINDER

€ 2.00

10

0910306028
ref: 10

BOLT

€ 0.00

11-1

1114132400
ref: 11-1
11141-37101

GASKET,CYLINDER HEAD (NAS)

€ 65.00

11-2

1114132990
ref: 11-2
11141-37101

GASKET,CYLINDER HEAD (NAS)

€ 65.00

12

0920613001
ref: 12
04211-13189

PIN

€ 2.50

13-1

0915910022
ref: 13-1
08316-10107

NUT

€ 2.00

13-2

0831616108
ref: 13-2
08316-10107

NUT

€ 2.00

14

0916010039
ref: 14

WASHER(10.5X22X2.3)

€ 2.50

15-1

0915910023
ref: 15-1
09159-10026

NUT

€ 6.00

15-2

0915910026
ref: 15-2

NUT

€ 6.00

16

0916810017
ref: 16

GASKET(10.5X22X2) (NAS)

€ 3.50

17

1114532400
ref: 17

NUT,CYLINDER HEAD SEAL

€ 16.50

18

0928018004
ref: 18

O RING(D:2.4,ID:17.8)

€ 5.50

19-1

0948200144
ref: 19-1

SPARK PLUG D8EA

€ 3.50

19-2

0948200145
ref: 19-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

20

3351045010
ref: 20

CAP ASSY,SPARK PLUG

€ 23.00

21

3354132410
ref: 21
33541-38210

SEAL,SPARK PLUG

€ 7.00

22

3354298000
ref: 22
33542-38B00

SEAL,SPARK PLU

€ 4.50

23

1117432400
ref: 23

CAP,CONTACT BREAKER

€ 15.50

24

0213205168
ref: 24
02122-05167

SCREW

€ 2.00

25

1117532400
ref: 25
11175-42A00

CAP,INSPECTION

€ 9.50

26

0928030001
ref: 26

O RING(D:3,ID:29.5)

€ 2.00

27

2645145000A
ref: 27

SEAL,TACHOMETER DRIVEN

€ 4.50

28

2644245000
ref: 28

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

29

2644933000
ref: 29

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

30

0912805101
ref: 30

SCREW(5X12)

€ 1.50
