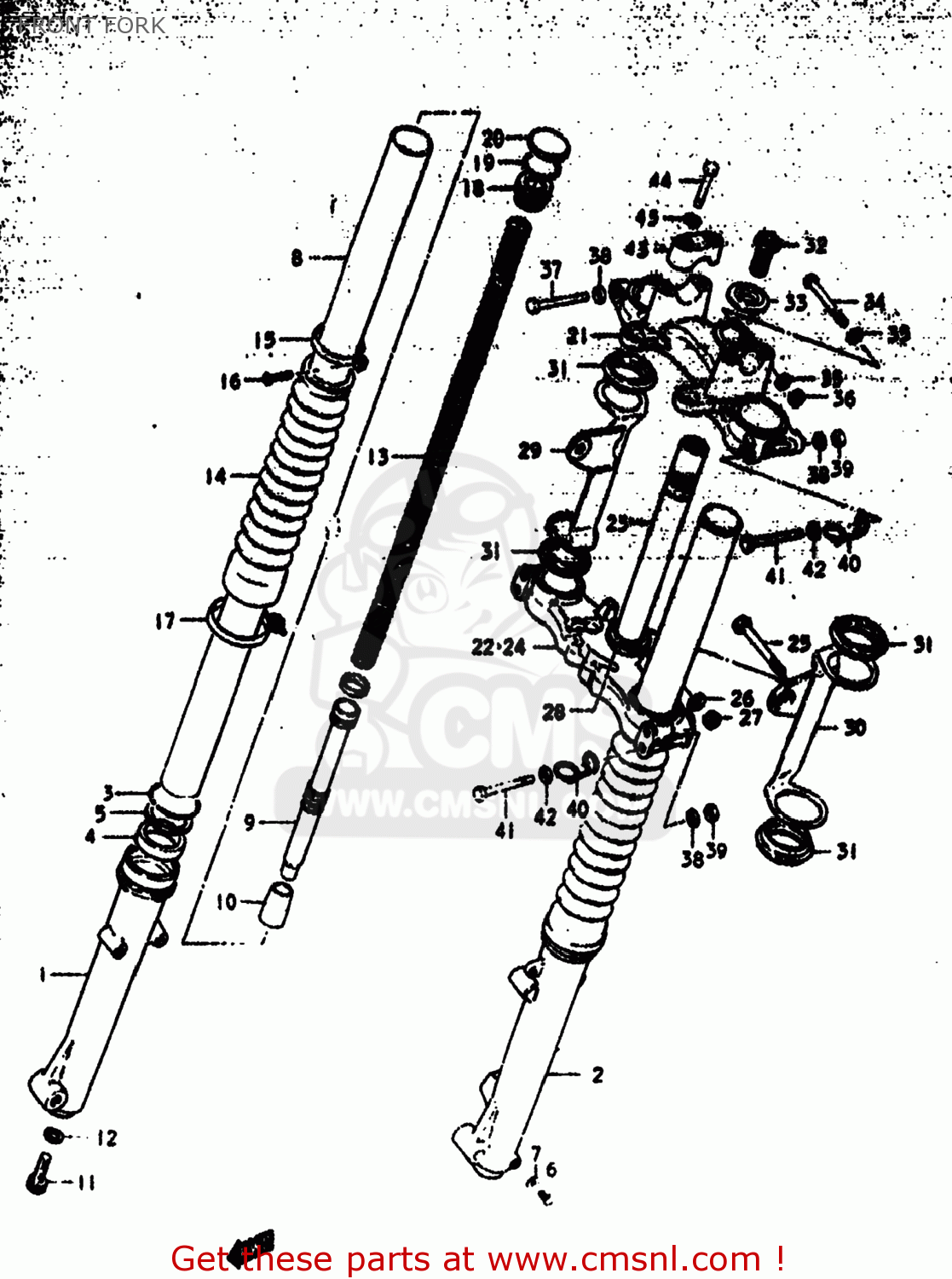

FRONT FORK

ref

part #

description

quantity

0-1

5110032500291
ref: 0-1

DAMPER SET

€ 0.00

0-2

5110332500
ref: 0-2
51103-32501

DAMPER ASSEMBLY,RIGHT

€ 122.00

0-3

5110332501
ref: 0-3

DAMPER ASSEMBLY,RIGHT

€ 122.00

0-4

5110432500
ref: 0-4
51104-32501

DAMPER ASSEMBLY,LEFT

€ 90.50

0-5

5110432501
ref: 0-5

DAMPER ASSEMBLY,LEFT

€ 90.50

1-1

5113032500291
ref: 1-1
51130-32501-291

TUBE,OUTER,RIGHT

€ 61.50

1-2

5113032501291
ref: 1-2

TUBE,OUTER,RIGHT

€ 61.50

2-1

5114032500291
ref: 2-1
51140-32501-291

TUBE,OUTER,LEFT

€ 83.50

2-2

5114032501291
ref: 2-2

TUBE,OUTER,LEFT

€ 83.50

3

5115632110
ref: 3

CIRCLIP,FORK OIL SEAL

€ 6.00

4-1

5115341110
ref: 4-1
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

4-2

5115341211
ref: 4-2
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

5

5115832110
ref: 5

RING,FORK BACK UP

€ 3.00

6

0211104087
ref: 6
02112-04087

SCREW

€ 1.50

7

5118303010
ref: 7

GASKET,DRAIN,PLUG (NAS)

€ 3.00

8

5111032400
ref: 8

TUBE,FORK,INNER

€ 120.50

9

5114632400
ref: 9

CYLINDER,FRONT FORK

€ 0.00

10

5119541210
ref: 10
51195-49071

PIECE,OIL LOCK

€ 12.00

11

5114716510
ref: 11

BOLT,FORK CYLINDER(10X25)

€ 3.50

12

5114841310
ref: 12

GASKET (NAS)

€ 2.50

13

5117132400
ref: 13

SPRING

€ 0.00

14

5157132500
ref: 14
51571-37448-019

BOOT

€ 33.50

15

5157541410
ref: 15

BAND,BOOT

€ 8.00

16

0211204168
ref: 16
02112-0416A

SCREW

€ 1.00

17

5157341410
ref: 17

BAND,FRONT FORK COVER

€ 10.00

18

5135130520
ref: 18

CAP,FORK INNER TUBE

€ 9.00

19

5111716310
ref: 19

O RING

€ 4.50

20

5118932400
ref: 20
51189-30520

CAP,FRONT FORK

€ 11.50

21

5131132400
ref: 21

HEAD,STEERING STEM

€ 0.00

22

5141132400
ref: 22

STEM,STEERING

€ 129.00

23

5140132400A
ref: 23

STEM,STEERING

€ 0.00

24

5141032500
ref: 24
51410-32460

STEM,STEERING

€ 0.00

25

0110710608
ref: 25
01500-1060A

BOLT 10X60

€ 3.50

26

0832121108
ref: 26
08321-01107

LOCK WASHER

€ 2.00

27

0831022108
ref: 27
08310-00107

NUT

€ 2.50

28

5162133001
ref: 28

RACE,STEERING OUTER LWR

€ 10.00

29-1

5153032500291
ref: 29-1

BRACKET,HEADLAMP,RIGHT

€ 12.00

29-2

5153032510291
ref: 29-2

BRACKET,HEADLAMP,RIGHT

€ 12.00

30-1

5154032500291
ref: 30-1

BRACKET,HEADLAMP,LEFT

€ 12.00

30-2

5154032510291
ref: 30-2

BRACKET,HEADLAMP,LEFT

€ 12.00

31

5155341410
ref: 31

CUSHION,HEADLAMP BRACKET

€ 5.50

32

5135141310
ref: 32

BOLT,STEERING STEM HEAD

€ 10.50

33

5135641310
ref: 33

WASHER

€ 6.00

34

0110708558
ref: 34
01500-08557

BOLT 8X55

€ 3.00

35

0832221088
ref: 35
08322-01087

WASHER

€ 2.00

36

0831022088
ref: 36
08310-00087

NUT 8MM

€ 2.00

37

0110708558
ref: 37
01500-08557

BOLT 8X55

€ 3.00

38

0832221088
ref: 38
08322-01087

WASHER

€ 2.00

39

0831022088
ref: 39
08310-00087

NUT 8MM

€ 2.00

40

5145532400
ref: 40
51455-29330

GUIDE,CABLE

€ 5.50

41

0110708608
ref: 41
01500-0860B

BOLT

€ 2.50

42

0832221088
ref: 42
08322-01087

WASHER

€ 2.00

43

5621127110291
ref: 43
56211-27200-291

HOLDER,HANDLEBAR

€ 13.50

44

0110708358
ref: 44
01500-0835B

BOLT

€ 3.50

45

0832121088
ref: 45
08321-01087

LOCK WASHER

€ 2.00

all assemblies
