METER VISOR (DR500RG/RH)
DR500R 1986 (G)

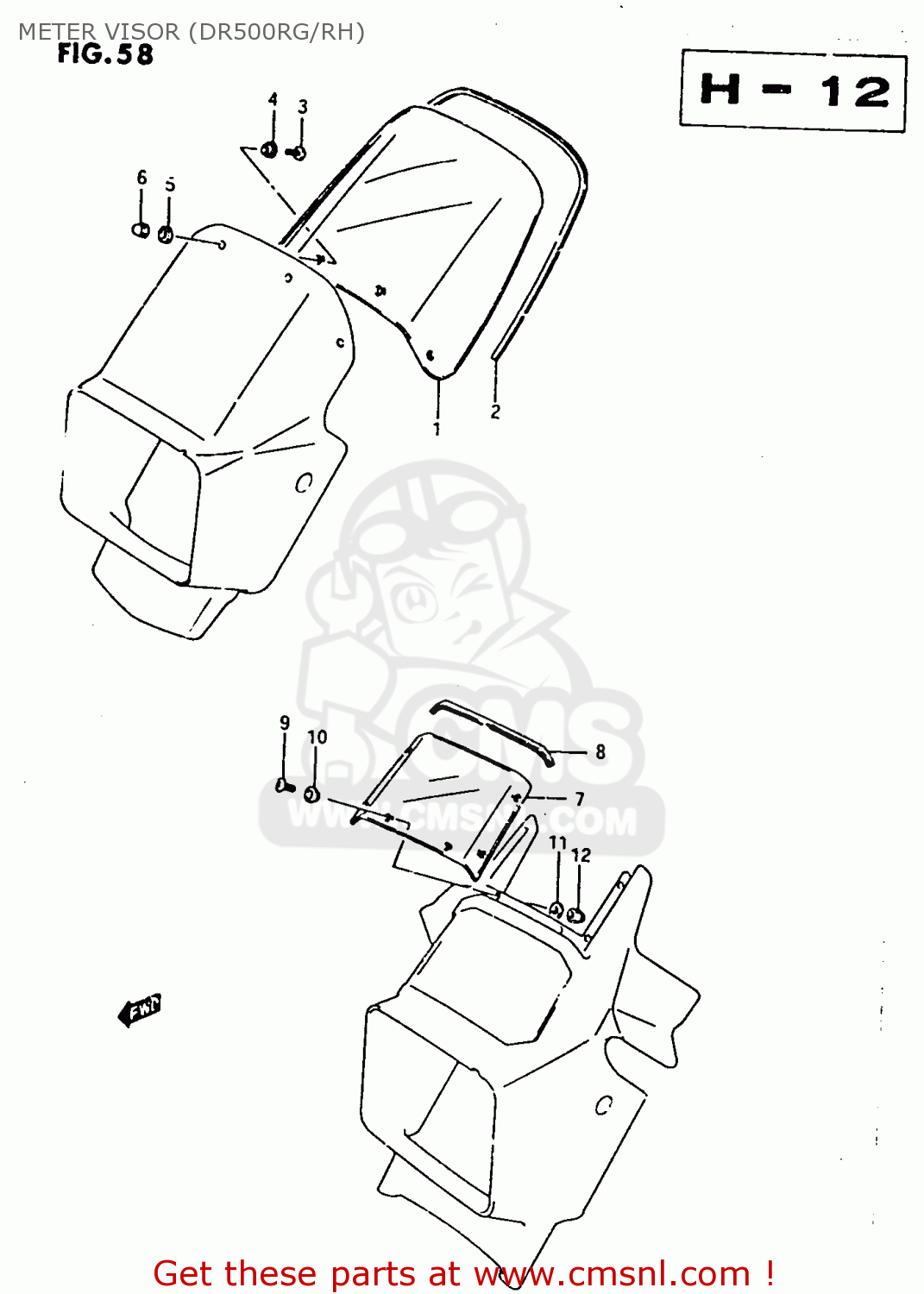

Meter visor (dr500rg/rh) diagram DR500R 1986 (G)
METER VISOR (DR500RG/RH) DR500R 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1
9461114A00
ref: 1
DR500RG
VISOR, METER
€ 143.00
2
9463114A00
ref: 2
DR500RG
MOLDING (L:545)
€ 15.00
3
0214205104
ref: 3
DR500RG
SCREW 5X10
€ 2.50
4
0932005008
ref: 4
DR500RG
CUSHION
€ 5.00
5
0832221055
ref: 5
DR500RG
WASHER,5MM
€ 2.50
6
0831311055
ref: 6
DR500RG
NUT
€ 2.00
7
9461115A00
ref: 7
DR500RH
VISOR, METER
€ 94.00
8
9463115A00
ref: 8
DR500RH
MOLDING
€ 15.00
9
0214205104
ref: 9
DR500RH
SCREW 5X10
€ 2.50
10
0932005008
ref: 10
DR500RH
CUSHION
€ 5.00
11
0832221055
ref: 11
DR500RH
WASHER,5MM
€ 2.50
12
0831311055
ref: 12
DR500RH
NUT
€ 2.00
