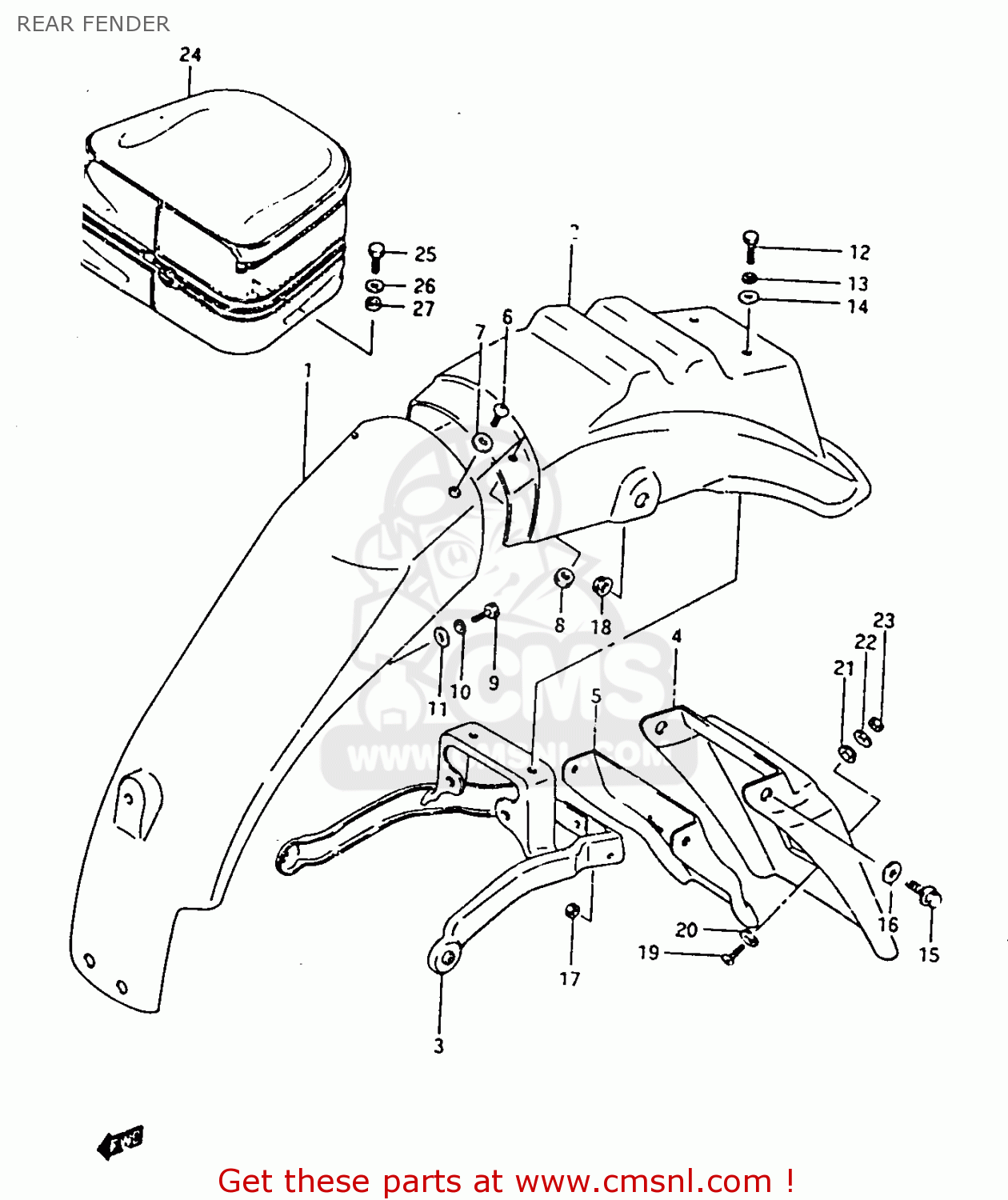

REAR FENDER

ref

part #

description

quantity

1

6311214A00
ref: 1

BODY,REAR FENDER,FRONT

€ 25.00

2-1

6311314A0014C
ref: 2-1
MODEL G

FENDER,REAR

€ 89.50

2-2

6311314A0010V
ref: 2-2
MODEL G

BODY, REAR (WHITE)

€ 89.50

2-3

6311314A0019F
ref: 2-3
MODEL G

BODY, REAR (BLUE)

€ 89.50

2-4

6311314A0021C
ref: 2-4
MODEL G/H/J

BODY, REAR (BLACK)

€ 89.50

2-5

6311314A0014L
ref: 2-5
MODEL H/J

BODY, REAR (WHITE)

€ 89.50

2-6

6311314A0034S
ref: 2-6
MODEL H/J

BODY, REAR (BLUE)

€ 89.50

3

6312014A00
ref: 3

REINFORCEMENT,REAR FENDER

€ 41.50

4

6331114A00
ref: 4

EXTENSION,REAR FENDER

€ 27.00

5

6313114A00
ref: 5

REINFORCEMENT,REAR FENDER EXTENSION

€ 14.00

6

0214205124
ref: 6

SCREW, FRONT & REAR

€ 1.50

7

0916005031
ref: 7

WASHER

€ 1.50

8

0831921055
ref: 8

NUT 8MM

€ 1.50

9

0110706165
ref: 9

BOLT 6X16

€ 2.00

10

0832121064
ref: 10

WASHER,LOCK

€ 2.00

11

0916906026
ref: 11

WASHER

€ 2.00

12

0110706205
ref: 12

BOLT

€ 2.00

13

0832121064
ref: 13

WASHER,LOCK

€ 2.00

14

0832221064
ref: 14

WASHER

€ 2.00

15

0151706205
ref: 15

BOLT

€ 2.50

16

0916906026
ref: 16

WASHER

€ 2.00

17

0831931065
ref: 17

NUT

€ 2.50

18

0831931085
ref: 18

NUT

€ 2.50

19

0214206125
ref: 19

SCREW 6X12

€ 2.00

20

0916006020
ref: 20

WASHER

€ 2.00

21

0916906041
ref: 21

WASHER

€ 2.00

22

0916006069
ref: 22

WASHER

€ 2.00

23

0831022065
ref: 23

NUT

€ 1.50

24-1

9490014A009LS
ref: 24-1
DR500RG

BAG ASSY, SEAT TAIL (BLUE/WHITE)

€ 151.00

24-2

9490014A009DO
ref: 24-2
DR500SH

BAG ASSY, SEAT TAIL (BLUE/WHITE)

€ 0.00

24-3

9490014A009MC
ref: 24-3
DR500SH

BAG ASSY, SEAT TAIL (BLACK/WHITE)

€ 0.00

24-4

9490014A009LL
ref: 24-4
DR500RH

BAG ASSY, SEAT TAIL (GRAY/BLUE)

€ 151.00

25

0110706166
ref: 25
DR500RG/SH/RH

BOLT

€ 2.00

26

0916006007
ref: 26
DR500RG/SH/RH

WASHER

€ 2.00

27

0918006073
ref: 27
DR500RG/SH/RH

SPACER

€ 2.00

all assemblies
