STAND - REAR BRAKE
DR500R 1986 (G)

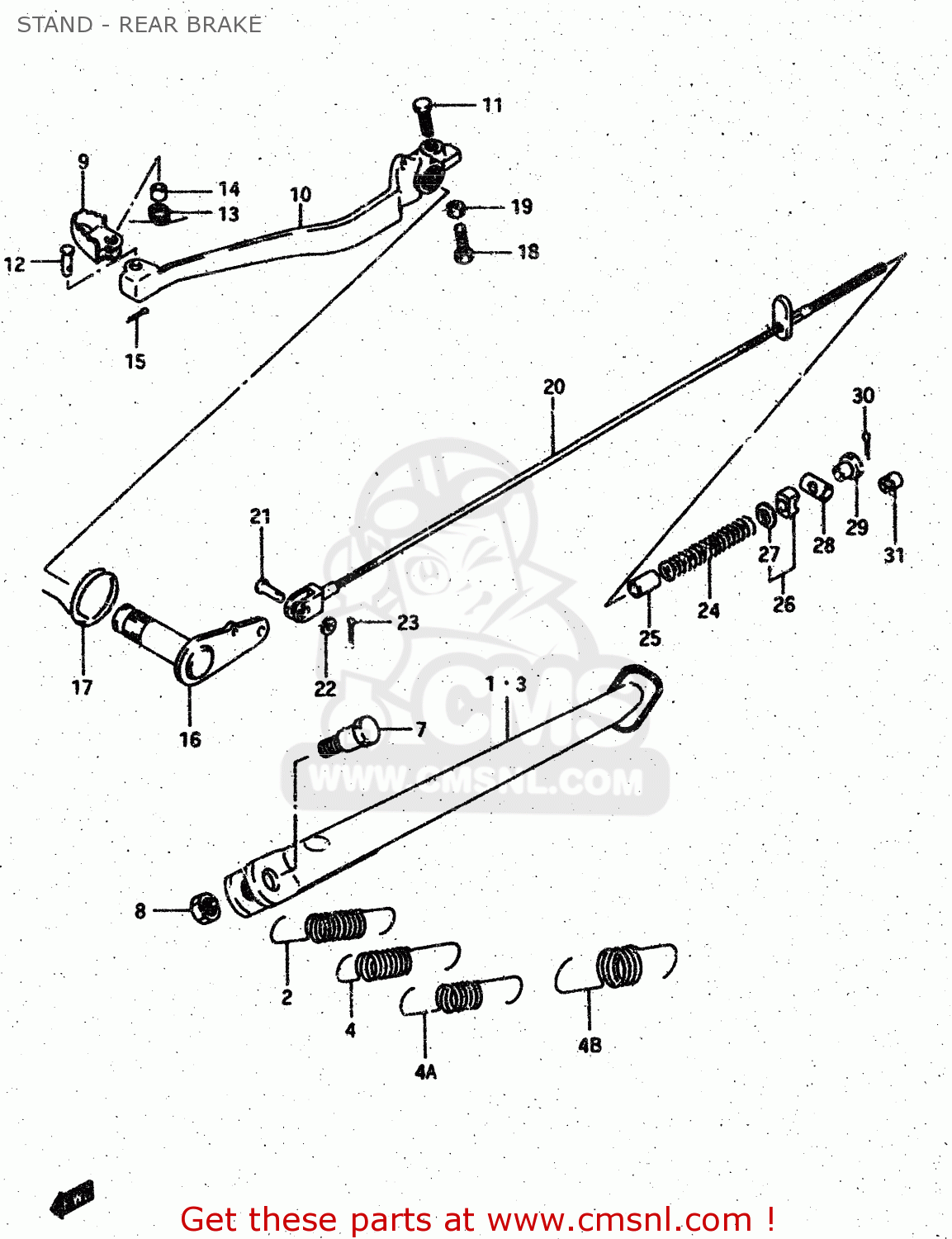

Stand - rear brake diagram DR500R 1986 (G)
STAND - REAR BRAKE DR500R 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231014A00019
ref: 1-1
DR500SG FOR 14C,19F
STAND,SIDE
€ 64.50
1-2
4231014A0019F
ref: 1-2
DR500SG FOR 10V,21C
STAND, PROP (BLUE)
€ 64.50
1-3
4231014A0010V
ref: 1-3
DR500RG
STAND, PROP (WHITE)
€ 64.50
2
0944315015
ref: 2
DR500SG/RG
SPRING
€ 5.50
3-1
4231014A10019
ref: 3-1
DR500SH FOR 34S
STAND, PROP (BLACK)
€ 43.00
3-2
4231014A2001S
ref: 3-2
DR500SJ FOR 34S
STAND, PROP (BLACK)
€ 0.00
3-3
4231014A1034S
ref: 3-3
DR500SH FOR 14L,21C
STAND, PROP (BLUE)
€ 43.00
3-4
4231014A2034S
ref: 3-4
DR500SJ FOR 14L,21C
STAND, PROP (BLUE)
€ 662.50
4
0944318015
ref: 4
DR500SH
SPRING
€ 5.50
4A
0944314030
ref: 4A
DR500SJ
SPRING
€ 6.00
4B
0944322003
ref: 4B
DR500SJ
SPRING
€ 7.00
5-1
0911110019
ref: 5-1
DR500SG/SH
BOLT L:30
€ 4.50
5-2
0911110026
ref: 5-2
DR500RG
BOLT
€ 0.00
5-3
0911110038
ref: 5-3
DR500RH/DR500SJ
BOLT L:30
€ 4.50
6
0831022107
ref: 6
NUT
€ 2.50
7
4311014130
ref: 7
PEDAL,BRAKE
€ 6.00
8
4312014A00
ref: 8
ARM,BRAKE PEDAL
€ 41.50
9
0110706205
ref: 9
BOLT
€ 2.00
10
0920006038
ref: 10
PIN
€ 2.00
11
0944411004
ref: 11
SPRING
€ 3.00
12
0918006137
ref: 12
SPACER(9.2X9X6.5)
€ 2.50
13
0411120158
ref: 13
PIN
€ 1.50
14
4313014A00
ref: 14
ARM,BRAKE PEDAL ROD
€ 27.00
15
0944825005
ref: 15
SPRING
€ 3.50
16
0910006D09
ref: 16
BOLT (6X27)
€ 0.00
17
0831011067
ref: 17
NUT 6MM
€ 2.50
18
5851014A00
ref: 18
CABLE,RR BRAKE
€ 13.00
19
0920005001
ref: 19
PIN(L:17.5)
€ 1.50
20
0832221066
ref: 20
WASHER, LOWER
€ 2.00
21
0411120158
ref: 21
PIN
€ 1.50
22
0944011012
ref: 22
SPRING
€ 3.00
23
6115579000
ref: 23
CUSHION,FR GRILLE,UPPER
€ 13.00
24
4337037300
ref: 24
CUSHION
€ 5.50
25
0916906010
ref: 25
WASHER
€ 3.00
26
4338037200
ref: 26
PIN,BRAKE CABLE ADJUSTER
€ 16.00
27
0915006009
ref: 27
NUT (6MM)
€ 3.50
28
0411120158
ref: 28
PIN
€ 1.50
