RIGHT HANDLE SWITCH

DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53

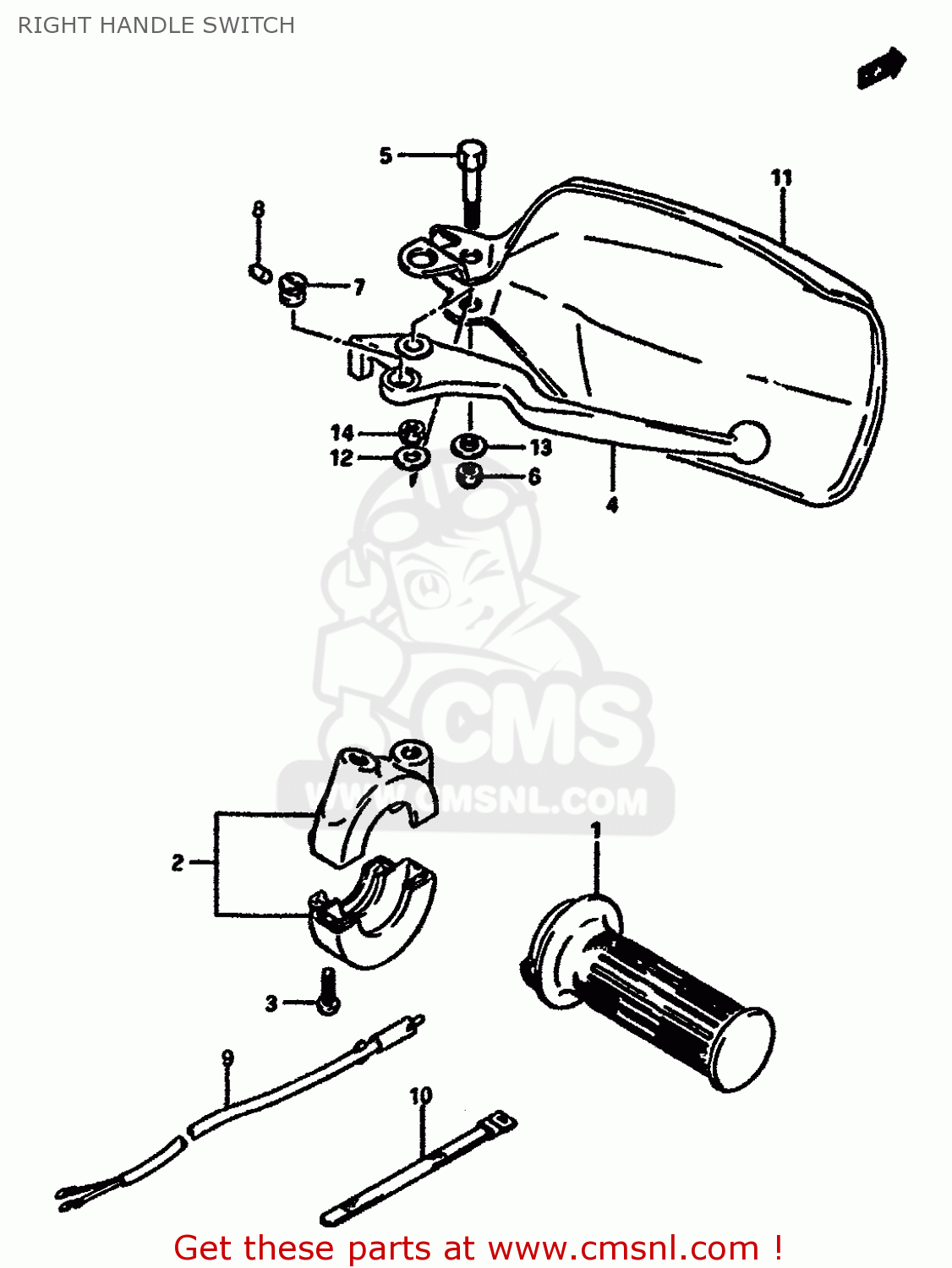

Right handle switch diagram DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

5711037200
ref: 1

GRIP,THROTTLE

€ 20.50

5710037230
ref: 2

CASE ASSY,THROTTLE

€ 47.50

0211205208
ref: 3

SCREW 5X20

€ 3.00

5742113A10
ref: 4

LEVER,BRAKE

€ 19.50

5743114A00
ref: 5

BOLT,LEVER PIVOT

€ 6.50

0831921065
ref: 6

NUT

€ 2.50

5744313A00
ref: 7

ADJUSTER

€ 8.00

5744413A00
ref: 8

ROD,PUSH

€ 6.50

5746013001
ref: 9

SWITCH ASSY,STOP

€ 18.00

0940712402
ref: 10

CLAMP(L:120)

€ 3.00

11-1

5734114A0021C
ref: 11-1

COVER,KNUCKLE,

€ 10.00

11-2

5734114A0010V
ref: 11-2
MODEL F/G

COVER,KNUCKLE,R

€ 18.50

11-3

5734114A0019F
ref: 11-3
MODEL F/G

GUARD,KNUCKLE

€ 18.50

11-4

5734114A0014C
ref: 11-4
MODEL F/G

COVER,KNUCKLE,RIGHT

€ 20.00

11-5

5734114A0014L
ref: 11-5
MODEL H/J

COVER,KNUCKLE,R

€ 14.50

11-6

5734114A0034S
ref: 11-6
MODEL H/J/K

GUARD, KNUCKLE RH (BLUE)

€ 23.00

11-7

5734114A0030H
ref: 11-7
MODEL K

GUARD,KNUCKLE RH (WHITE)

€ 18.50

0916006019
ref: 12

WASHER(6.5X16X1.2)

€ 1.50

0916906033
ref: 13

WASHER

€ 1.50

0831921068
ref: 14

NUT 6MM

€ 2.00
