RIGHT HANDLE SWITCH (MODEL H/J/K E18)

DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53

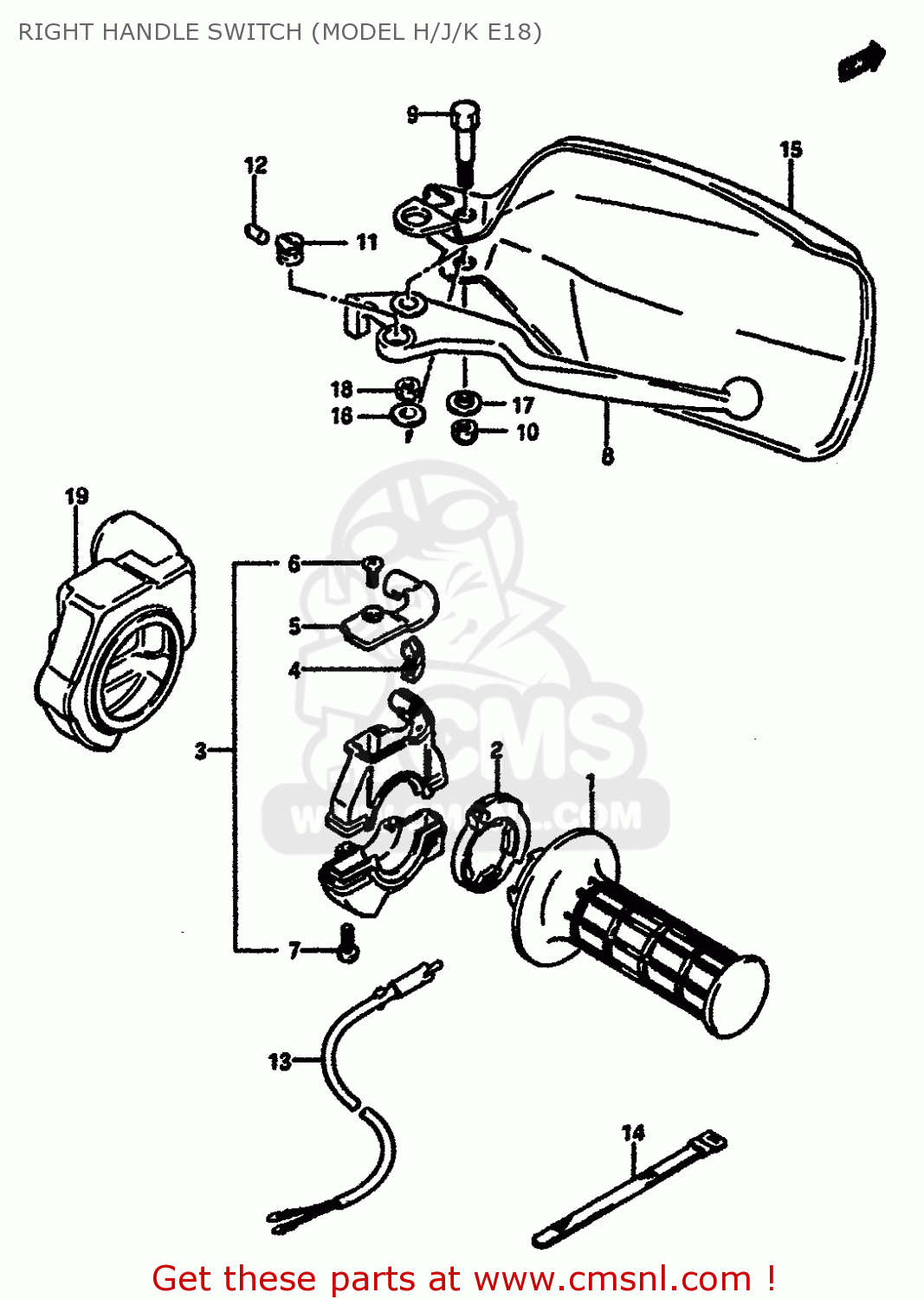

Right handle switch (model h/j/k e18) diagram DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

5711014300
ref: 1

GRIP,THROTTLE

€ 25.00

5711420410
ref: 2

ROTOR,THROTTLE GRIP

€ 6.00

5710020411
ref: 3

CASE ASSY,THROTTLE

€ 53.50

5712220410
ref: 4

GUIDE PIECE,THROTTLE

€ 4.50

5712920411
ref: 5

COVER,THROTTLE CASE

€ 8.50

0213204065
ref: 6

SCREW

€ 2.50

0211205168
ref: 7

SCREW

€ 2.50

5742113A10
ref: 8

LEVER,BRAKE

€ 19.50

5743114A00
ref: 9

BOLT,LEVER PIVOT

€ 6.50

0831921065
ref: 10

NUT

€ 2.50

5744313A00
ref: 11

ADJUSTER

€ 8.00

5744413A00
ref: 12

ROD,PUSH

€ 6.50

5746013001
ref: 13

SWITCH ASSY,STOP

€ 18.00

0940712402
ref: 14

CLAMP(L:120)

€ 3.00

15-1

5734114A0021C
ref: 15-1
MODEL H/J/K

COVER,KNUCKLE,

€ 10.00

15-2

5734114A0014L
ref: 15-2
MODEL H/J

COVER,KNUCKLE,R

€ 14.50

15-3

5734114A0034S
ref: 15-3
MODEL H/J/K

GUARD, KNUCKLE RH (BLUE)

€ 23.00

15-4

5734114A0030H
ref: 15-4
MODEL K

GUARD,KNUCKLE RH (WHITE)

€ 18.50

0916006019
ref: 16

WASHER(6.5X16X1.2)

€ 1.50

0916906033
ref: 17

WASHER

€ 1.50

0831921068
ref: 18

NUT 6MM

€ 2.00

5712914501
ref: 19

COVER,THROTTLE CASE

€ 7.50
