SEAT (MODEL K)

DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53

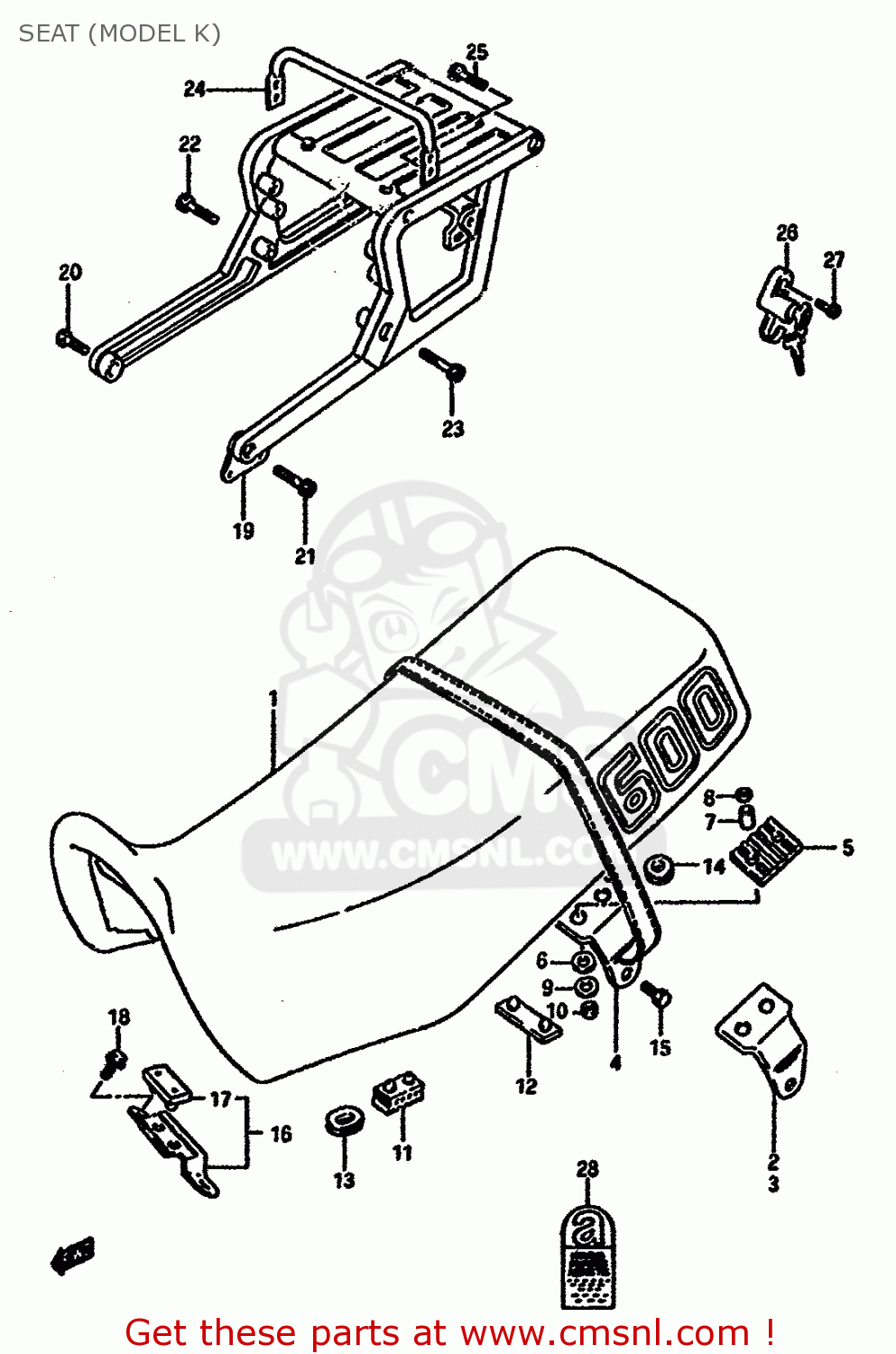

Seat (model k) diagram DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53

SEAT (MODEL K) DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53
SEAT (MODEL K) DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53
SEAT (MODEL K) DR600S 1989 (K) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
4510015C804UZ
ref: 1-1
SEAT SET (BLUE)
€ 279.00
1-2
4510015C8058P
ref: 1-2
SEAT SET (BLACK)
€ 0.00
1-3
4510015C704UZ
ref: 1-3
E4
SEAT SET (BLUE)
€ 229.50
1-4
4510015C7058P
ref: 1-4
E4
SEAT SET (BLACK)
€ 0.00
1-5
4510015C604UZ
ref: 1-5
E16,E18
SEAT SET (BLUE)
€ 229.50
1-6
4510015C6058P
ref: 1-6
E16,E18
SEAT SET (BLACK)
€ 229.50
1-7
4510015C904UZ
ref: 1-7
E17,E22
SEAT SET (BLUE)
€ 0.00
1-8
4510015C9058P
ref: 1-8
E17,E22
SEAT SET (BLACK)
€ 0.00
1-9
4510015C504UZ
ref: 1-9
E21,E34,E39,E53
SEAT SET (BLUE)
€ 229.50
1-10
4510015C5058P
ref: 1-10
E21,E34,E39,E53
SEAT SET (BLACK)
€ 0.00
2
4511714A10
ref: 2
BRACKET,SEAT,RIGHT
4511714A10
€ 9.00
3
4511814A10
ref: 3
BRACKET,SEAT,LEFT
€ 3.50
4-1
4518014A004UZ
ref: 4-1
E16,E18
BAND,SEAT
4518014A004UZ
€ 16.50
4-2
4518014A0058P
ref: 4-2
E16,E18
BAND,SEAT GRIP
€ 16.50
4-3
4518014A504UZ
ref: 4-3
E4,E21,E34,E39,E53
BAND, SEAT GRIP (BLUE)
4518014A504UZ
€ 25.00
4-4
4518014A5058P
ref: 4-4
E4,E21,E34,E39,E53
BAND,SEAT
€ 25.00
5
4514723450
ref: 5
CUSHION,SEAT FR
4514723450
€ 1.50
6
4515023450
ref: 6
CUSHION,FR PLATE
4515023450
€ 3.00
7
4521923450
ref: 7
SPACER,SEAT SUPPORT
€ 2.50
8
0821206201
ref: 8
WASHER
0821206201
€ 1.50
9
0832221066
ref: 9
WASHER, LOWER
0832221066
€ 2.00
10
0831626066
ref: 10
NUT
€ 2.00
11
4514931300
ref: 11
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
12
0932108009
ref: 12
CUSHION
0932108009
€ 4.00
13
0932908003
ref: 13
CUSHION
0932908003
€ 3.50
14
0932008018
ref: 14
CUSHION
0932008018
€ 4.00
15
0110708166
ref: 15
BOLT, 8X1.25X1
€ 2.00
16
4512014A00
ref: 16
PLATE ASSY,SEAT FR HOOK
4512014A00
€ 16.50
17
0932108010
ref: 17
CUSHION
0932108010
€ 4.00
18
0151708126
ref: 18
BOLT
€ 3.50
19
4630014A40
ref: 19
CARRIER ASSEMBLY,REAR
€ 282.00
20
0711008358
ref: 20
BOLT, FRONT RH
€ 4.50
21
0711008257
ref: 21
BOLT, FRONT LH
0711008257
€ 3.50
22
0711008608
ref: 22
BOLT, REAR RH
0711008608
€ 4.50
23
0711008508
ref: 23
BOLT ,8X50
€ 3.50
24
4632214A40
ref: 24
E16,E22
TUBE, PILLION HANDLE
4632214A40
€ 29.00
25
0151708167
ref: 25
E16,E22
BOLT 8X16
€ 3.00
26
9570031810
ref: 26
LOCK SET,HELMET
€ 49.50
27
0711006165
ref: 27
BOLT
0711006165
€ 3.00
28
1196782000
ref: 28
E2
LABEL,ASBESTOS WARNING
€ 2.00
20-4
4631014A2034S
ref: 20-4
MODEL H
CARRIER COMP,SUPPORT
€ 89.50
20-5
4631014A30019
ref: 20-5
MODEL H E16,E22
CARRIER,SPORT (BLACK)
€ 0.00
20-6
4631014A3034S
ref: 20-6
MODEL H E16,E22
CARRIER,SPORT (BLUE)
€ 0.00
21
0110708207
ref: 21
MODEL F/G/H
BOLT
0110708207
€ 3.00
22
0832121088
ref: 22
MODEL F/G/H
LOCK WASHER
0832121088
€ 2.00
23
0832221088
ref: 23
MODEL F/G/H
WASHER
0832221088
€ 2.00
24
0151708705
ref: 24
MODEL F/G/H
BOLT (8X70)
€ 2.50
25
4630014A40
ref: 25
MODEL J
CARRIER ASSEMBLY,REAR
€ 282.00
26
0711008358
ref: 26
MODEL J
BOLT, FRONT RH
€ 4.50
27
0711008258
ref: 27
MODEL J
BOLT
€ 3.50
28
0711008608
ref: 28
MODEL J
BOLT, REAR RH
0711008608
€ 4.50
29
0711008508
ref: 29
MODEL J
BOLT ,8X50
€ 3.50
30
4632214A40
ref: 30
MODEL J E16,E22
TUBE, PILLION HANDLE
4632214A40
€ 29.00
31
0151708167
ref: 31
MODEL J E16,E22
BOLT 8X16
€ 3.00
32
9570031810
ref: 32
LOCK SET,HELMET
€ 49.50
33
0711006165
ref: 33
BOLT
0711006165
€ 3.00
34
1196782000
ref: 34
E2
LABEL,ASBESTOS WARNING
€ 2.00
