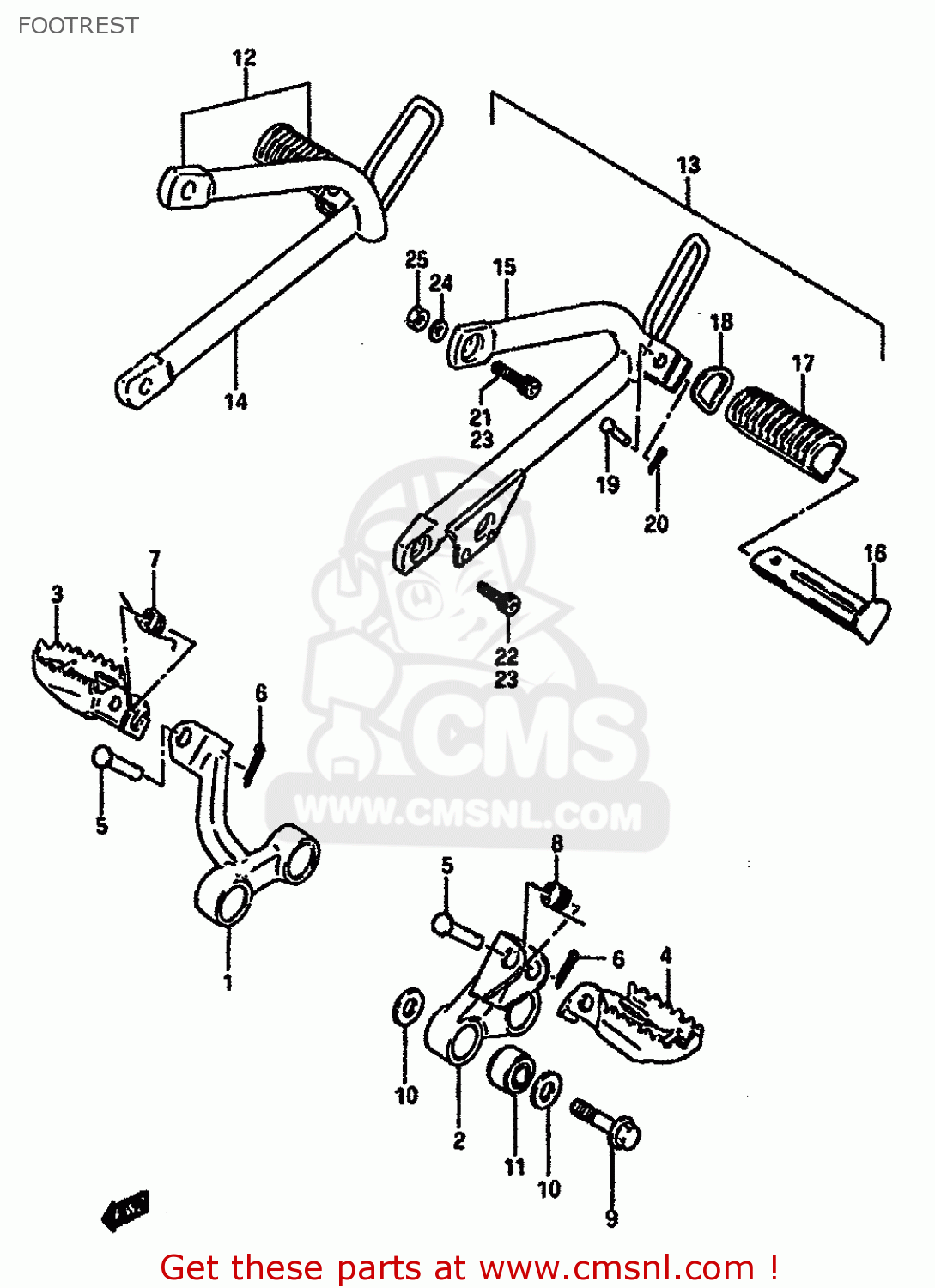

FOOTREST

ref

part #

description

quantity

1-1

4351014A00019
ref: 1-1
FOR 14C,19F,34S

BAR,FR FOOTREST,R

€ 20.00

1-2

4351014A0019F
ref: 1-2
MODEL F/G FOR 10V,21

BAR, FOOTREST RH (BLUE)

€ 20.00

1-3

4351014A0034S
ref: 1-3
MODEL H/J/K FOR 14L,

BAR, FOOTREST RH (BLUE)

€ 20.00

2-1

4352014A00019
ref: 2-1
FOR 14C,19F,34S

BAR,FRONT FOOTREST,LEFT

€ 32.50

2-2

4352014A0019F
ref: 2-2
MODEL F/G FOR 10V,21

BAR, FOOTREST LH (BLUE)

€ 32.50

2-3

4352014A0034S
ref: 2-3
MODEL H/J/K FOR 14L,

BAR, FOOTREST LH (BLUE)

€ 32.50

3-1

4355014A00019
ref: 3-1
FOR 14C,19F,34S

FOOTREST COMP,FRONT,RIGHT

€ 69.00

3-2

4355014A0019F
ref: 3-2
MODEL F/G FOR 10V,21

FOOTREST, FRONT RH (BLUE)

€ 69.00

3-3

4355014A0034S
ref: 3-3
MODEL H/J/K FOR 14L,

FOOTREST, FRONT RH (BLUE)

€ 69.00

4-1

4356014A00019
ref: 4-1
FOR 14C,19F,34S

FOOTREST

€ 122.00

4-2

4356014A0019F
ref: 4-2
MODEL F/G FOR 10V,21

FOOTREST, FRONT LH (BLUE)

€ 122.00

4-3

4356014A0034S
ref: 4-3
MODEL H/J/K FOR 14L,

FOOTREST, FRONT LH (BLUE)

€ 122.00

5

0920010008
ref: 5

PIN

€ 3.00

6

0411120208
ref: 6

PIN 20X20

€ 1.50

7

0944815008
ref: 7

SPRING

€ 2.50

8

0944815004
ref: 8

SPRING

€ 2.50

9

0910310045
ref: 9

BOLT(10X50)

€ 3.50

10

0916010059
ref: 10

WASHER

€ 2.50

11

0931910033
ref: 11

BUSH(10.2X25X19)

€ 6.50

12-1

4360014A00019
ref: 12-1
FOR 14C,19F,34S

FOOTREST ASSEMBLY,PILLION

€ 113.00

12-2

4360014A0019F
ref: 12-2
MODEL F/G FOR 10V,21

FOOTREST, PILLION RH (BLUE)

€ 113.00

12-3

4360014A0034S
ref: 12-3
MODEL H/J/K FOR 14L,

FOOTREST, PILLION RH (BLUE)

€ 113.00

13-1

4370014A00019
ref: 13-1
MODEL F/G/H FOR 14C,

FOOTREST, PILLION LH (BLACK)

€ 112.00

13-2

4370014A0019F
ref: 13-2
MODEL F/G FOR 10V,21

FOOTREST, PILLION LH (BLUE)

€ 99.50

13-3

4370014A0034S
ref: 13-3
MODEL H FOR 14L,21C

FOOTREST, PILLION LH (BLUE)

€ 112.00

13-4

4370015A10019
ref: 13-4
MODEL J/K FOR 34S

FOOTREST,PILLION LH (BLACK)

€ 112.00

13-5

4370015A1034S
ref: 13-5
MODEL J/K FOR 14L,21

FOOTREST,PILLION LH (BLUE)

€ 112.00

14-1

4365014A00019
ref: 14-1
FOR 14C,19F,34S

HOLDER,PILLION FOOTREST

€ 67.50

14-2

4365014A0019F
ref: 14-2
MODEL F/G FOR 10V,21

HOLDER, RH (BLUE)

€ 67.50

14-3

4365014A0034S
ref: 14-3
MODEL H/J/K FOR 14L,

HOLDER, RH (BLUE)

€ 67.50

15-1

4375014A00019
ref: 15-1
MODEL F/G/H FOR 14C,

HOLDER, LH (BLACK)

€ 73.50

15-2

4375014A0019F
ref: 15-2
MODEL F/G FOR 10V,21

HOLDER, LH (BLUE)

€ 73.50

15-3

4375014A0034S
ref: 15-3
MODEL H FOR 14L,21C

HOLDER, LH (BLUE)

€ 73.50

15-4

4375015A00019
ref: 15-4
MODEL J/K FOR 34S

HOLDER,LH (BLACK)

€ 73.50

15-5

4375015A0034S
ref: 15-5
MODEL J/K FOR 14L,21

HOLDER,LH (BLUE)

€ 73.50

16-1

4361014A00
ref: 16-1

BAR COMP,PILLION FOOTREST

€ 6.50

16-2

4362014A00
ref: 16-2

BAR,PILLION FOOTREST,LEFT

€ 7.50

17

4361214A00
ref: 17

RUBBER,PILLION FOOTREST

€ 4.00

18

4363114A00
ref: 18

WASHER,PILLION FOOTREST

€ 4.00

19

0920006010
ref: 19

PIN

€ 2.50

20

0411120158
ref: 20

PIN

€ 1.50

21

0711008255
ref: 21
MODEL F

BOLT

€ 3.50

22

0711008205
ref: 22
MODEL F

BOLT

€ 3.00

23

0711008205
ref: 23
MODEL G/H/J/K

BOLT

€ 3.00

24

0832121084
ref: 24

WASHER,LOCK,8.

€ 2.50

25

0831011085
ref: 25

NUT

€ 1.50
