WIRING HARNESS
DR600SU 1989 (K) GERMANY (E22)

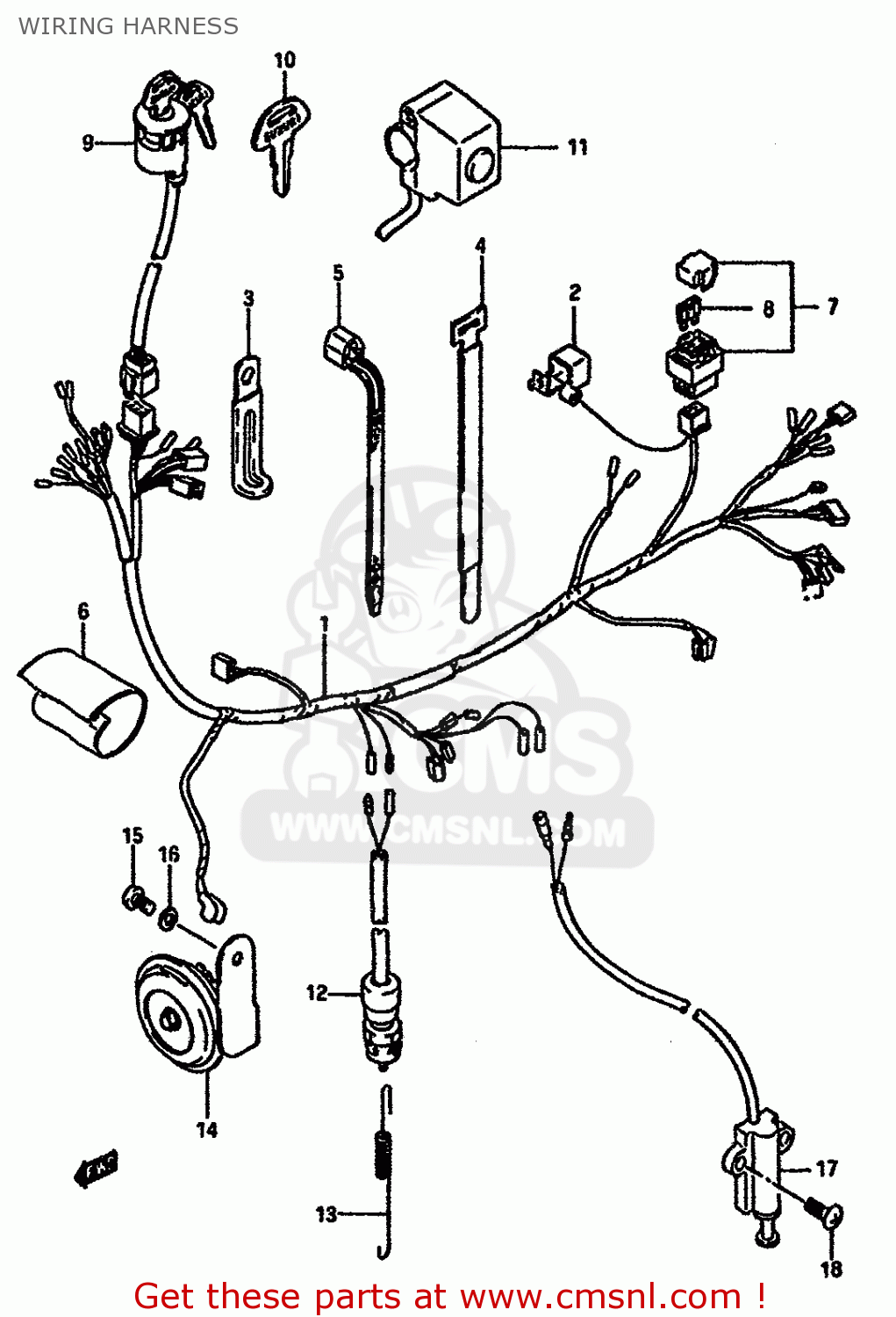

Wiring harness diagram DR600SU 1989 (K) GERMANY (E22)
WIRING HARNESS DR600SU 1989 (K) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661014A00
ref: 1-1
MODEL F
HARNESS,WIRING
€ 0.00
1-2
3661014A12
ref: 1-2
MODEL G/H
HARNESS, WIRING
€ 180.00
1-3
3661014A41
ref: 1-3
MODEL J/K
HARNESS, WIRING
€ 192.00
2
3362414A00
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 0.00
3-1
0940406401
ref: 3-1
CLAMP L:35
€ 2.50
3-2
0940408413
ref: 3-2
CLAMP
€ 3.50
3-3
0940406422
ref: 3-3
MODEL F/G/H
CLAMP
€ 2.50
4-1
0940718301
ref: 4-1
MODEL F/G/H/K
CLAMP
€ 6.00
4-2
0940712402
ref: 4-2
MODEL J/K
CLAMP(L:120)
€ 3.00
5-1
0940714403
ref: 5-1
MODEL F/G/H/J
CLAMP(L:125)
€ 2.50
5-2
0940714403
ref: 5-2
MODEL K
CLAMP(L:125)
€ 2.50
5-3
0940718402
ref: 5-3
MODEL F/G/H
CLAMP(L:165)
€ 2.50
5-4
0940718402
ref: 5-4
MODEL J
CLAMP(L:165)
€ 2.50
5-5
0940718402
ref: 5-5
MODEL K
CLAMP(L:165)
€ 2.50
5-6
0940725401
ref: 5-6
CLAMP(L:235)
€ 4.00
6
3661813600
ref: 6
COVER,WIRING HARNESS
€ 12.00
7
3674004701
ref: 7
BOX ASSY,FUSE
€ 16.00
8
0948115101
ref: 8
FUSE(15A)
€ 1.50
9
3711001A01
ref: 9
SWITCH ASSEMBLY,IGNITION
€ 64.50
10
3714502400
ref: 10
OPT
KEY,BLANK
€ 13.00
11
3783013A00
ref: 11
SWITCH ASSY,ENGINE STOP
€ 43.00
12
3774014A00
ref: 12
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
13
0944306058
ref: 13
SPRING
€ 18.00
14-1
3850014A10
ref: 14-1
HORN ASSY
€ 42.00
14-2
3850014A00
ref: 14-2
E4,E18,E34,E53 MODEL
HORN ASSY
€ 53.50
14-3
3850014A20
ref: 14-3
MODEL K E39
HORN ASSEMBLY
€ 48.00
15
0211206125
ref: 15
SCREW
€ 1.50
16
0832121064
ref: 16
WASHER,LOCK
€ 2.00
17
3784014A20
ref: 17
MODEL J/K
SWITCH ASSY, SIDE STAND
€ 80.00
18
0211206205
ref: 18
MODEL J/K
SCREW
€ 2.00
