OIL COOLER
DR600SU 1989 (K) GERMANY (E22)

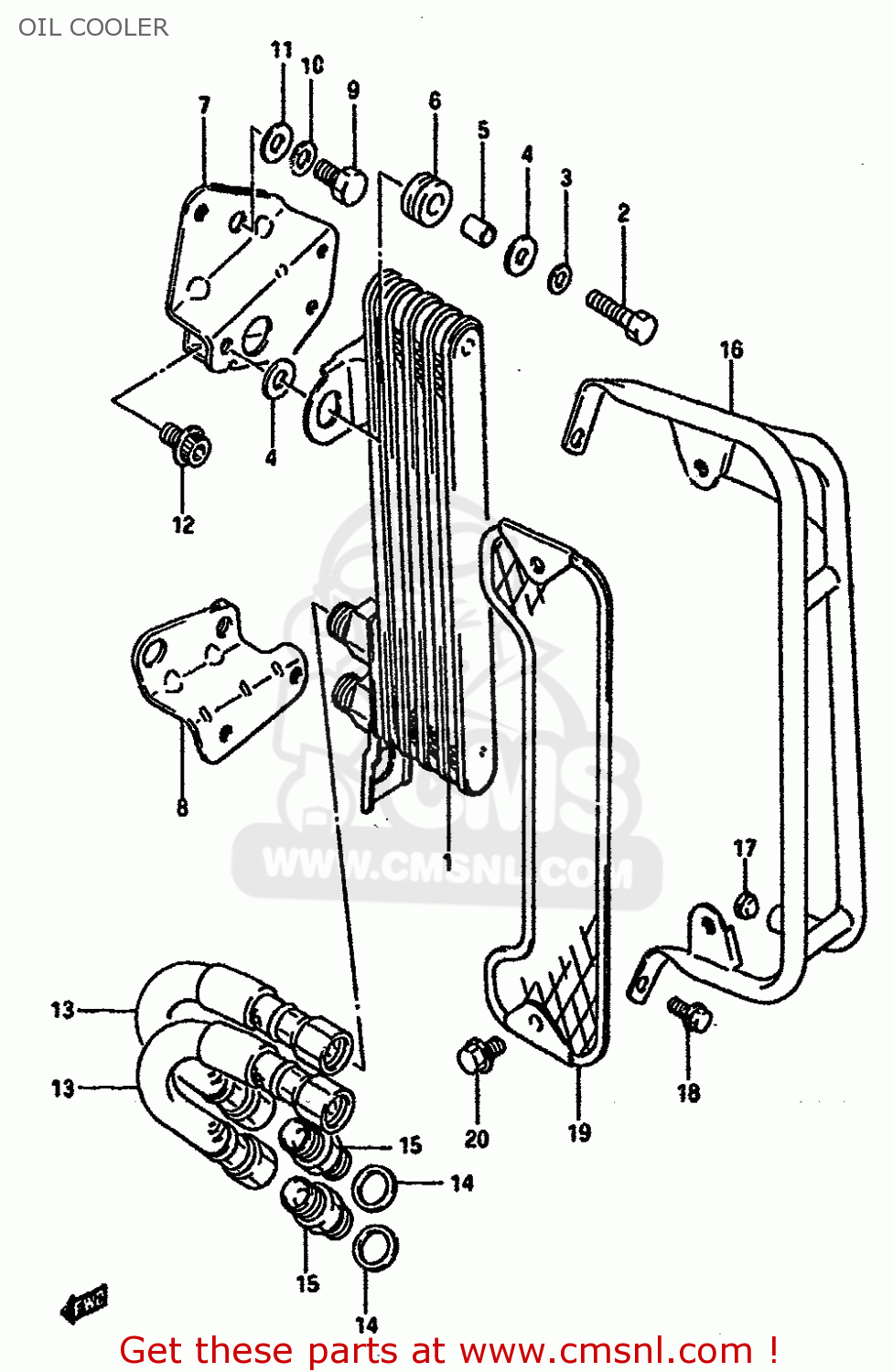

Oil cooler diagram DR600SU 1989 (K) GERMANY (E22)
OIL COOLER DR600SU 1989 (K) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1660014A00
ref: 1
COOLER ASSEMBLY,ENGINE OIL
€ 414.50
2
0110706255
ref: 2
BOLT
€ 2.50
3
0832121064
ref: 3
WASHER,LOCK
€ 2.00
4
0916006039
ref: 4
WASHER (6.5X18X1.6)
€ 2.00
5
0918006030
ref: 5
SPACER (6.8X10X10)
€ 2.00
6
0932010015
ref: 6
CUSHION
€ 2.50
7
1662014A01
ref: 7
BRACKET,OIL COOLER NO.1
€ 12.50
8
1663014A00
ref: 8
BRACKET,OIL COOLER NO.2
€ 7.00
9
0110708165
ref: 9
BOLT
€ 2.00
10
0832121084
ref: 10
WASHER,LOCK,8.
€ 2.50
11
0832211084
ref: 11
WASHER
€ 1.50
12
0712008125
ref: 12
BOLT
€ 2.50
13
1646014A00
ref: 13
HOSE,OIL COOLER
€ 76.00
14
0916814011
ref: 14
GASKET(14X20X1.5) (NAS)
€ 2.00
15
0936014006
ref: 15
BOLT UNION
€ 9.50
16
1664014A02
ref: 16
GUARD,OIL COOLER
€ 58.00
17
0925007001
ref: 17
CAP(OD:10)
€ 2.00
18
0154706127
ref: 18
BOLT
€ 2.00
19
1665014A00
ref: 19
BUMPER,OIL COOLER
€ 33.00
20
0151706125
ref: 20
BOLT 6X12
€ 2.50
