CLUTCH (MODEL R/S/T)

DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

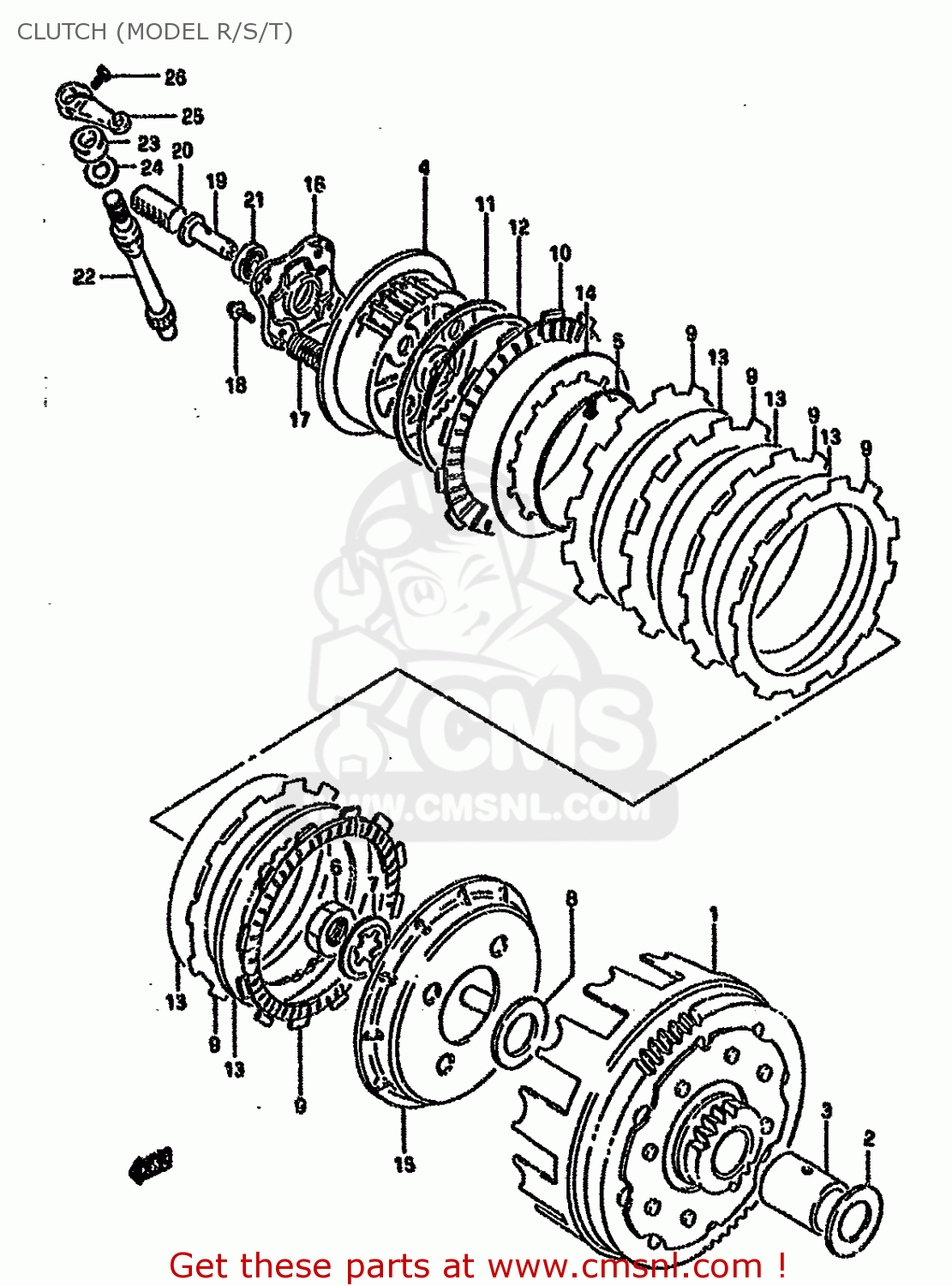

Clutch (model r/s/t) diagram DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

CLUTCH (MODEL R/S/T) DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
CLUTCH (MODEL R/S/T) DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
CLUTCH (MODEL R/S/T) DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
2120012D01
ref: 1
NT:66/18
GEAR ASSEMBLY,PRIMARY DRIVE
€ 260.00
2
0821122383
ref: 2
WASHER
0821122383
€ 3.00
3
0918022023
ref: 3
SPACER(22X28X32.5)
0918022023
€ 15.50
4
2141012D01
ref: 4
HUB,CLUTCH SLEEVE
2141012D01
€ 93.50
5
2148120A01
ref: 5
RING,WAVE WASHER STOPPER
2148120A01
€ 9.00
6
0914022003
ref: 6
NUT
0914022003
€ 10.00
7
0916722005
ref: 7
WASHER,LOCK
0916722005
€ 2.50
8
0821122383
ref: 8
WASHER
0821122383
€ 3.00
9
2144112D01
ref: 9
PLATE,CLUTCH DRIVE (NAS)
2144112D01
€ 16.50
10
2144212D00
ref: 10
PLATE,CLUTCH DRIVE NO (NAS)
2144212D00
€ 11.50
11
2147112E00
ref: 11
SEAT,WAVE WASHER
2147112E00
€ 8.50
12
0916400004
ref: 12
WASHER
0916400004
€ 9.00
13
2145114A00
ref: 13
-21451-12D00
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
2145114A00
€ 6.50
14
2145105A00
ref: 14
PLATE,CLUTCH DRIVEN (NAS)
2145105A00
€ 9.00
15
2146212D00
ref: 15
DISC,CLUTCH PRESSURE
2146212D00
€ 92.00
16
2146537400
ref: 16
PLATE,RELEASE
2146537400
€ 11.50
17
0944020013
ref: 17
SPRING
0944020013
€ 5.00
18
0155006203
ref: 18
BOLT
0155006203
€ 2.50
19
2312114A00
ref: 19
PIECE,CLUTCH PUSH
€ 14.50
20
2316537400
ref: 20
RACK,CLUTCH RELEASE
2316537400
€ 19.00
21
0926212001
ref: 21
-08110-60010
BEARING(12X28X8)
0926212001
€ 15.00
22
2326116501
ref: 22
PINION,CLUTCH RELEASE
2326116501
€ 40.50
23
0928512006
ref: 23
SEAL,OIL (12X22X9)
0928512006
€ 7.00
24
0916014003
ref: 24
WASHER (14.2X22X1)
0916014003
€ 1.00
25
2327145400
ref: 25
ARM,CLUTCH RELEASE
2327145400
€ 31.50
26
0150006203
ref: 26
BOLT
0150006203
€ 2.00
