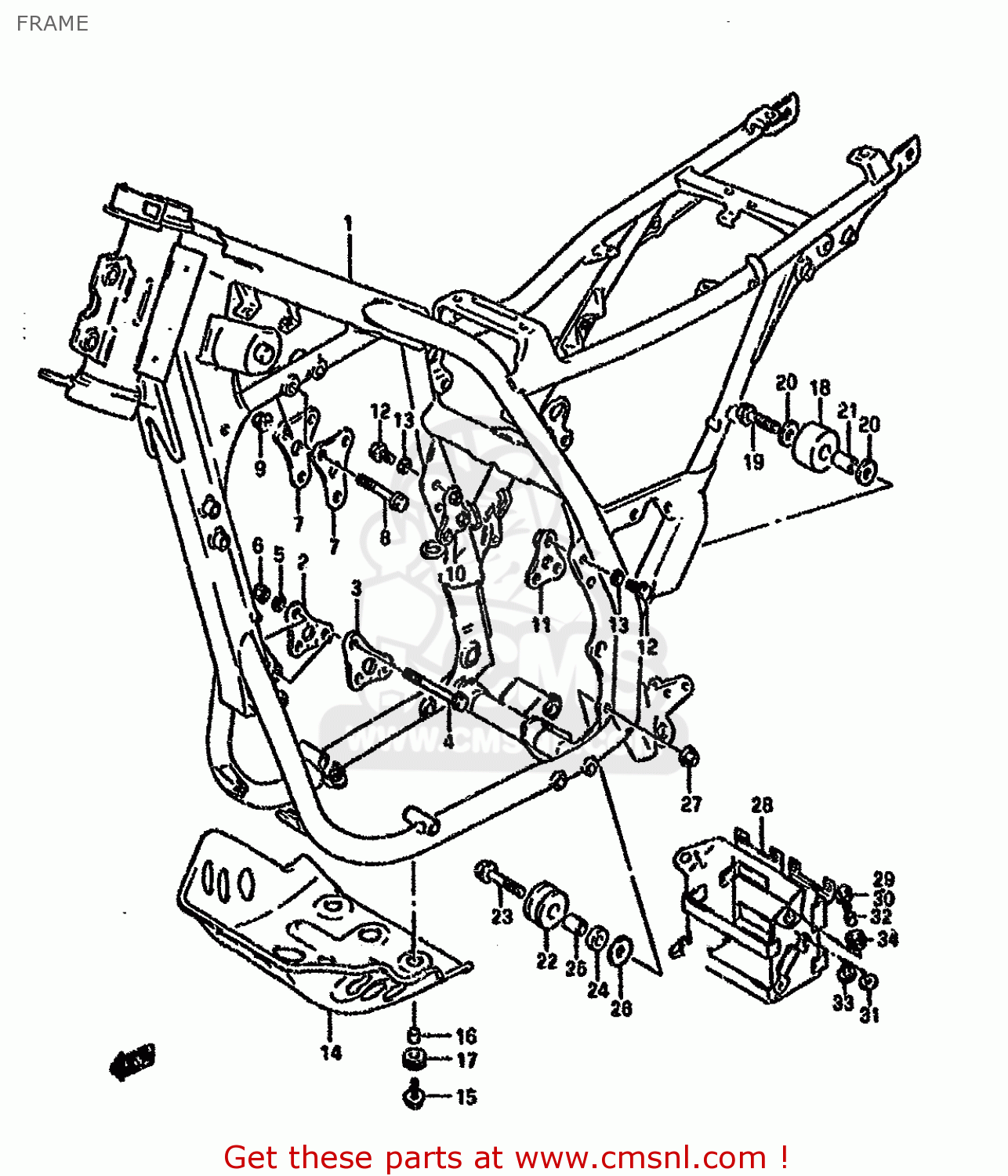

FRAME

ref

part #

description

quantity

1-1

4110012D20ONF
ref: 1-1
MODEL M

FRAME (BLUE)

€ 0.00

1-2

4110012D2028W
ref: 1-2
MODEL M

FRAME (WHITE)

€ 1,219.50

1-3

4110012D20ONH
ref: 1-3
MODEL N

FRAME (RED)

€ 0.00

1-4

4110012D20019
ref: 1-4
MODEL N/P

FRAME (BLACK)

€ 1,934.00

1-5

4110012D221LT
ref: 1-5
MODEL N/P

FRAME (BLUE)

€ 1,934.00

1-6

4110012D22019
ref: 1-6
MODEL R/S

FRAME(BLACK)

€ 1,934.00

1-7

4110012D2224K
ref: 1-7
MODEL R/S/T

FRAME (CHARCOAL)

€ 1,934.00

2

4191112D00019
ref: 2

PLATE,ENG MTG FR,R

€ 9.50

3

4192112D00019
ref: 3

PLATE,ENG MTG FR,L

€ 9.00

4

0910308279
ref: 4

BOLT(8X72)

€ 4.50

5-1

0832131084
ref: 5-1
MODEL M/N/P

LOCK WASHER

€ 2.50

5-2

0832101083
ref: 5-2
MODEL R/S/T

LOCK WASHER

€ 2.50

6

0831921085
ref: 6

NUT

€ 1.50

7-1

4199112D00019
ref: 7-1
MODEL M/N

PLATE,ENGINE MOUNTING

€ 15.50

7-2

4199112D10019
ref: 7-2
MODEL P

PLATE,ENGINE MOUNTING

€ 15.50

7-3

4199112D10
ref: 7-3
MODEL R/S/T

PLATE,ENGINE MOUNTING,UPPER

€ 15.50

8

0910308289
ref: 8

BOLT(8X50)

€ 5.00

9

0831931085
ref: 9

NUT

€ 2.50

10

4194012D00019
ref: 10

PLATE,ENG MTG RR,R

€ 12.00

11

4195012D01019
ref: 11

PLATE,ENG MTG RR,L

€ 10.50

12

0910308266
ref: 12

BOLT(8X20)

€ 2.50

13-1

0832131084
ref: 13-1
MODEL M/N/P

LOCK WASHER

€ 2.50

13-2

0832101083
ref: 13-2
MODEL R/S/T

LOCK WASHER

€ 2.50

14

4251112D10
ref: 14

PROTECTOR,ENGINE

€ 279.00

15

0911806087
ref: 15

BOLT 6X20

€ 3.00

16

0918007005
ref: 16

SPACER (7X9X7)

€ 2.50

17

0932008021
ref: 17

CUSHION

€ 4.00

18

4391101B10
ref: 18

ROLLER,CHAIN CONTROL

€ 14.50

19

0910308083
ref: 19

BOLT(8X41)

€ 3.50

20

0916008021
ref: 20

WASHER (8.2X24X1.6)

€ 2.00

21

0918008136
ref: 21

SPACER (8.6X13.8X28)

€ 9.00

22

4391135B00
ref: 22

ROLLER,CHAIN CONTROL

€ 14.50

23

0910308082
ref: 23

BOLT 8X50

€ 7.00

24

0918008141
ref: 24

SPACER(8.5X15X8.5)

€ 3.50

25

0918008119
ref: 25

SPACER(8.6X12X25.5)

€ 6.50

26

0821108201
ref: 26

WASHER

€ 2.00

27

0831931085
ref: 27

NUT

€ 2.50

28

4154012D20
ref: 28

HOLDER,BATTERY

€ 46.50

29-1

0911606056
ref: 29-1
MODEL M/N/P/R/S

BOLT

€ 2.00

29-2

0911606115
ref: 29-2
MODEL T

BOLT(6X20)

€ 2.00

30-1

0911606047
ref: 30-1
MODEL M/N/P

BOLT(6X25)

€ 2.00

30-2

0911606093
ref: 30-2
MODEL R/S/T

BOLT(6X25)

€ 2.00

31

0916006027
ref: 31
~F.NO.101817 E22:~F.

WASHER (6.5X20X1.2)

€ 2.00

32-1

0918006038
ref: 32-1
~F.NO.101817 E22:~F.

SPACER(6.1X9X7.5)

€ 2.00

32-2

0918006038
ref: 32-2
F.NO.101818~E22:F.NO

SPACER(6.1X9X7.5)

€ 2.00

33-1

4157019C00
ref: 33-1
F.NO.101818~E22:F.NO

PLATE,BATTERY HOLDER

€ 3.50

33-2

4157047D00
ref: 33-2
MODEL T

SPACER COMP,BATTERY

€ 3.00

34

0932008021
ref: 34

CUSHION

€ 4.00
