FUEL TANK (MODEL T)

DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

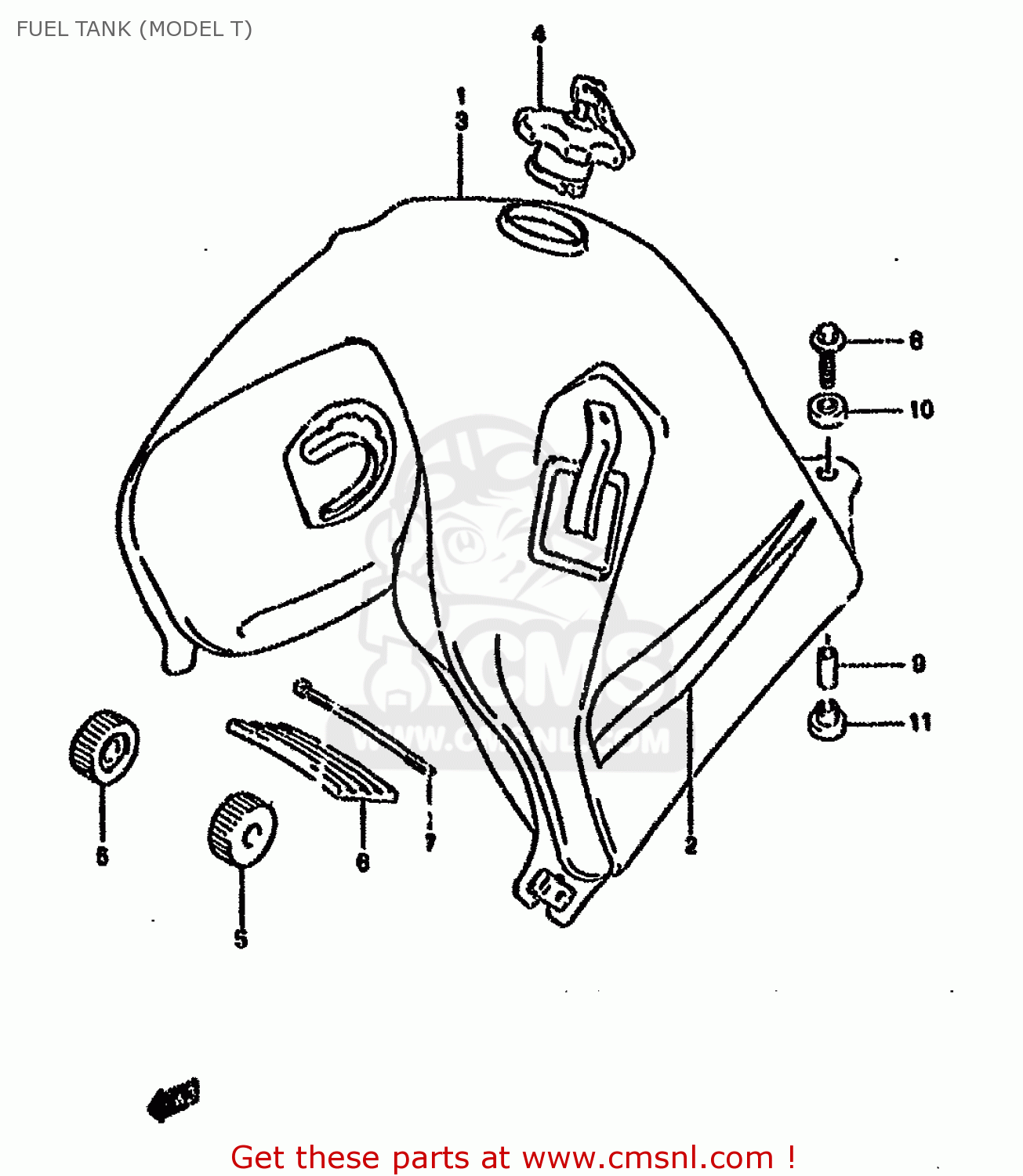

Fuel tank (model t) diagram DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

FUEL TANK (MODEL T) DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
FUEL TANK (MODEL T) DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
FUEL TANK (MODEL T) DR650RSE 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
4410013D00Y98
ref: 1-1
TANK ASSY,FUEL (GREEN)
€ 0.00
1-2
4410013D001HU
ref: 1-2
TANK ASSY,FUEL (PURPLE)
4410013D001HU
€ 528.50
1-3
4410013D10Y98
ref: 1-3
E22
TANK ASSY,FUEL (GREEN)
€ 601.00
1-4
4410013D101HU
ref: 1-4
E22
TANK ASSY,FUEL (PURPLE)
€ 601.00
2
6811013D00FOC
ref: 2
TAPE SET,FUEL TANK
€ 0.00
3-1
4410012DA0Y98
ref: 3-1
E37
TANK ASSY,FUEL (GREEN)
€ 0.00
3-2
4410012DA01HU
ref: 3-2
E37
TANK ASSY,FUEL (PURPLE)
€ 0.00
4
4420003811
ref: 4
CAP SET,FUEL TANK
4420003811
€ 90.50
5
4451112D00
ref: 5
CUSHION,FUEL TANK FR
4451112D00
€ 5.50
6
4454114500
ref: 6
CUSHION,FUEL TANK UPR FR
4454114500
€ 4.50
7
0940725402
ref: 7
CLAMP(L:250)
0940725402
€ 4.50
8
0911606172
ref: 8
BOLT(6X30)
0911606172
€ 2.50
9
0918006072
ref: 9
SPACER
0918006072
€ 2.00
10
0932010020
ref: 10
CUSHION
0932010020
€ 4.00
11
0932014013
ref: 11
CUSHION
0932014013
€ 3.00
4
4420003811
ref: 4
CAP SET,FUEL TANK
4420003811
€ 90.50
5
4451112D00
ref: 5
CUSHION,FUEL TANK FR
4451112D00
€ 5.50
6-1
4454112D00
ref: 6-1
MODEL N/P
CUSHION
4454112D00
€ 4.00
6-2
4454114500
ref: 6-2
MODEL R/S
CUSHION,FUEL TANK UPR FR
4454114500
€ 4.50
7
0940720404
ref: 7
CLAMP
€ 4.50
8
0911606172
ref: 8
BOLT(6X30)
0911606172
€ 2.50
9
0918006072
ref: 9
SPACER
0918006072
€ 2.00
10
0932010020
ref: 10
CUSHION
0932010020
€ 4.00
11
0932014013
ref: 11
CUSHION
0932014013
€ 3.00
