BATTERY

DR650RSEU 1996 (T) GERMANY (E22)

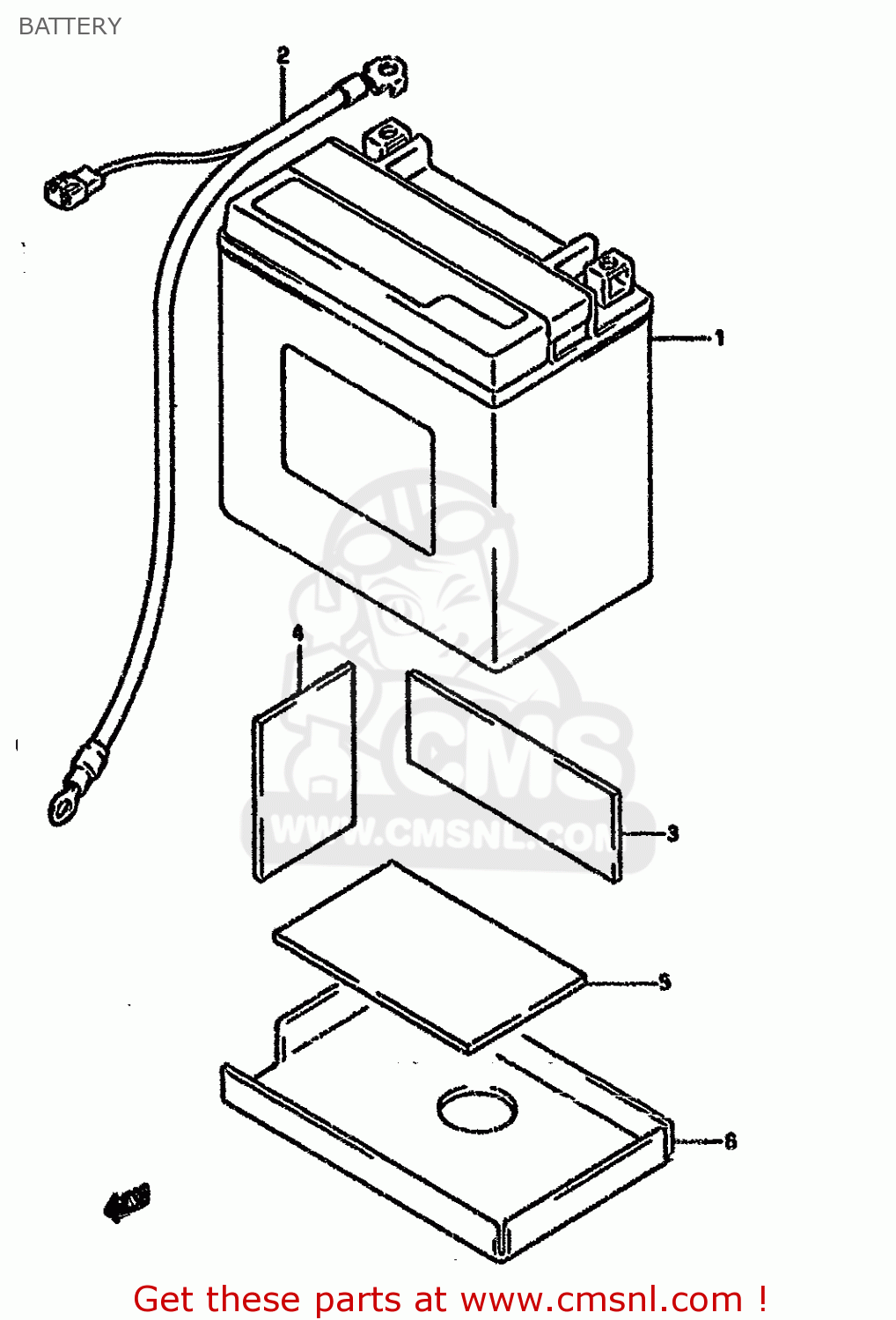

Battery diagram DR650RSEU 1996 (T) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

3361026D10
ref: 1-1

BATTERY ASSY (12V) YTX14-BS

€ 116.50

1-2

3361026D00
ref: 1-2
MODEL M/N:E24

BATTERY ASSY (YTX14-BS,12V12AH)

€ 116.50

3386012D00
ref: 2

LEAD WIRE,BATTERY (-)

€ 17.50

3365229100
ref: 3
-33651-37000

PROTECTOR,20X9

€ 5.00

3365208410
ref: 4
-33651-37000

PROTECTOR,BATTERY

€ 5.00

3365137000
ref: 5
CUT 60X130

PROTECTOR(170X95X3.0)

€ 5.00

3365212D00
ref: 6

PROTECTOR,BATTERY

€ 13.00
