FRONT CALIPER
DR650RSEU 1996 (T) GERMANY (E22)

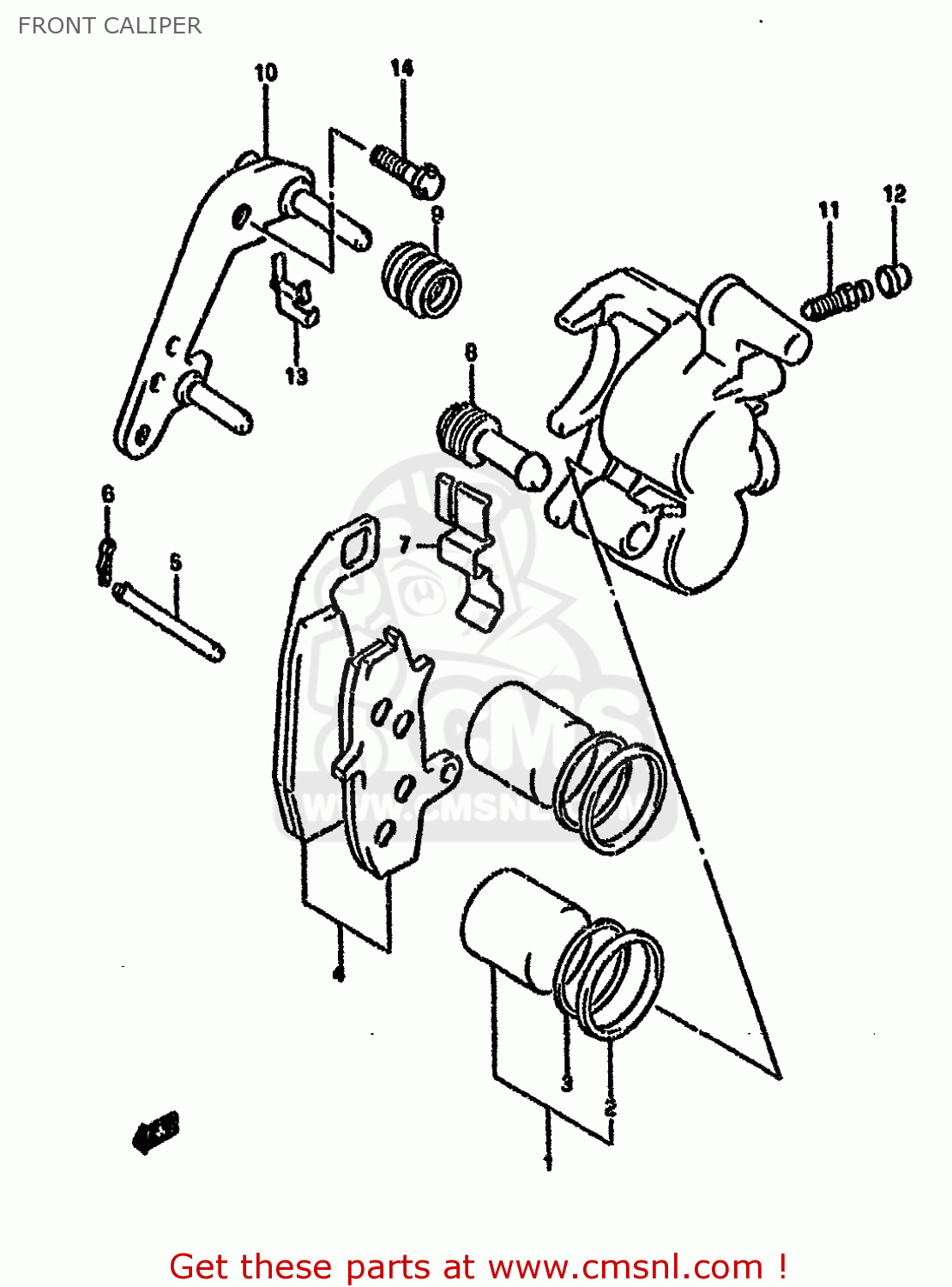

Front caliper diagram DR650RSEU 1996 (T) GERMANY (E22)
FRONT CALIPER DR650RSEU 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
5930044B02
ref: 0
MODEL M/N-59300-44B0
CALIPER ASSEMBLY,FRONT,LEFT
€ 550.50
0
5930044B03
ref: 0
MODEL P/R/S/T
CALIPER ASSEMBLY,FRONT,LEFT
€ 550.50
1
5930044841
ref: 1
PISTON SET
€ 79.00
2
5910727A10
ref: 2
SEAL,PISTON
€ 23.50
3
5910827A10
ref: 3
SEAL,WIPER
€ 18.00
4
5930044850
ref: 4
PAD SET (NAS)
€ 47.00
5
5914144B01
ref: 5
PIN,PAD
€ 8.00
6
6914245000
ref: 6
CLIP,PAD PIN
€ 4.50
7
5931544B00
ref: 7
SPRING,PAD
€ 14.50
8
5931336500
ref: 8
INSULATOR,AXLE
€ 5.50
9
5931244B00
ref: 9
BOOT,AXLE
€ 12.50
10
5935044B00
ref: 10
BRACKET
€ 70.00
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
€ 6.00
13
5931644B00
ref: 13
GUIDE,PAD
€ 7.50
14
0910308156
ref: 14
BOLT
€ 3.50
