SECOND AIR (E18,E39)
DR650RSEU 1996 (T) GERMANY (E22)

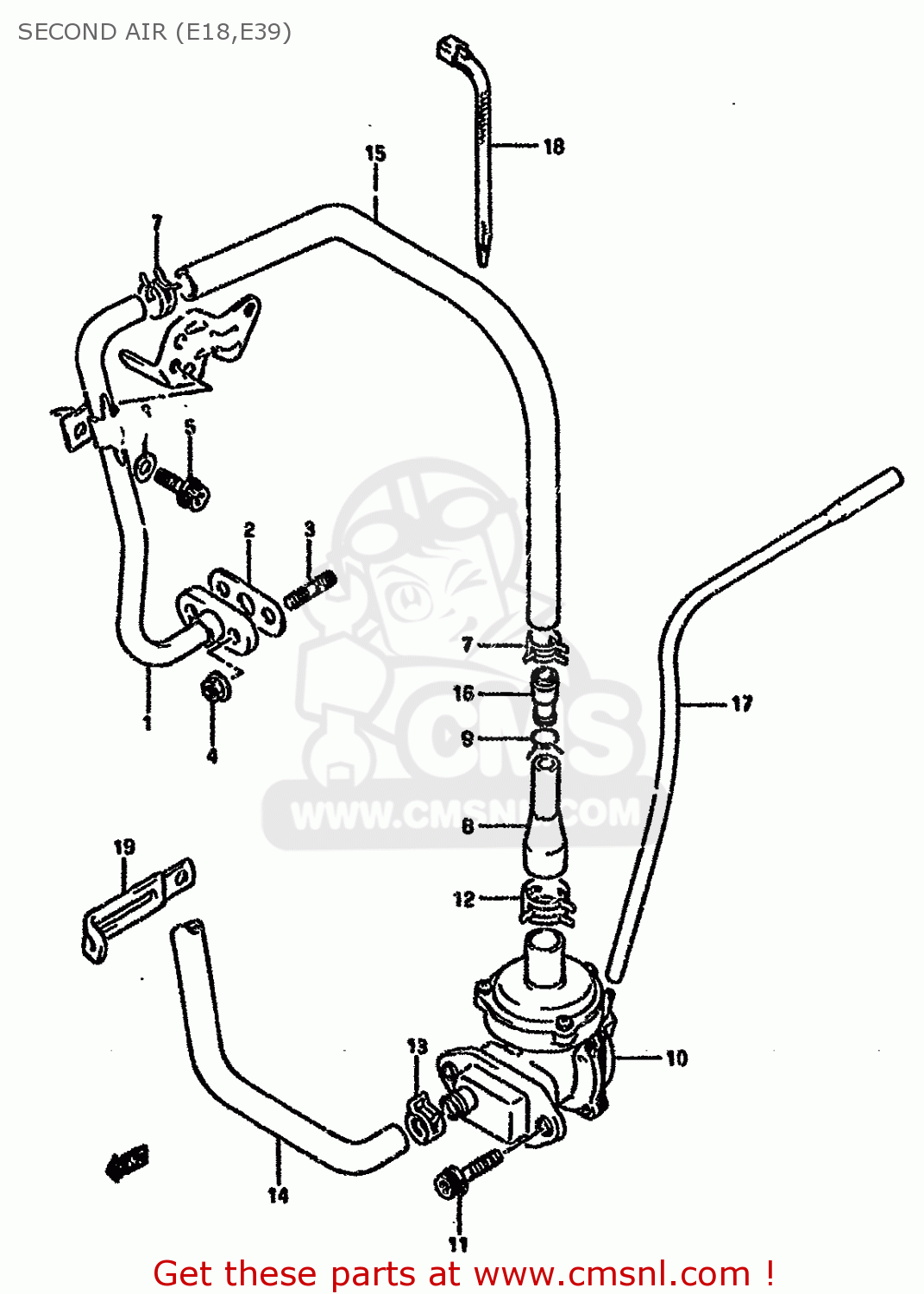

Second air (e18,e39) diagram DR650RSEU 1996 (T) GERMANY (E22)
SECOND AIR (E18,E39) DR650RSEU 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1842012D10
ref: 1
PIPE,2ND AIR
€ 0.00
2
1844145C00
ref: 2
GASKET,SECOND AIR PIPE (N (NAS)
€ 6.00
3-1
0142106165
ref: 3-1
MODEL M/N/P
STUD 6X16
€ 2.00
3-2
0142106163
ref: 3-2
MODEL R/S/T
STUD BOLT
€ 2.00
4-1
0831616064
ref: 4-1
MODEL M/N/P
NUT 6MM
€ 2.50
4-2
0831610063
ref: 4-2
MODEL R/S/T
NUT
€ 2.50
5
0712006123
ref: 5
BOLT
€ 3.50
6-1
0916006069
ref: 6-1
MODEL M/N/P/R
WASHER
€ 2.00
6-2
0916006079
ref: 6-2
MODEL S/T
WASHER(6.5X16X1.2)
€ 2.00
7
0940116402
ref: 7
CLIP
€ 2.00
8
1844631D00
ref: 8
-18446-12D00
HOSE, 2ND AIR
€ 22.00
9
0940115301
ref: 9
CLIP
€ 2.50
10
1845031D00
ref: 10
VALVE ASSY, 2ND AIR REED
€ 0.00
11-1
0712006205
ref: 11-1
MODEL M/N/P
PLUG ,6X20
€ 3.50
11-2
0712006203
ref: 11-2
MODEL R/S/T
BOLT
€ 3.50
12
0940123403
ref: 12
CLIP
€ 4.50
13
0940115404
ref: 13
CLIP
€ 2.50
14
1844531D00
ref: 14
HOSE, 2ND AIR NO.4
€ 0.00
15
1843112020
ref: 15
HOSE,2ND AIR NO.2
€ 0.00
16
1843214D00
ref: 16
UNION, 2ND AIR HOSE
€ 14.50
17
0935940701600
ref: 17
L:600-400
HOSE(4X7X600)
€ 9.00
18-1
0940718402
ref: 18-1
MODEL M/N/P/R/S
CLAMP(L:165)
€ 2.50
18-2
0940718403
ref: 18-2
MODEL T
CLAMP L:165
€ 2.50
18-3
0940714403
ref: 18-3
CLAMP(L:125)
€ 2.50
18-4
0940714301
ref: 18-4
CLAMP
€ 6.00
19
0940406432
ref: 19
CLAMP(L:65)
€ 2.50
