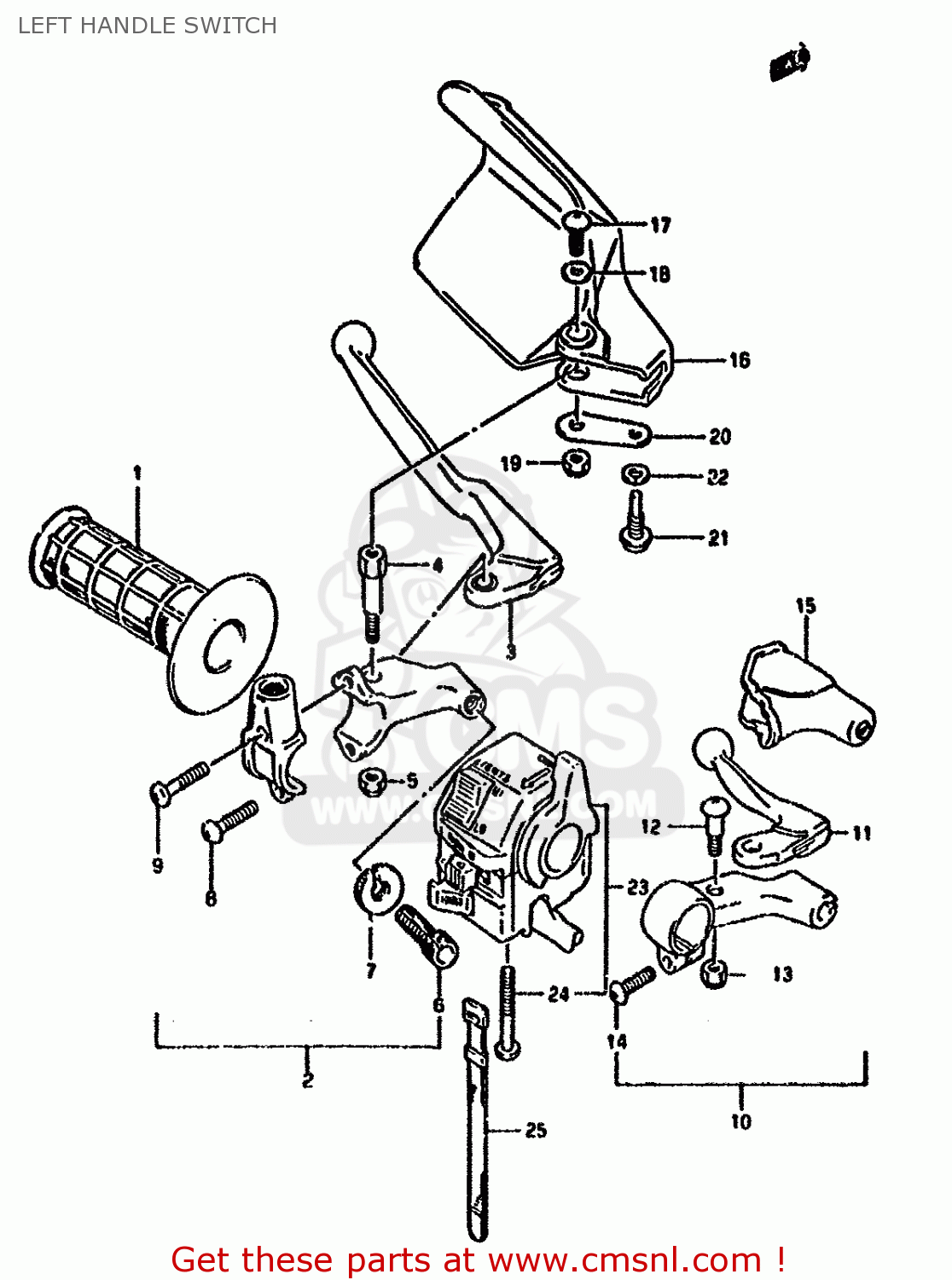

LEFT HANDLE SWITCH

ref

part #

description

quantity

1

5721112D00
ref: 1

GRIP,L

€ 14.50

2

5750012E00
ref: 2

LEVER ASSY,CLUTCH

€ 91.00

3

5762014310
ref: 3

LEVER,CLUTCH

€ 28.00

4

5763105D00
ref: 4

BOLT,LEVER SET

€ 7.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744205D00
ref: 7

NUT,LOCK

€ 7.50

8

3759149210
ref: 8

SCREW

€ 2.50

9

0912505065
ref: 9

SCREW(5X22)

€ 4.50

10

5870038200
ref: 10

LEVER ASSEMBLY,DECOMPRESSION

€ 169.50

11

5873138200
ref: 11

LEVER,DECOMP

€ 42.00

12

5743101012
ref: 12

BOLT,LEVER PIVOT

€ 5.00

13

5763338200
ref: 13

NUT

€ 2.00

14

0211206205
ref: 14

SCREW

€ 2.00

15

5734237101
ref: 15

COVER,DECOMP LEVER DUST

€ 9.50

16-1

5754105D0130H
ref: 16-1
MODEL N FOR 28X,29X

COVER,KNUCKLE,L

€ 31.00

16-2

5754105D010NF
ref: 16-2
MODEL P,FOR 28X MODE

COVER,KNUCKLE,L

€ 31.00

16-3

5754105D0128V
ref: 16-3
MODEL P,FOR 29X

COVER,KNUCKLE,L

€ 33.00

16-4

5754105D01019
ref: 16-4
MODEL R,FOR 019

COVER,KNUCKLE,L

€ 29.50

17-1

0912505042
ref: 17-1
MODEL N/P

SCREW(5X10)

€ 2.50

17-2

0214205107
ref: 17-2
MODEL R

SCREW

€ 2.50

18

0916005017
ref: 18

WASHER (5.5X16X1.2)

€ 2.50

19

0831921068
ref: 19

NUT 6MM

€ 2.00

20

5754205D00
ref: 20

PLATE,KNUCKLE COVER,L LWR

€ 3.50

21

0913906010
ref: 21

SCREW

€ 3.00

22-1

0832121067
ref: 22-1
MODEL N/P

WASHER,LOCK

€ 2.50

22-2

0832101063
ref: 22-2
MODEL R

LOCK WASHER

€ 2.00

23

3740012E00
ref: 23

SWITCH,HANDLE,

€ 157.00

24

0211205455
ref: 24

SCREW, 5X45

€ 4.00

25

0940712402
ref: 25

CLAMP(L:120)

€ 3.00

all assemblies
