DR650RU 1994 (R) GERMANY (E22)

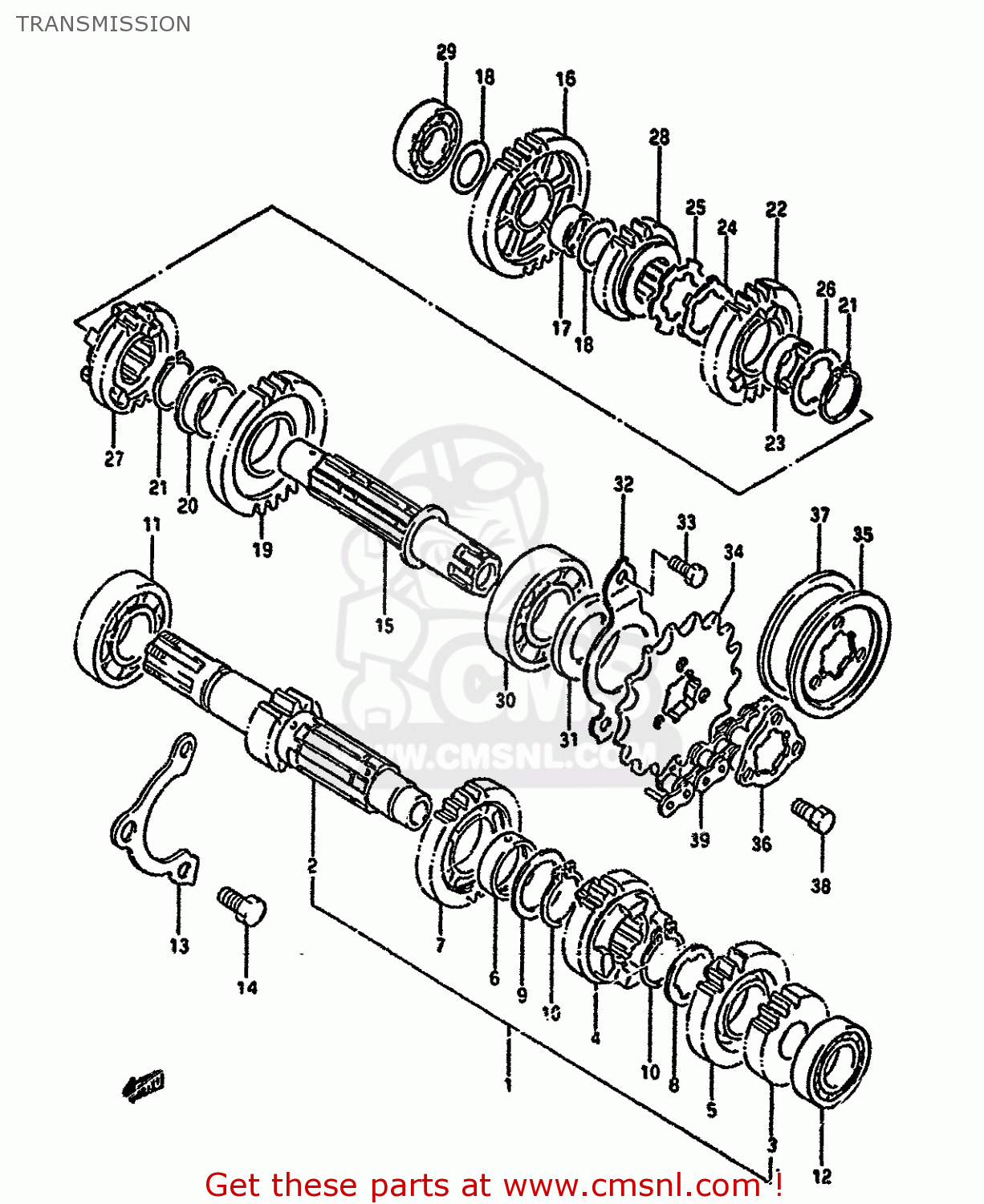

Transmission diagram DR650RU 1994 (R) GERMANY (E22)
TRANSMISSION DR650RU 1994 (R) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2412012D00
ref: 1
SHAFT,COUNTER
€ 236.50
2
2412114A00
ref: 2
SHAFT,COUNTER
€ 185.50
3
2422114A00
ref: 3
GEAR,SECOND DRIVE
€ 66.50
4
2423112D02
ref: 4
GEAR,3RD DRIVE
€ 146.50
5
2424114A00
ref: 5
GEAR,FOURTH DRIVE
€ 69.00
6
0930025023
ref: 6
BUSHING 25X29X10
€ 9.50
7
2425114A00
ref: 7
GEAR,5TH DRIVE
€ 105.00
8
0916725012
ref: 8
WASHER,LOCK
€ 3.50
9
0821125341
ref: 9
WASHER
€ 3.50
10
0938025003
ref: 10
RING,SNAP
€ 3.00
11
0926222014
ref: 11
BEARING
€ 59.50
12-1
0926217027
ref: 12-1
MODEL N/P
BEARING(17X40X12)
€ 25.00
12-2
0926217018
ref: 12-2
MODEL R
BEARING
€ 25.00
13
2474114A00
ref: 13
RETAINER,CNTR SHAFT BEARING
€ 5.00
14-1
0110708166
ref: 14-1
MODEL N/P
BOLT, 8X1.25X1
€ 2.00
14-2
0150008163
ref: 14-2
MODEL R
BOLT
€ 2.00
15
2413114A00
ref: 15
SHAFT,DRIVE
€ 121.00
16
2431114A01
ref: 16
GEAR,1ST DRIVEN
€ 67.50
17
0930020032
ref: 17
BUSH(20X24X13)
€ 10.00
18
0821120301
ref: 18
WASHER
€ 3.00
19
2432114A00
ref: 19
GEAR,2ND DRIVEN
€ 118.00
20
0930125002
ref: 20
BUSH
€ 10.50
21
0938025003
ref: 21
RING,SNAP
€ 3.00
22
2433114A05
ref: 22
GEAR,3RD DRIVEN
€ 329.50
23
2433224500
ref: 23
BUSHING
€ 9.50
24
0916925001
ref: 24
WASHER
€ 2.00
25
0916725013
ref: 25
WASHER,LOCK
€ 2.50
26
0916725016
ref: 26
WASHER,LOCK
€ 3.00
27
2434114A01
ref: 27
GEAR,FOURTH DRIVEN
€ 67.00
28
2435114A00
ref: 28
GEAR,FIFTH DRIVEN
€ 68.50
29
0926220059
ref: 29
BEARING(20X42X12)
€ 14.50
30
0926225066
ref: 30
BEARING(25X62X17)
€ 44.50
31
0928325076
ref: 31
SEAL,OIL(25X45X5)
€ 9.00
32
2475114A01
ref: 32
RETAINER,DRIVE SHAFT OIL SEAL
€ 7.50
33-1
0110706126
ref: 33-1
MODEL N/P
BOLT
€ 2.00
33-2
0150006123
ref: 33-2
MODEL R
BOLT
€ 2.00
34
2751114A01
ref: 34
SPROCKET,ENGINE(NT:16)
€ 30.00
35
2751214A11
ref: 35
-27512-12D10
PLATE,ENGINE SPROCKET
€ 9.50
36
2751212D00
ref: 36
E17,E24
PLATE,ENGINE SPROCKET
€ 9.50
37
2751714A00
ref: 37
DAMPER,ENGIN SPROCKET
€ 14.00
38
0911106039
ref: 38
BOLT(6X13)
€ 6.00
39
2760013A60114
ref: 39
CHAIN ASSEMBLY,DRIVE
€ 112.00
up
all assemblies
