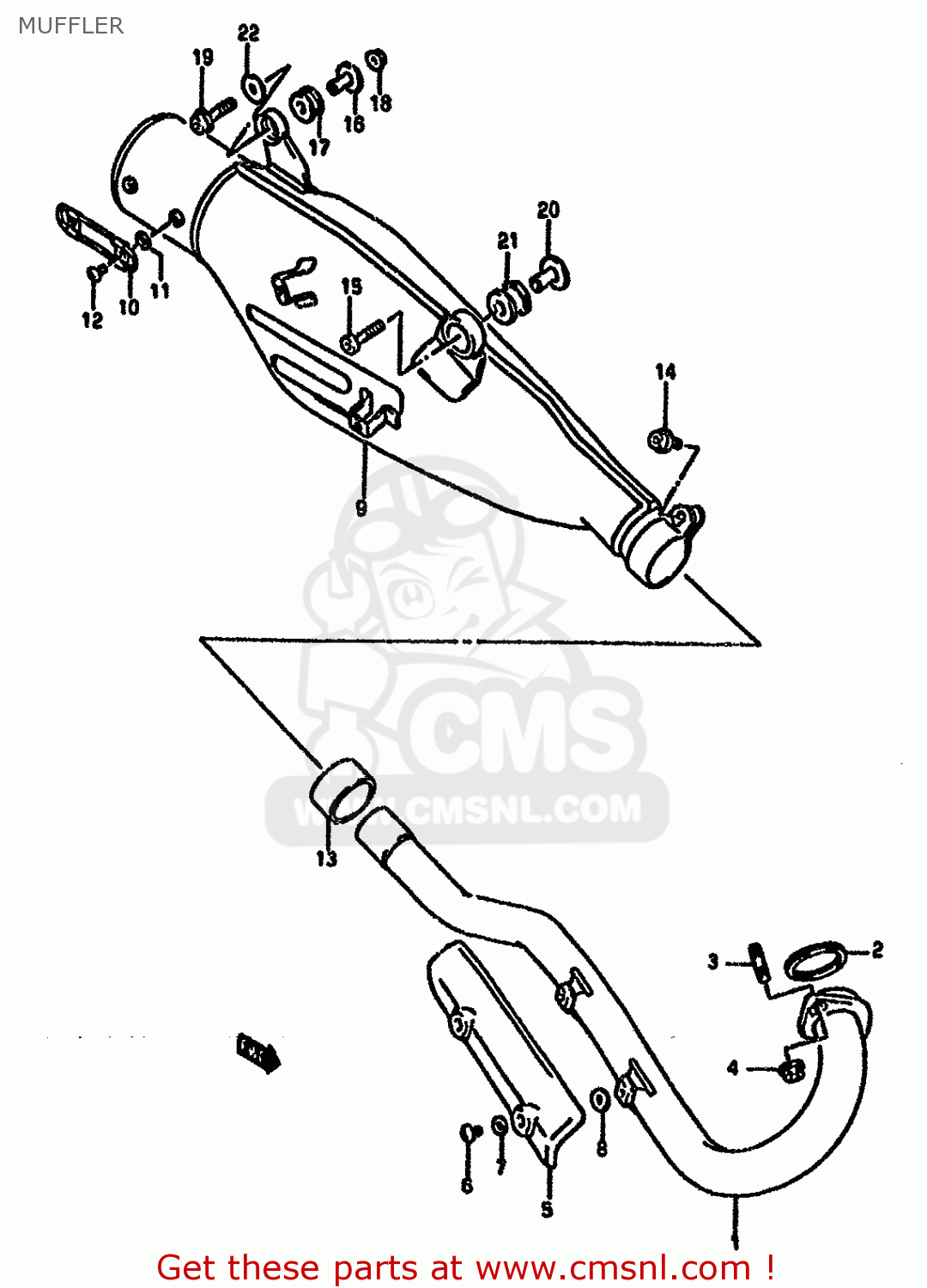

MUFFLER

ref

part #

description

quantity

1

1415014A22
ref: 1

PIPE,EXHAUST

€ 149.00

2

1418101D00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3

0910808106
ref: 3

BOLT,STUD(8X20)

€ 3.00

4

0915908085
ref: 4

NUT

€ 1.50

5

1418012D00
ref: 5

COVER,EXHAUST PIPE

€ 38.00

6

0913906076
ref: 6

SCREW(6X10)

€ 2.50

7

0916006082
ref: 7

WASHER(6.5X13X1.0)

€ 1.50

8

0916806122
ref: 8

GASKET(6X16X1.4) (NAS)

€ 2.50

9-1

1431012E00
ref: 9-1
MODEL N

BODY,MUFFLER

€ 804.00

9-2

1431012E01
ref: 9-2
MODEL P

BODY,MUFFLER

€ 804.00

9-3

1431012E02
ref: 9-3
MODEL R

BODY,MUFFLER

€ 804.00

10

1478012E00
ref: 10

COVER,MUFFLER

€ 23.50

11

0916806121
ref: 11

GASKET(5.8X13X1.8) (NAS)

€ 3.00

12

0913906076
ref: 12

SCREW(6X10)

€ 2.50

13

1477144B00
ref: 13

CONNECTOR,MUFFLER

€ 19.50

14-1

0712008405
ref: 14-1
MODEL N/P

BOLT

€ 3.50

14-2

0712008403
ref: 14-2
MODEL R

BOLT

€ 3.50

15

0910608074
ref: 15
FR

BOLT(8X40)

€ 3.50

16

0918008151
ref: 16

SPACER(8.6X12X17.5)

€ 6.00

17

0932012043
ref: 17

CUSHION

€ 8.00

18

0831931085
ref: 18

NUT

€ 2.50

19-1

0712008455
ref: 19-1
RR,MODEL N/P

BOLT 8X45

€ 3.50

19-2

0712008453
ref: 19-2
RR,MODEL R

BOLT

€ 3.50

20

0918008152
ref: 20

SPACER(8.6X12X24.2)

€ 6.00

21

0932012048
ref: 21

CUSHION

€ 5.00

22

0916008057
ref: 22

WASHER (8.5X20X1.6)

€ 2.00

all assemblies
