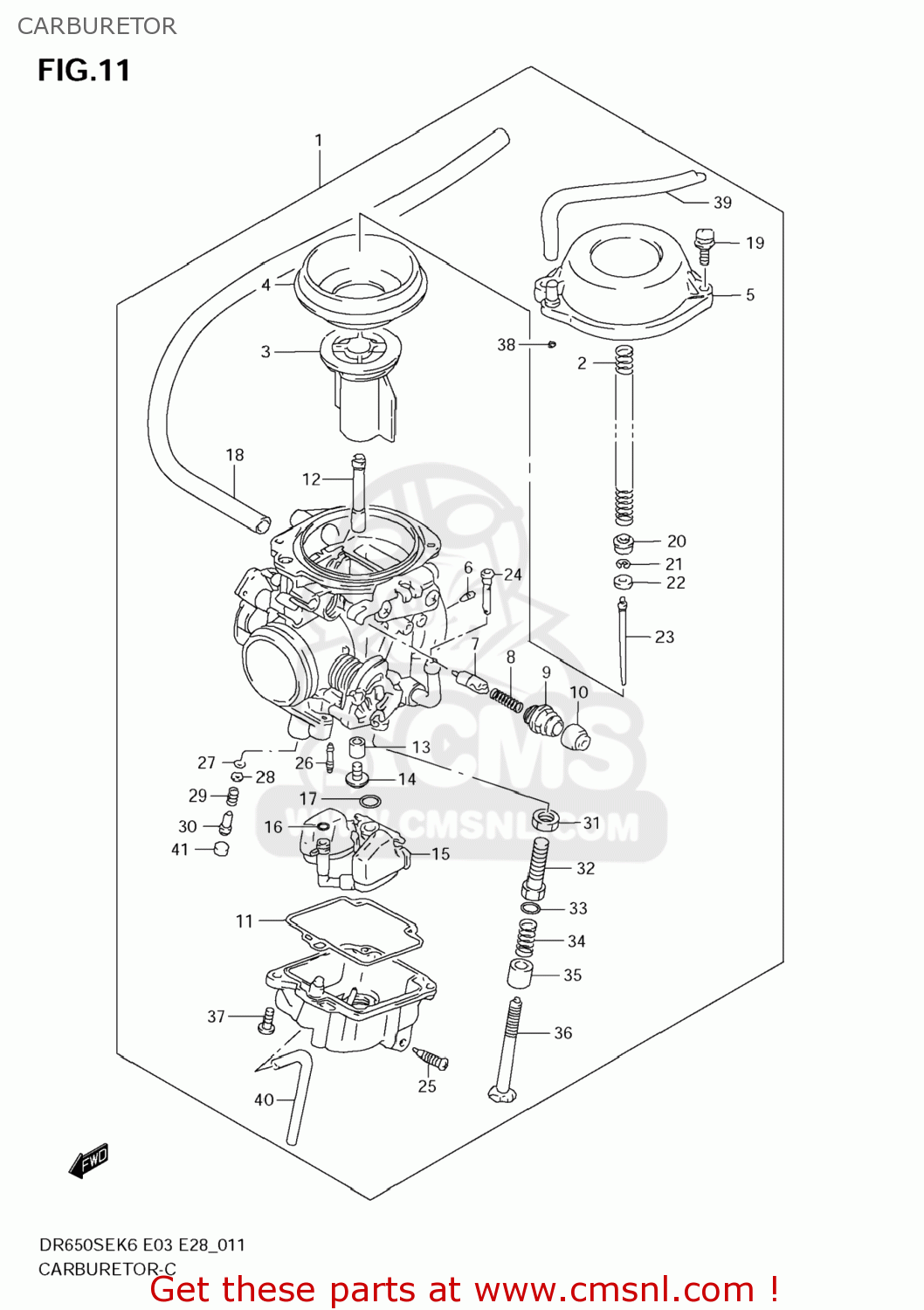

CARBURETOR

ref

part #

description

quantity

1-1

1320032E12
ref: 1-1

CARBURETOR ASSY

€ 355.00

1-2

1320032E61
ref: 1-2

CARBURETOR ASSY

€ 274.00

2

1341717D00
ref: 2

SPRING

€ 5.50

3

1350132E00
ref: 3

VALVE,PISTON

€ 57.00

4

1350707D01
ref: 4

DIAPHRAGM

€ 24.50

5

1350241C00
ref: 5

COVER,DIAPHRAGM

€ 31.50

6

0949320007
ref: 6

JET,AIR(1.0)

€ 10.00

7

1341112D00
ref: 7

PLUNGER

€ 18.00

8

1341722010
ref: 8

SPRING

€ 3.00

9

1341843410
ref: 9

HOLDER,GUIDE

€ 6.50

10

1368104010
ref: 10

CAP

€ 3.00

11

1325844B00
ref: 11

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

12

0949400884
ref: 12

JET,NEEDLE(Y-5M)

€ 33.50

13

1333107D00
ref: 13

RING

€ 4.50

14

0949128010
ref: 14

JET,MAIN(140)

€ 8.50

15

1325012EH0
ref: 15

FLOAT/NEEDLE VALVE ASSY

€ 79.50

16

1337446710
ref: 16

O RING

€ 4.50

17

1337435C00
ref: 17

O RING,NEEDLE VALVE SEAT

€ 6.00

18

1368332E00
ref: 18

HOSE(6.5X10.5X275)

€ 12.50

19

021127516B
ref: 19

SCREW

€ 2.50

20

1333112D00
ref: 20

RING

€ 4.50

21

1339431210
ref: 21

CLIP,NEEDLE

€ 3.50

22

1338707D00
ref: 22

RING

€ 4.50

23

1338332E10
ref: 23

NEEDLE,JET(6F23)

€ 13.50

24

1323612C00
ref: 24

FILTER

€ 5.00

25

1324713A00
ref: 25
13247-02340

SCREW,DRAIN

€ 5.50

26

0949242010
ref: 26

JET,PILOT(42.5)

€ 8.50

27

1329529900
ref: 27

O RING,PILOT AIR SCREW

€ 4.00

28

1329129900
ref: 28

WASHER

€ 2.00

29

1326847070
ref: 29

SPRING

€ 5.00

30

1327947070
ref: 30

SCREW,PILOT

€ 11.50

31

1360737010
ref: 31

NUT

€ 2.00

32

1326731D00
ref: 32

ADJUSTER

€ 21.50

33

1361543010
ref: 33

WASHER,STARTER SHAFT

€ 2.50

34

1327133C00
ref: 34

SPRING

€ 4.50

35

1343295210
ref: 35

RING

€ 4.00

36

1326731D10
ref: 36

ADJUSTER

€ 12.00

37

1360105148
ref: 37
13601-05148-XC0

SCREW(5X14)

€ 3.00

38

1327802340
ref: 38

O RING

€ 1.50

39

0935545855600
ref: 39

HOSE(4.5X8.5X600)

€ 14.00

40

1368432E10
ref: 40

HOSE(3X5X450)

€ 9.00

41

1328105A00
ref: 41

PLUG

€ 3.50
