MAGNETO

DR650SE 2008 (K8) USA (E03)

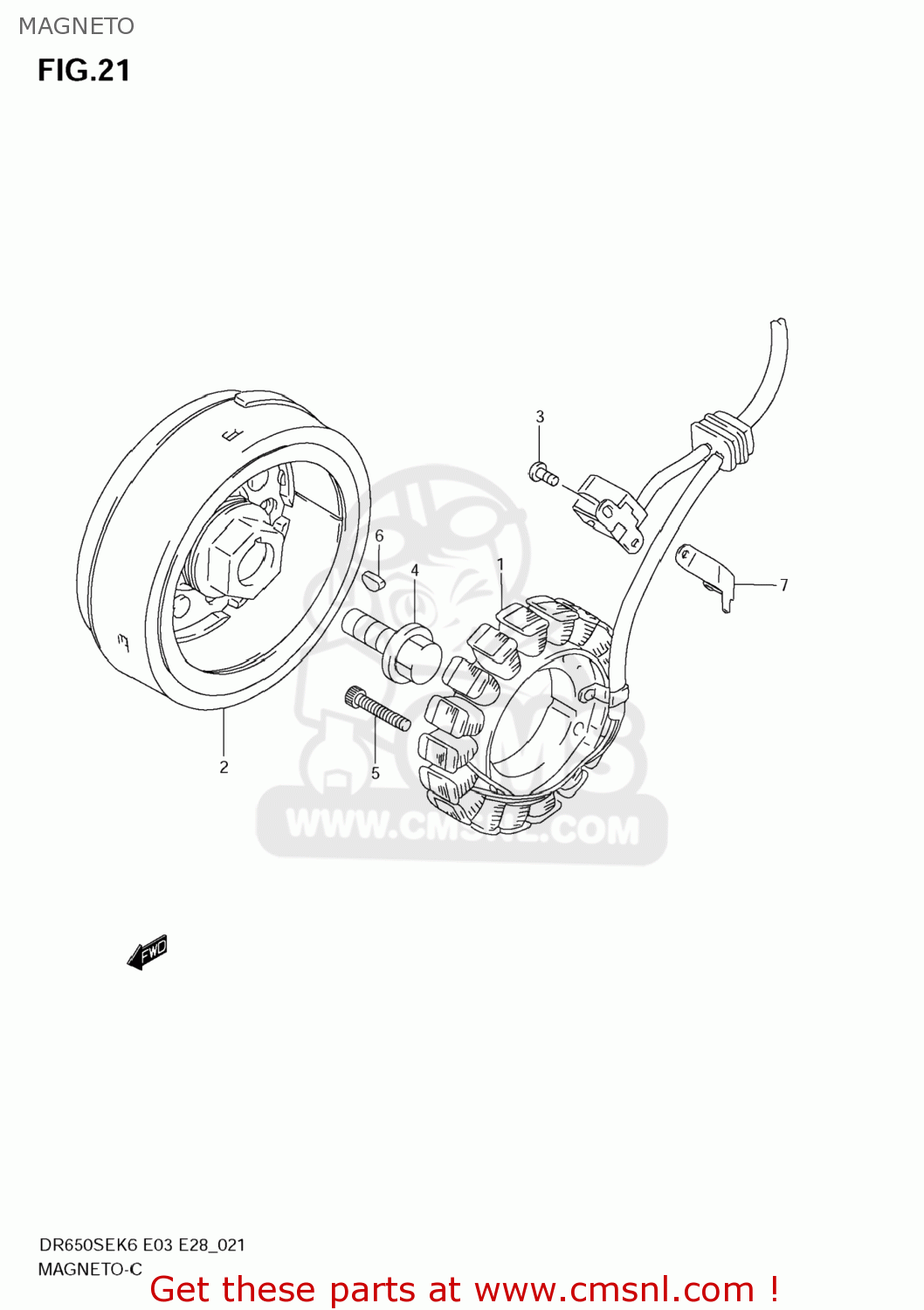

Magneto diagram DR650SE 2008 (K8) USA (E03)

MAGNETO DR650SE 2008 (K8) USA (E03)

MAGNETO DR650SE 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210132E00
ref: 1

STARTER ASSY

€ 703.00

2

3210232E00
ref: 2

ROTOR ASSY

€ 599.00

3

021120510B
ref: 3

SCREW

€ 2.00

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

071300630B
ref: 5

BOLT

€ 3.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237132E00
ref: 7

CLAMP,MAGNETO LEAD

€ 4.00
