FRONT MASTER CYLINDER
DR650SE 2008 (K8) USA (E03)

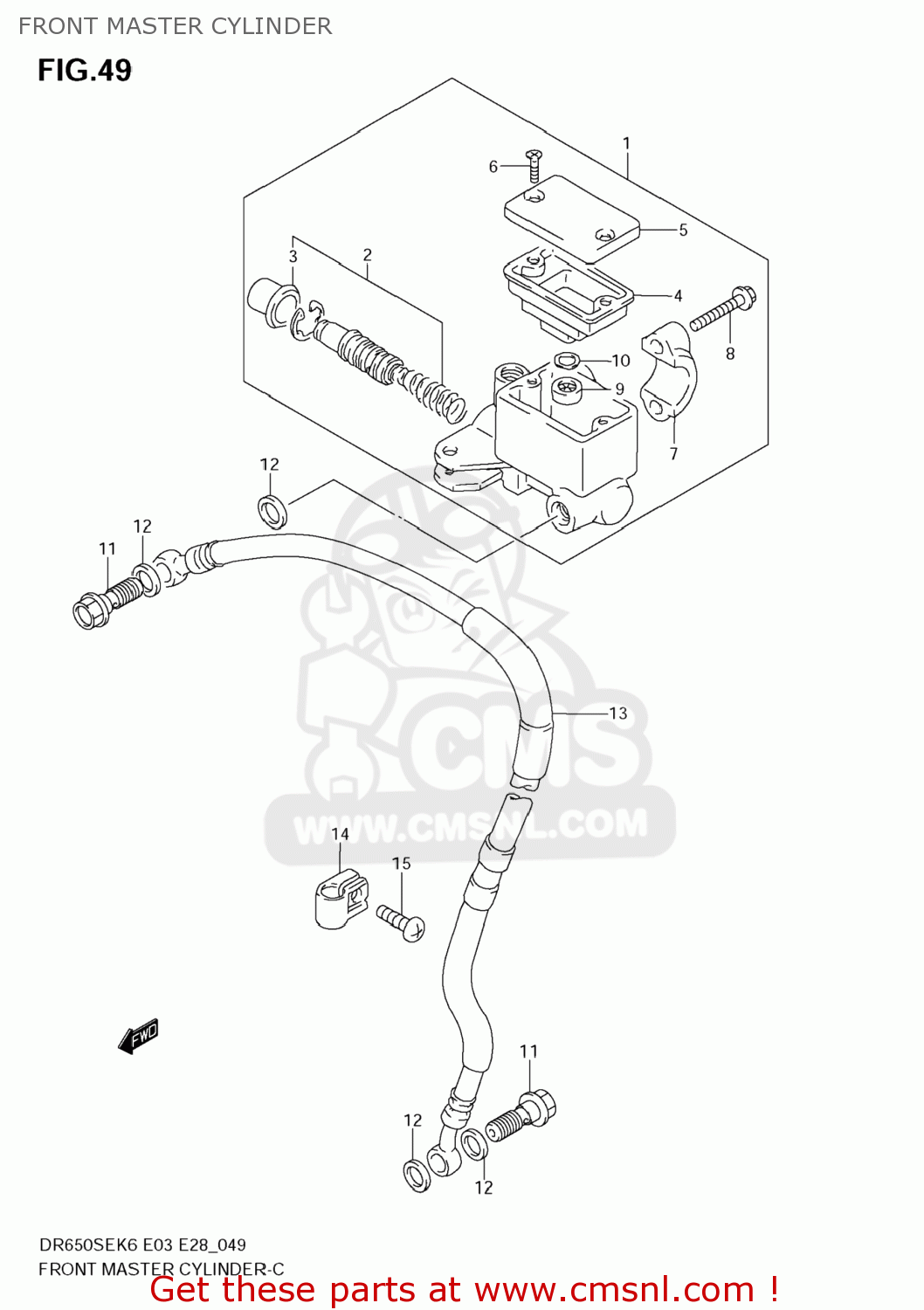

Front master cylinder diagram DR650SE 2008 (K8) USA (E03)
FRONT MASTER CYLINDER DR650SE 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960031D01
ref: 1
CYLINDER ASSY,FR MASTER
€ 175.50
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966744B00
ref: 4
DIAPHRAGM
€ 8.00
5
6966924A01
ref: 5
CAP
€ 12.00
6
6968949300
ref: 6
SCREW
€ 1.50
7
5967136500
ref: 7
HOLDER
€ 10.00
8
5967502FA0
ref: 8
BOLT(6X22)
€ 3.00
9
5974815400
ref: 9
SEPERATOR
€ 7.50
10
5974915400
ref: 10
PLATE
€ 2.00
11
0936010062
ref: 11
BOLT UNION
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5948032E01
ref: 13
HOSE,FR BRAKE
€ 83.00
14
5862107A10
ref: 14
58621-07A20
CLAMP,BRAKE HOSE
€ 3.50
15
021420620B
ref: 15
SCREW
€ 2.00
