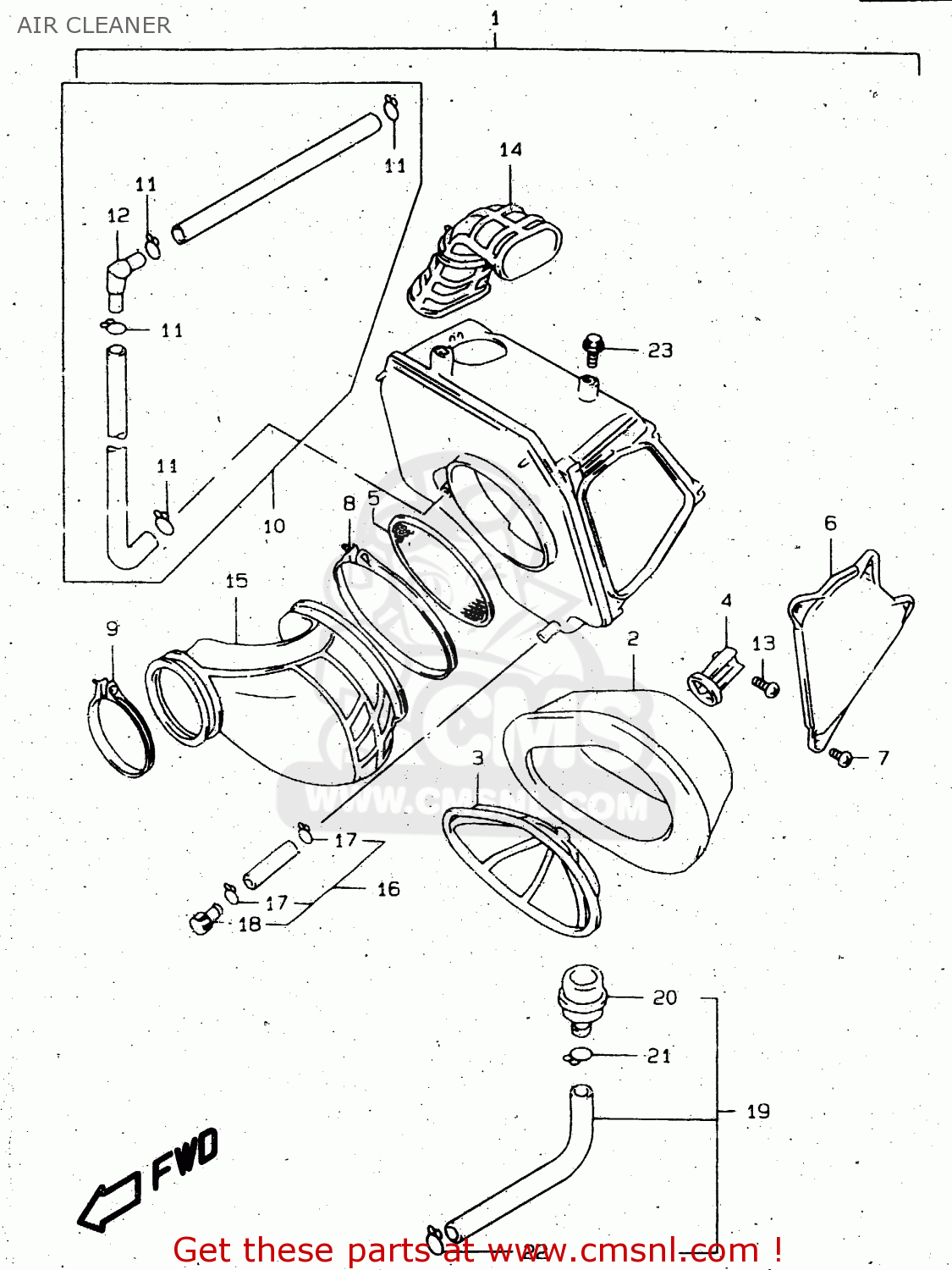

AIR CLEANER

ref

part #

description

quantity

1

1370032E00
ref: 1

CLEANER ASSY,AIR

€ 269.50

2

1378032E00
ref: 2

FILTER

€ 36.00

3

1379132E00
ref: 3

HOLDER,FILTER

€ 13.50

4

1379232E00
ref: 4

STOPPER,HOLDER

€ 6.50

5

1381014D02
ref: 5

TRAP,FRAME

€ 6.50

6

1374032E00
ref: 6

CAP,CLEANER

€ 21.50

7

0214205123
ref: 7

SCREW 5X12

€ 1.50

8

1382614D01
ref: 8

CLAMP,OUTLET TUBE

€ 7.50

9

0940264203
ref: 9

CLAMP

€ 6.00

10

1385032E00
ref: 10

TUBE ASSY,BREATHER

€ 29.00

11

0940114301
ref: 11

CLIP

€ 2.00

12

1385814D10
ref: 12

JOINT

€ 6.00

13

0214206203
ref: 13

SCREW

€ 2.00

14

1389132E00
ref: 14

TUBE,INLET

€ 33.50

15

1388132E00
ref: 15

TUBE,OUTLET

€ 60.00

16

1387032E00
ref: 16

TUBE ASSY,DRAIN

€ 11.50

17

0940114301
ref: 17

CLIP

€ 2.00

18

1387700190
ref: 18

PLUG

€ 3.50

19

1380032E00
ref: 19

CLEANER ASSY,AIR NO.2

€ 29.50

20

1878032E00
ref: 20

FILTER,2ND AIR CLEANER

€ 21.00

21

0940116401
ref: 21

CLIP

€ 3.00

22

0940114301
ref: 22

CLIP

€ 2.00

23

0155006123
ref: 23

BOLT

€ 2.50

all assemblies
