REAR CUSHION LEVER
DR650SEU 1998 (W) GERMANY (E22)

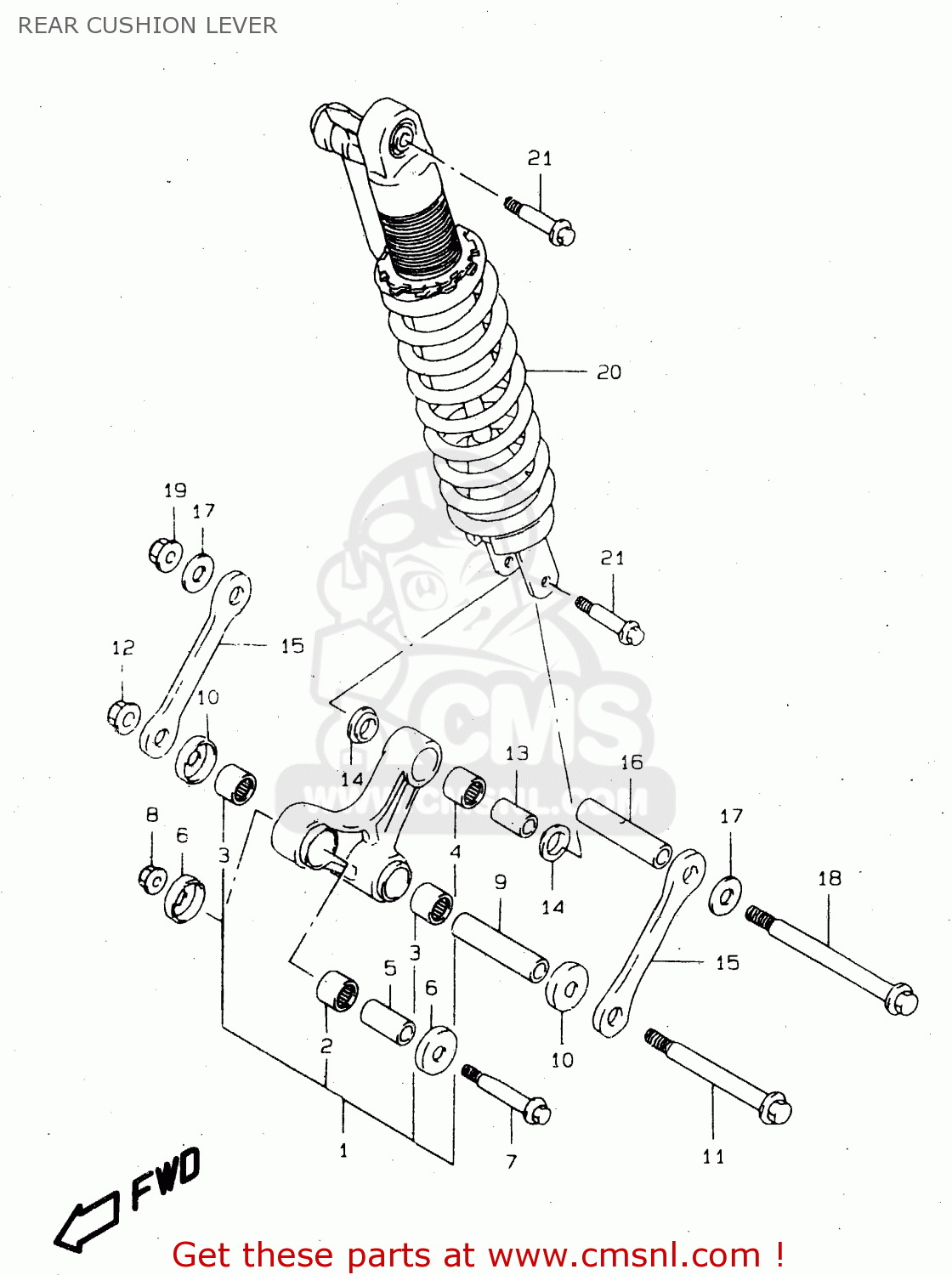

Rear cushion lever diagram DR650SEU 1998 (W) GERMANY (E22)
REAR CUSHION LEVER DR650SEU 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
6260032840
ref: 1
LEVER SET,RR CUSHION
€ 237.00
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926321012
ref: 3
BEARING(21X27X20)
€ 16.50
4
0926317027
ref: 4
BEARING(17X24X20)
€ 13.50
5
6231727C10
ref: 5
SPACER,RR CUSHION LEVER FR
€ 9.00
6
6216228E00
ref: 6
SEAL,RR CUSHION LEVER FR DUST
€ 6.50
7
6265801C60
ref: 7
BOLT,RR CUSHION LEVER FR
€ 6.00
8
0831931128
ref: 8
NUT 12MM
€ 4.00
9
6262613E00
ref: 9
SPACER,RR CUSHION LEVER CTR
€ 16.50
10
6268213E00
ref: 10
SEAL,RR CUSHION LEVER CTR
€ 10.00
11
6262127C20
ref: 11
BOLT,RR CUSHION LEVER CTR
€ 18.00
12
0831931148
ref: 12
NUT
€ 9.00
13
6268440A10
ref: 13
SPACER,RR CUSHION LEVER
€ 11.50
14
6262413E00
ref: 14
SEAL,RR CUSHION LEVER RR DUST
€ 8.50
15
6264132E00
ref: 15
ROD,RR CUSHION LEVER
€ 66.50
16
6262614D00
ref: 16
SPACER,RR CUSHION LEVER CTR
€ 20.00
17
0821114321
ref: 17
WASHER
€ 4.00
18
6262117C00
ref: 18
SHAFT,RR CUSHION LEVER FR
€ 9.50
19
0831931148
ref: 19
NUT
€ 9.00
20
6210032E00163
ref: 20
ABSORBER ASSEMBLY,REAR SHOCK
€ 787.50
21
6264814500
ref: 21
BOLT,RR CUSHION ROD UPR
€ 3.00
