OIL COOLER
DR650SEU 1998 (W) GERMANY (E22)

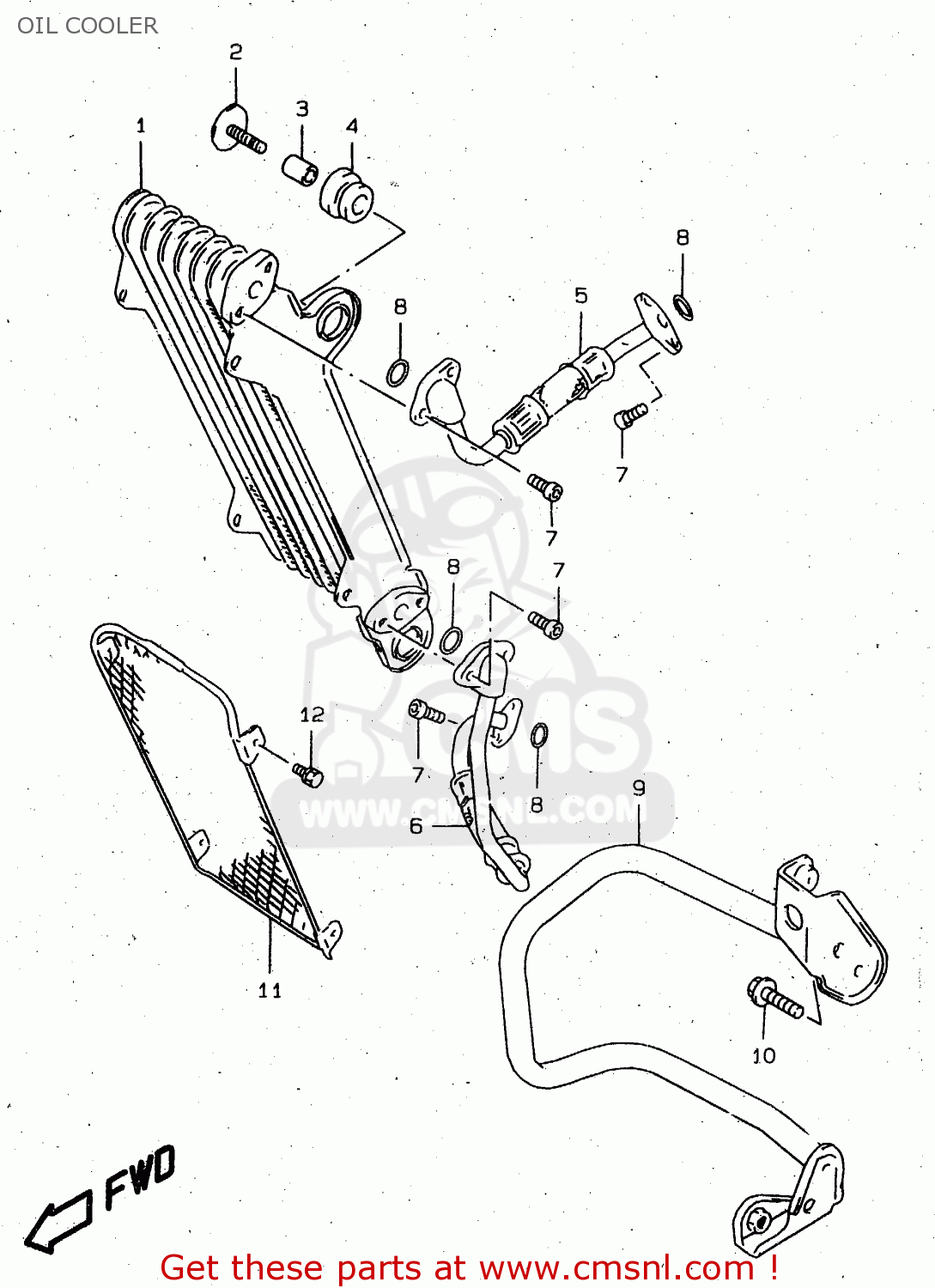

Oil cooler diagram DR650SEU 1998 (W) GERMANY (E22)
OIL COOLER DR650SEU 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1660032E00
ref: 1
COOLER ASSY,OIL
€ 710.50
2
0911608105
ref: 2
BOLT 8X28
€ 2.50
3
0918008032
ref: 3
MODEL T
SPACER (8.2X12X17)
€ 5.00
3
0918008193
ref: 3
MODEL V/W/X
SPACER(8.5X12X17)
€ 3.00
4
1662912D00
ref: 4
CUSHION,OIL COOLER
€ 3.00
5
1646032E00
ref: 5
HOSE,OIL COOLER UPR
€ 113.00
6
1647032E00
ref: 6
HOSE,OIL COOLER LWR
€ 103.50
7
0713006163
ref: 7
MODEL T/V
BOLT,OIL FILLE
€ 3.00
7
0713006163
ref: 7
MODEL W/X
BOLT,OIL FILLE
€ 3.00
7
0154706163
ref: 7
MODEL W/X
BOLT
€ 2.50
8
0928012008
ref: 8
MODEL T/V
O RING(D:2.4,ID:12.3)
€ 3.00
8
0928012012
ref: 8
MODEL W/X
O RING(D:2.4,ID:11.8)
€ 5.00
9
1664032E01Z16
ref: 9
MODEL T
GUARD,OIL COOLER(PURPLE)
€ 46.00
9
1664032E0124K
ref: 9
MODEL T
GUARD,OIL COOLER(CHARCOAL)
€ 46.00
9
1664032E11
ref: 9
MODEL V/W/X
GUARD,OIL COOLER
€ 46.00
10
0155008203
ref: 10
BOLT
€ 3.00
11
1665032E00
ref: 11
BUMPER,OIL COOLER
€ 46.00
12
0216205103
ref: 12
BOLT
€ 2.00
