CLUTCH
DR800S 1996 (T) (E04 E18 E22 E34 E37)

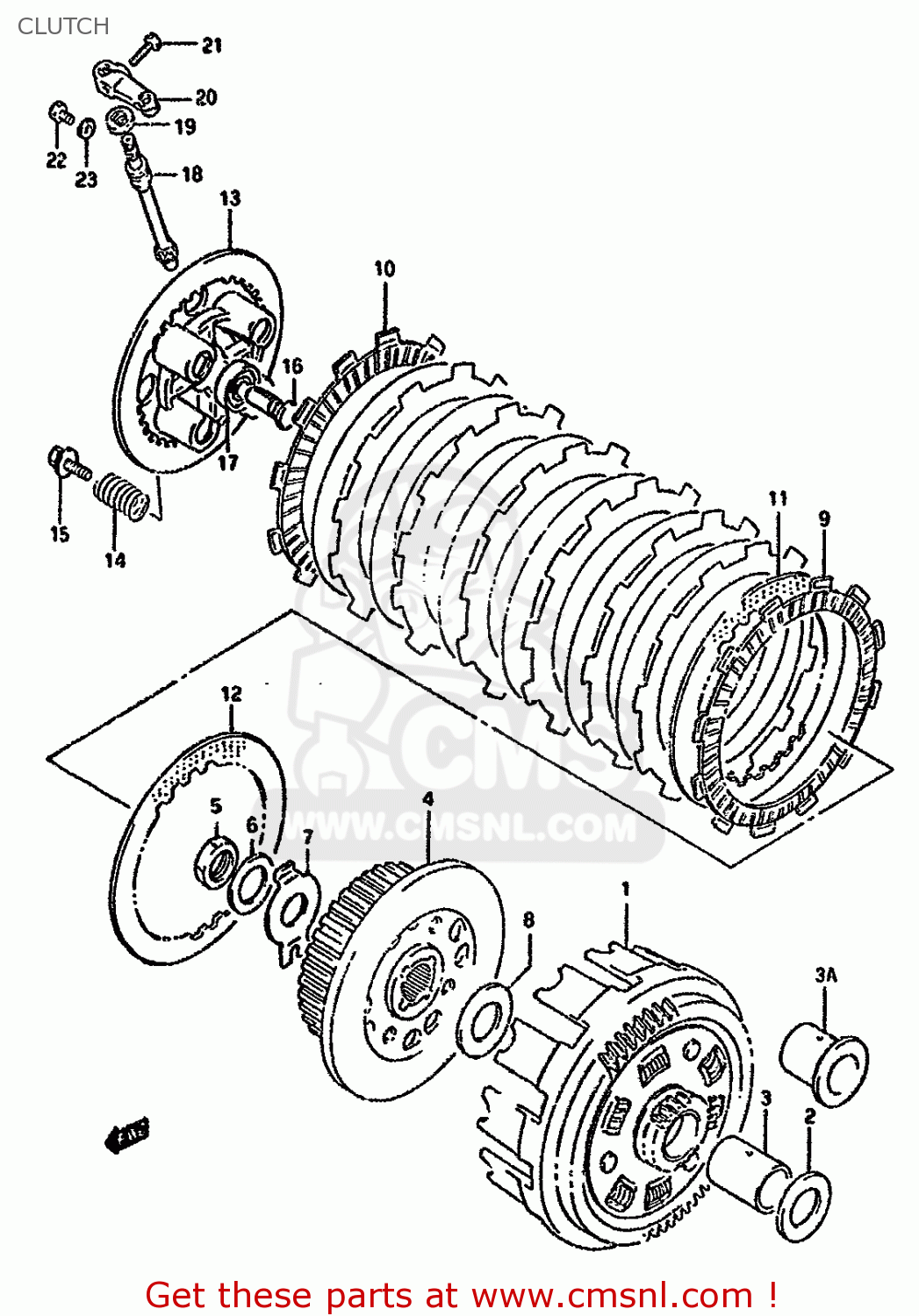

Clutch diagram DR800S 1996 (T) (E04 E18 E22 E34 E37)
CLUTCH DR800S 1996 (T) (E04 E18 E22 E34 E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120044B11
ref: 1-1
NT:61/20
GEAR ASSY,PRIM
€ 296.00
1-2
2120044B12
ref: 1-2
NT:61/20
GEAR ASSEMBLY,PRIMARY DRIVE
€ 296.00
2
0916022067
ref: 2
MODEL M/N/P/R/S
WASHER(22X38X2)
€ 10.50
3
0918022040
ref: 3
MODEL M/N/P/R/S
SPACER
€ 18.00
3A
2125132E00
ref: 3A
MODEL T
SPACER,PRIMARY DRIVEN GEAR
€ 18.00
4
2141044B00
ref: 4
HUB,CLUTCH SLEEVE
€ 95.50
5
0914020002
ref: 5
NUT (20MM)
€ 3.50
6
0916420002
ref: 6
WASHER
€ 3.50
7
0916920005
ref: 7
WASHER
€ 2.50
8
0916022068
ref: 8
WASHER(22X44X2)
€ 9.00
9
2144131D00
ref: 9
PLATE,CLUTCH DRIVE (NAS)
€ 16.00
10-1
2144144B00
ref: 10-1
MODEL M/N/P/R/S
PLATE,CLTCH DR
€ 13.50
10-2
2144144B01
ref: 10-2
MODEL T
PLATE,CLUTCH DRIVE (NAS)
€ 13.50
11
2145144B00
ref: 11
T:1.6
PLATE,CLUTCH DRIVEN NO.1 (NAS)
€ 7.00
12
2145149200
ref: 12
T:2
PLATE,CLUTCH DRIVEN (NAS)
€ 6.00
13
2146231D00
ref: 13
DISC,CLUTCH PRESSURE
€ 38.50
14-1
0944020017
ref: 14-1
MODEL M/N/P
SPRING
€ 5.00
14-2
0944020013
ref: 14-2
MODEL R/S/T
SPRING
€ 5.00
15-1
0911606016
ref: 15-1
MODEL M/N/P/R/S
BOLT
€ 2.50
15-2
0911606168
ref: 15-2
MODEL T
BOLT(6X16)
€ 2.50
16
2316531D00
ref: 16
RACK,CLUTCH RELEASE
€ 17.00
17
0813062007
ref: 17
BEARING
€ 12.50
18
2326144B00
ref: 18
PINION,CLUTCH RELEASE
€ 39.00
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
€ 3.50
20
2327131D00
ref: 20
ARM,CLUTCH RELEASE
€ 27.50
21-1
0110706167
ref: 21-1
MODEL M/N/P
BOLT
€ 3.00
21-2
0150006163
ref: 21-2
MODEL R/S/T
BOLT
€ 2.00
22-1
0913506002
ref: 22-1
MODEL M/N/P
BOLT
€ 2.50
22-2
0913506013
ref: 22-2
MODEL R/S/T
BOLT
€ 2.50
23
0916806004
ref: 23
GASKET(6.2X11X1).2 (NAS)
€ 1.50
