GEAR SHIFTING
DR800S 1996 (T) (E04 E18 E22 E34 E37)

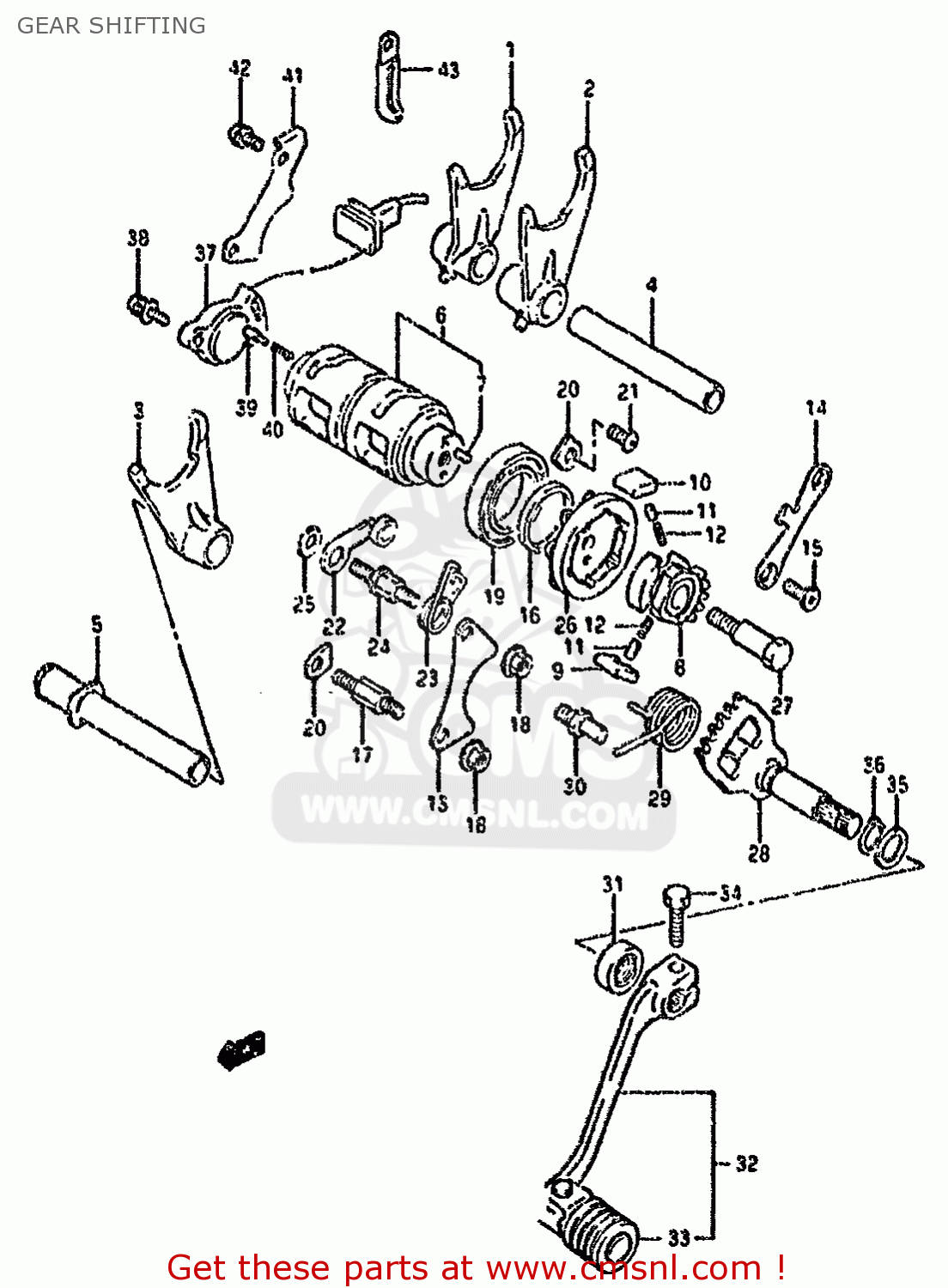

Gear shifting diagram DR800S 1996 (T) (E04 E18 E22 E34 E37)
GEAR SHIFTING DR800S 1996 (T) (E04 E18 E22 E34 E37)
×
prices are in EUR
ref
part #
description
quantity
1
2521144B00
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
2
2522144B00
ref: 2
FORK,GEAR SHIFT NO.2
€ 86.00
3
2523144B00
ref: 3
FORK, GEAR SHIFTING NO.3
€ 55.50
4
2541144B00
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
€ 19.50
5-1
2542144B00
ref: 5-1
MODEL M
SHAFT,FORK NO.2
€ 43.50
5-2
2542144B01
ref: 5-2
MODEL N/P/R/S/T
SHAFT,GEAR SHIFT FORK NO.2
€ 43.50
6
2531044B00
ref: 6
CAM,GEAR SHIFT
€ 144.00
7
0422104089
ref: 7
PIN
€ 1.50
8
2532231301
ref: 8
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9
2532334201
ref: 9
PAWL,GEAR SHIFT NO.1
€ 6.00
10
2532434201
ref: 10
PAWL,GEAR SHIFT NO.2
€ 6.00
11
0926105003
ref: 11
PIN(5X8)
€ 1.50
12
0944004003
ref: 12
SPRING
€ 1.50
13
2533138A00
ref: 13
LIFTER,GEAR SHIFT POLE
€ 4.50
14
2534138A00
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.00
15-1
0212206128
ref: 15-1
MODEL M/N/P
SCREW
€ 3.00
15-2
0212206123
ref: 15-2
MODEL R/S/T
SCREW
€ 3.00
16
0916025059
ref: 16
WASHER(25X32X3)
€ 5.00
17
2533238A00
ref: 17
BOSS,SHIFT PAWL LIFTER
€ 3.50
18-1
0915906017
ref: 18-1
MODEL M/N/P
NUT
€ 2.50
18-2
0831610063
ref: 18-2
MODEL R/S/T
NUT
€ 2.50
19-1
0926225002
ref: 19-1
MODEL M/N/P
BEARING
€ 24.00
19-2
0926225006
ref: 19-2
MODEL R/S/T
BEARING(25X47X8)
€ 24.00
20-1
2474120A10
ref: 20-1
MODEL M/N/P
RETAINER,SHIFT CAM,R BEARING
€ 2.00
20-2
2474121A00
ref: 20-2
MODEL R/S/T
RETAINER
€ 2.00
21-1
0211206128
ref: 21-1
MODEL M/N/P
SCREW 6X12
€ 2.00
21-2
0211206123
ref: 21-2
MODEL R/S/T
SCREW
€ 1.50
22
2535024B00
ref: 22
STOPPER,GEAR SHIFT CAM
€ 8.00
23
0944817021
ref: 23
SPRING
€ 5.00
24
2535612C00
ref: 24
SUPPORT,CAM STOPPER ARM
€ 9.50
25
0821106141
ref: 25
WASHER
€ 2.50
26
2538038A02
ref: 26
PLATE,GEAR SHIFT CAM
€ 15.00
27
2531238A00
ref: 27
PIN,SHIFT CAM DRIVEN GEAR
€ 4.00
28
2551044B00
ref: 28
SHAFT,GEAR SHIFT
€ 61.00
29
0944426013
ref: 29
-09444-26012
SPRING
€ 3.50
30
2567136A00
ref: 30
STOPPER,GEAR SHIFT ARM
€ 3.00
31
0928512002
ref: 31
OIL SEAL
€ 7.00
32
2560031D00
ref: 32
LEVER ASSY,GEAR SHIFT
€ 102.00
33
2565203D00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 3.50
34-1
0110706205
ref: 34-1
MODEL M/N/P
BOLT
€ 2.00
34-2
0150006203
ref: 34-2
MODEL R/S/T
BOLT
€ 2.00
35
0821212201
ref: 35
WASHER
€ 1.50
36
0833131126
ref: 36
CIRCLIP,12 MM
€ 2.00
37
3772044B00
ref: 37
BASE ASSY,NEUTRAL SW TERMINAL
€ 72.50
38-1
0211275168
ref: 38-1
MODEL M/N/P
SCREW
€ 2.50
38-2
0211275163
ref: 38-2
MODEL R/S/T
SCREW
€ 2.50
39
0920905011
ref: 39
PIN(5X15.5)
€ 2.00
40
0944004010
ref: 40
SPRING
€ 1.50
41
3772144B00
ref: 41
CLAMP, LEAD WIRE
€ 3.00
42-1
0211236108
ref: 42-1
MODEL M/N/P
SCREW
€ 0.00
42-2
0211236103
ref: 42-2
MODEL R/S/T
SCREW
€ 1.50
43-1
0940406402
ref: 43-1
MODEL M/N/P/R/S
CLAMP
€ 2.50
43-2
0940406429
ref: 43-2
MODEL T
CLAMP(L:45)
€ 2.50
