REAR WHEEL
DR800S 1996 (T) (E04 E18 E22 E34 E37)

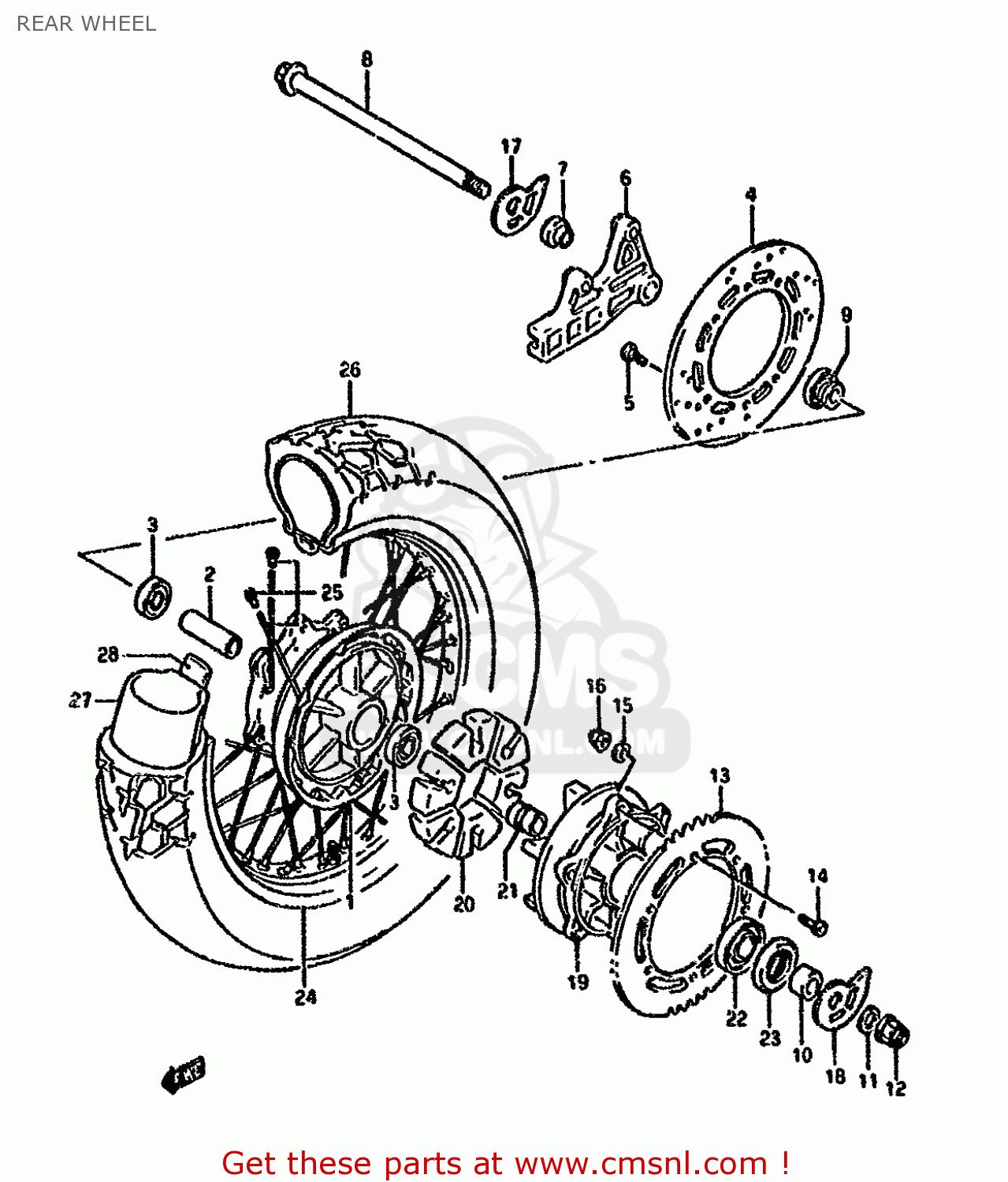

Rear wheel diagram DR800S 1996 (T) (E04 E18 E22 E34 E37)
REAR WHEEL DR800S 1996 (T) (E04 E18 E22 E34 E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411044B20
ref: 1-1
MODEL M/N/P/R/S
HUB COMP,REAR WHEEL
€ 432.50
1-2
6411131D10
ref: 1-2
MODEL T
HUB,REAR WHEEL
€ 432.50
2
0918017071
ref: 2
SPACER(17.5X25X78)
€ 20.00
3
0812463037
ref: 3
BEARING
€ 18.50
4-1
6921131D00
ref: 4-1
MODEL M/N
DISC,REAR BRAKE (GOLD)
€ 370.00
4-2
6921144B00
ref: 4-2
MODEL P/R/S/T
DISC,RR BRAKE
€ 370.00
5-1
5942103A01
ref: 5-1
MODEL M/N
BOLT,BRAKE DISC
€ 4.00
5-2
5942103A10
ref: 5-2
MODEL P/R/S/T
BOLT,BRAKE DISC
€ 4.00
6
6972131D00
ref: 6
BRACKET,RR CALIPER
€ 106.50
7
0918017096
ref: 7
SPACER (17X21X10)
€ 14.00
8-1
6471131D00
ref: 8-1
MODEL M/N
AXLE, REAR
€ 50.50
8-2
6471131D01
ref: 8-2
MODEL P/R/S/T
AXLE ,REAR
€ 50.50
9
6475038211
ref: 9
SPACER,RR AXLE,L
€ 12.00
10
0918017090
ref: 10
SPACER(17X33X22.4)
€ 14.50
11
0916017013
ref: 11
WASHER (17X30X3.2)
€ 2.00
12
0831931168
ref: 12
NUT
€ 12.50
13-1
6451131D00
ref: 13-1
MODEL M/N/P
SPROCKET,RR(47T)
€ 57.50
13-2
6451131D10
ref: 13-2
MODEL R/S/T
SPROCKET,RR(NT47)
€ 98.50
14
0912008010
ref: 14
BOLT(8X30.5)
€ 2.50
15-1
0832211088
ref: 15-1
MODEL M/N/P
WASHER
€ 2.00
15-2
0832201083
ref: 15-2
MODEL R/S/T
WASHER
€ 1.50
16
0831931087
ref: 16
NUT
€ 2.50
17
6141131D00
ref: 17
ADJUSTER,CHAIN,R
€ 15.00
18
6142131D00
ref: 18
ADJUSTER,CHAIN,L
€ 13.50
19
6461144B20
ref: 19
DRUM,RR SPROCKET
€ 213.00
20
6465144B01
ref: 20
ABSORBER,RR HUB SHOCK
€ 10.50
21
6473331300
ref: 21
RETAINER,RR SPROCKET DRUM
€ 16.50
22
0926225073
ref: 22
BEARING(25X62X17)
€ 21.50
23
0928533001
ref: 23
SEAL,OIL(33X62X7)
€ 20.00
24
6531144B30
ref: 24
RIM,RR WHEEL(17XMT2.50)
€ 377.50
25
6532044B10
ref: 25
SPOKE SET,RR
€ 79.00
26
6511031D00
ref: 26
TIRE,REAR 130/80-17 65
€ 133.00
27
6520049030
ref: 27
TUBE ASSY,WHEEL INNER
€ 43.50
28
6526144B10
ref: 28
PROTECTOR,WHL INR TUBE
€ 4.50
