CRANKSHAFT
DR800SU 1996 (T) GERMANY (E22)

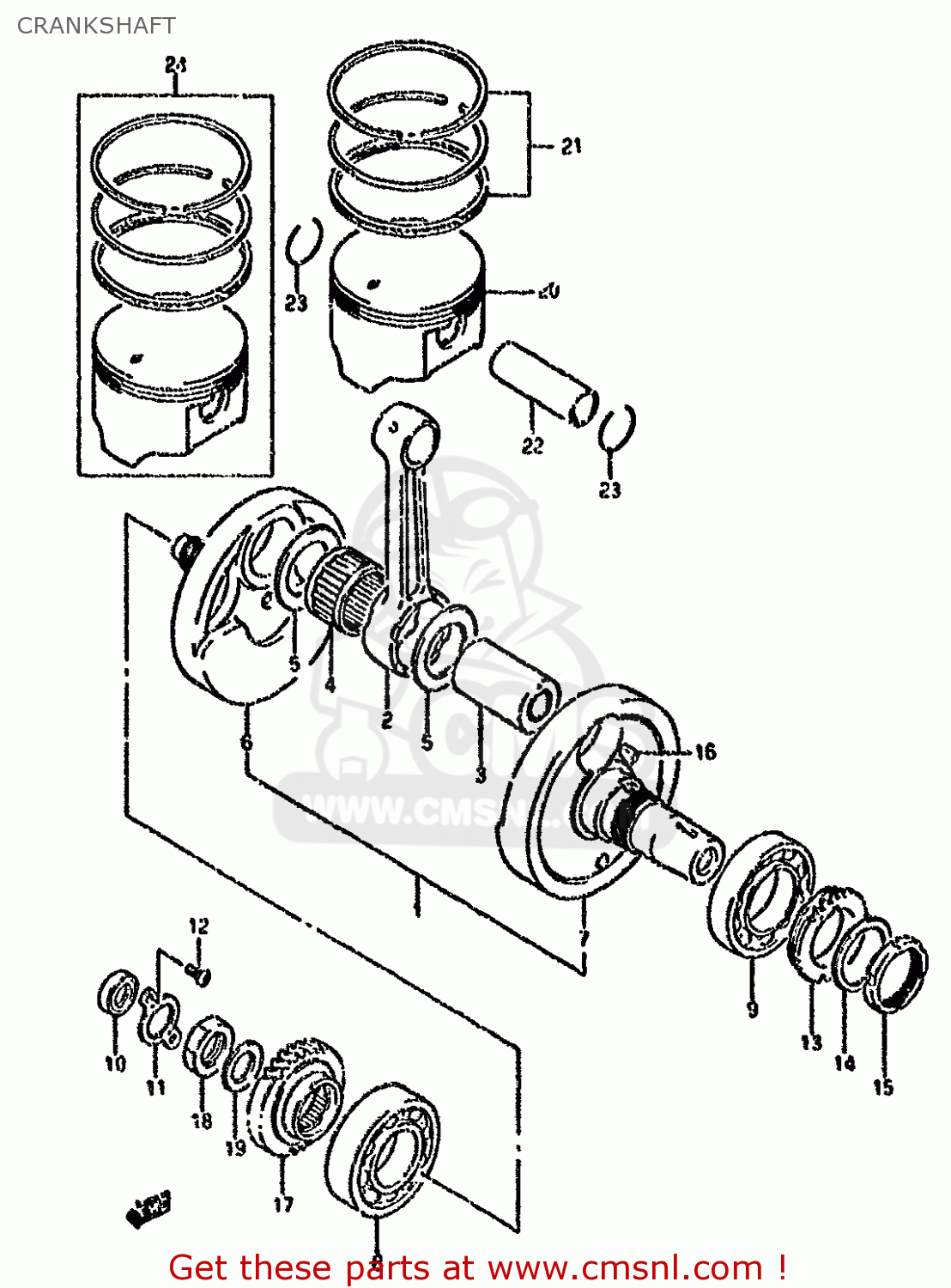

Crankshaft diagram DR800SU 1996 (T) GERMANY (E22)
CRANKSHAFT DR800SU 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1220031D00
ref: 1
CRANKSHAFT ASSY
€ 829.00
2
1216145B00
ref: 2
ROD,CONNECTING
€ 95.50
3
1221031D00
ref: 3
PIN,CRANK
€ 75.50
4
0926341005
ref: 4
BEARING(41X51X24.8)
€ 83.00
5
0916041002
ref: 5
WASHER(41X61X1)
€ 9.00
6
1222145B01
ref: 6
CRANKSHAFT, RH
€ 180.50
7
1226145B00
ref: 7
CRANKSHAFT, LH
€ 202.50
8
0926240007
ref: 8
BEARING(40X90X23)
€ 55.00
9
0926245007
ref: 9
BEARING(45X85X19)
€ 65.00
10
0928216002
ref: 10
SEAL,OIL(16X30X6)
€ 8.50
11
1254837400
ref: 11
RETAINER,CRANKSHAFT BEARING,R
€ 6.50
12-1
0211205107
ref: 12-1
MODEL M/N/P
SCREW
€ 2.00
12-2
0211205103
ref: 12-2
MODEL R/S/T
SCREW
€ 2.00
13
1266244B00
ref: 13
NT:25
SPROCKET,BAL.D
€ 42.00
14
0916440003
ref: 14
WASHER
€ 3.50
15
1266444B00
ref: 15
NUT,BAL DRIVE SPRKT
€ 26.00
16
0942004008
ref: 16
KEY
€ 3.50
17
2111144B10
ref: 17
GEAR, PRIMARY DRIVE (NT:33)
€ 65.50
18
0914022012
ref: 18
NUT
€ 7.50
19
0916422007
ref: 19
WASHER
€ 5.00
20
1211131D000F0
ref: 20
PISTON (105.00MM)
€ 206.00
21
1214044B10
ref: 21
RING SET,PISTON
€ 125.50
22
1215144B00
ref: 22
PIN,PISTON
€ 19.50
23
0938126002
ref: 23
CIRCLIP
€ 2.50
24-1
1210031D00050
ref: 24-1
OPT
PISTON SET(OS:0.5)
€ 307.00
24-2
1210031D00100
ref: 24-2
OPT
PISTON SET (OS:1.0)
€ 248.50
