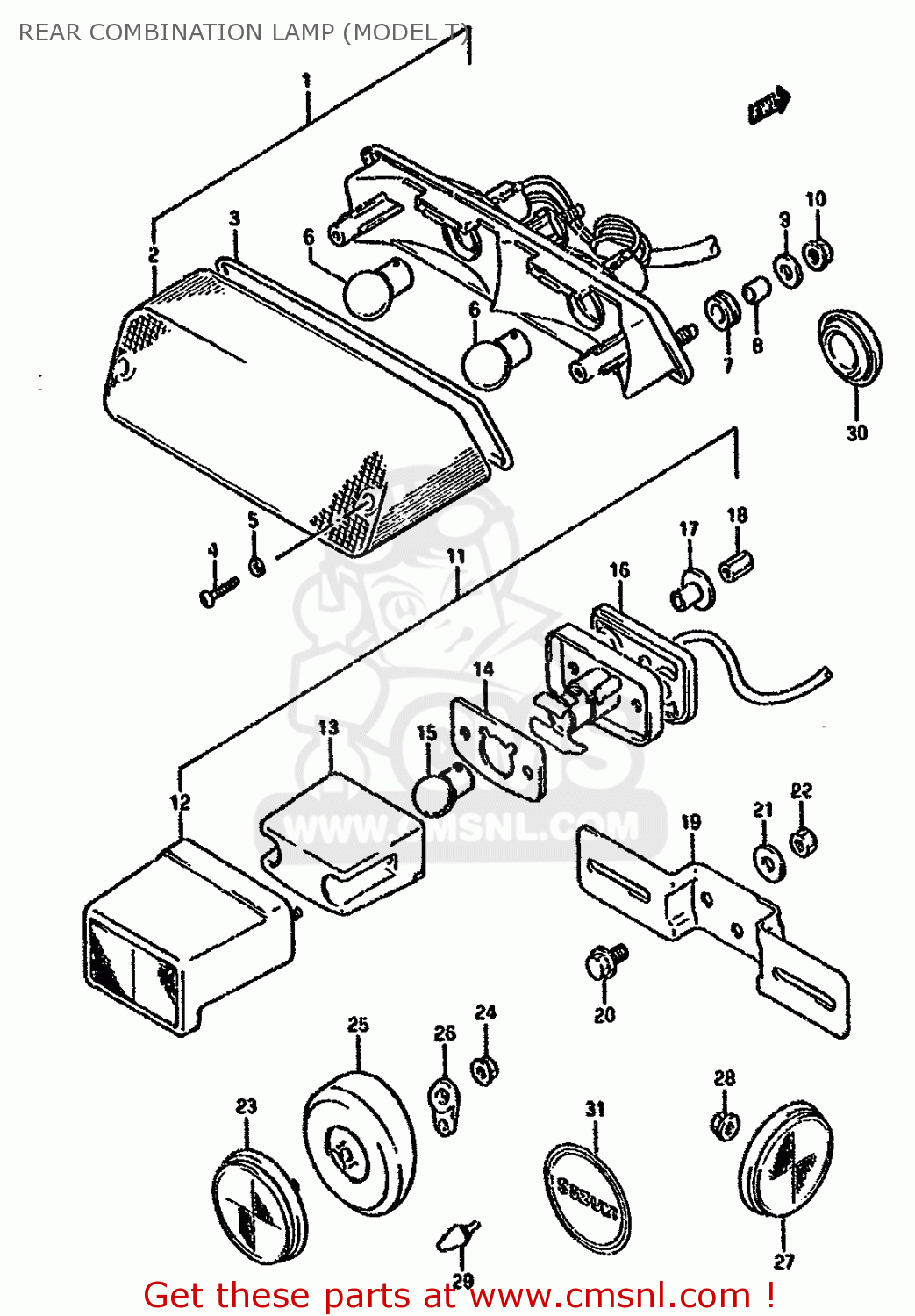

REAR COMBINATION LAMP (MODEL T)

ref

part #

description

quantity

1

3571031D00
ref: 1

LAMP ASSY,RR COMBINATION

€ 142.50

2

3571231D00
ref: 2

LENS

€ 45.00

3

3571331D00
ref: 3

GASKET (NAS)

€ 9.50

4

0321104203
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112083
ref: 6

BULB(12V21/5W)

€ 6.00

7

0932008048
ref: 7

CUSHION

€ 3.00

8

0918006044
ref: 8

SPACER (6.1X8X9.5)

€ 2.50

9

0916006056
ref: 9

WASHER(6.5X18X1)

€ 2.00

10

0831610063
ref: 10

NUT

€ 2.50

11-1

3591031D00
ref: 11-1
E22

LAMP ASSY, LICENSE

€ 125.50

11-2

3591031D10
ref: 11-2
E4,E18,E34,E37

LAMP ASSY, LICENSE

€ 142.50

12

3591730B00
ref: 12

COVER, LENS

€ 44.00

13

3591238A20
ref: 13

LENS

€ 13.00

14

3591338A30
ref: 14

GASKET,LICENSE LAMP (NAS)

€ 2.00

15

0947112140
ref: 15

BULB(12V5W,BF150-40160A)

€ 4.00

16

3576138A31
ref: 16

CUSHION

€ 8.50

17

3576638A30
ref: 17

SPACER

€ 2.00

18

0914004006
ref: 18

NUT

€ 4.00

19

3592700A10
ref: 19

BRACKET,LICENSE PLATE

€ 6.00

20

0155006163
ref: 20

BOLT

€ 2.50

21

0916006088
ref: 21

WASHER(6.5X20X1.6)

€ 2.00

22

0831000063
ref: 22

NUT 6MM

€ 2.00

23

3597012D00
ref: 23
E18,E22

REFLECTOR ASSY,RR

€ 13.00

24

0831620053
ref: 24
E18,E22

NUT

€ 2.00

25

3597712D00
ref: 25
E18,E22

SPACER, REAR REFLECTOR

€ 13.00

26

3599712D00
ref: 26
E18,E22

WASHER,RR REFLECTOR

€ 2.50

27

3595014A20
ref: 27
E18

REFLEX REFLECTOR

€ 12.00

28

0831620053
ref: 28
E18

NUT

€ 2.00

29

0932106028
ref: 29

CUSHION

€ 3.00

30

0925030010
ref: 30

CAP OD:40

€ 3.50

31

3599545110
ref: 31
E18

EMBLEM, REAR

€ 0.00

30

0925030010
ref: 30
-09250-30015

CAP OD:40

€ 3.50

31

3599545110
ref: 31
E16,E18

EMBLEM, REAR

€ 0.00

all assemblies
