STARTING MOTOR
DR800SU 1996 (T) GERMANY (E22)

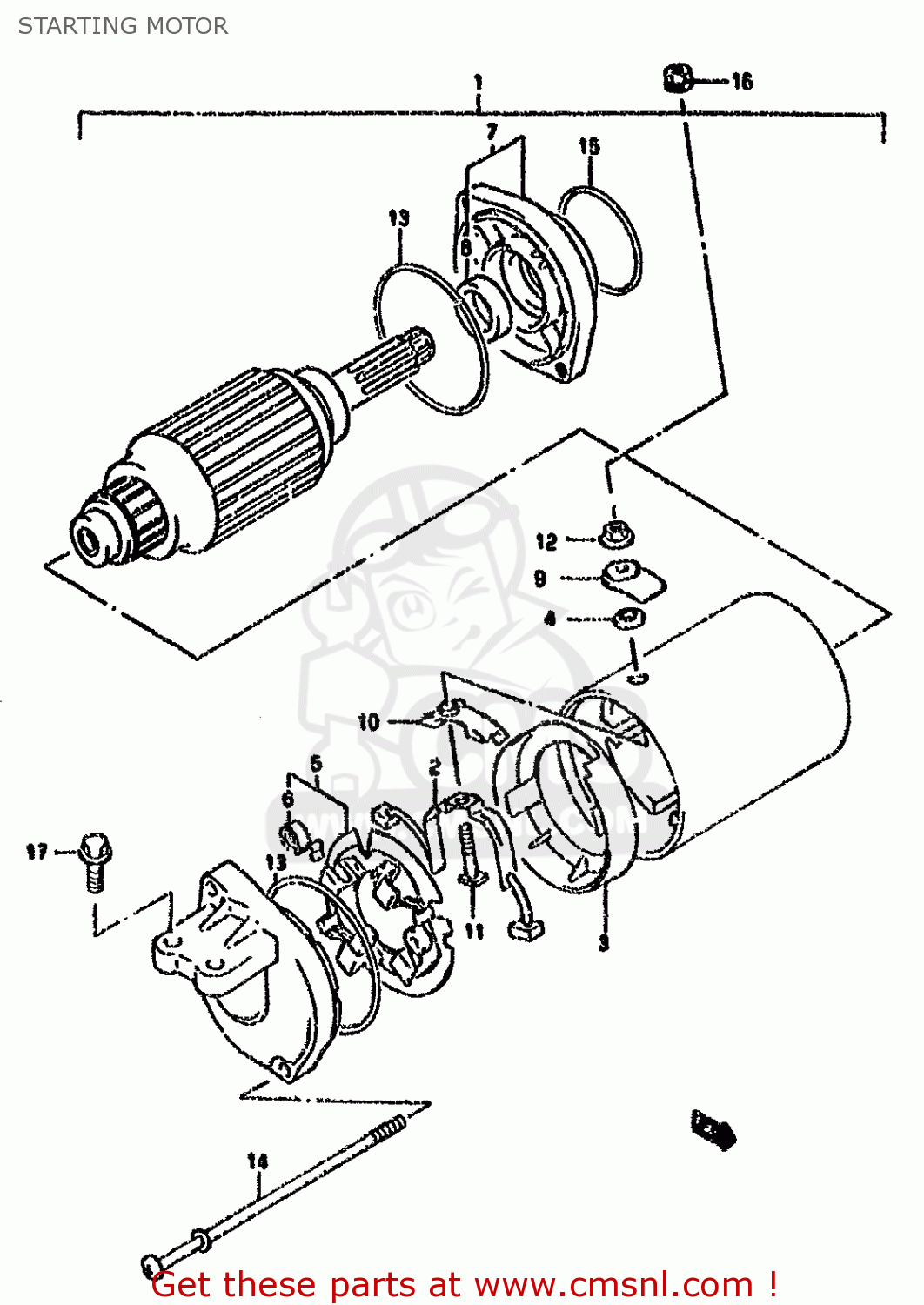

Starting motor diagram DR800SU 1996 (T) GERMANY (E22)
STARTING MOTOR DR800SU 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110031D00
ref: 1-1
MODEL M/N/P
MOTOR ASSY,STARTING (BLACK)
€ 711.50
1-2
3110031D01
ref: 1-2
MODEL R/S/T
MOTOR ASSY, STARTING
€ 711.50
2
3113148B00
ref: 2
TERMINAL SET,BRUSH
€ 35.00
3
3117338A00
ref: 3
INSULATOR
€ 14.00
4
3114348B00
ref: 4
GASKET (NAS)
€ 6.50
5
3113248B00
ref: 5
HOLDER SET,BRUSH(-)
€ 51.00
6
3113565010
ref: 6
SPRING
€ 3.00
7
3115044B00
ref: 7
BRACKET SET
€ 98.50
8
3115349210
ref: 8
SEAL,OIL
€ 15.00
9
3117248B10
ref: 9
BUSHING
€ 3.00
10
3117248B20
ref: 10
BUSHING
€ 8.50
11
3113048B00
ref: 11
BOLT
€ 4.50
12
3114548B00
ref: 12
NUT
€ 1.50
13
3126444110
ref: 13
O RING
€ 8.00
14-1
3128138A00
ref: 14-1
MODEL M/N/P
BOLT
€ 5.00
14-2
3128131D00
ref: 14-2
MODEL R/S/T
BOLT
€ 5.00
15
3115624B00
ref: 15
O-RING (D:2.0)
€ 9.50
16
0836135066
ref: 16
NUT
€ 2.00
17-1
0154706207
ref: 17-1
MODEL M/N/P
BOLT
€ 2.50
17-2
0154706203
ref: 17-2
MODEL R/S/T
SCREW
€ 2.50
