FRONT FORK (DS125N)
DS125 1980 (T) USA (E03)

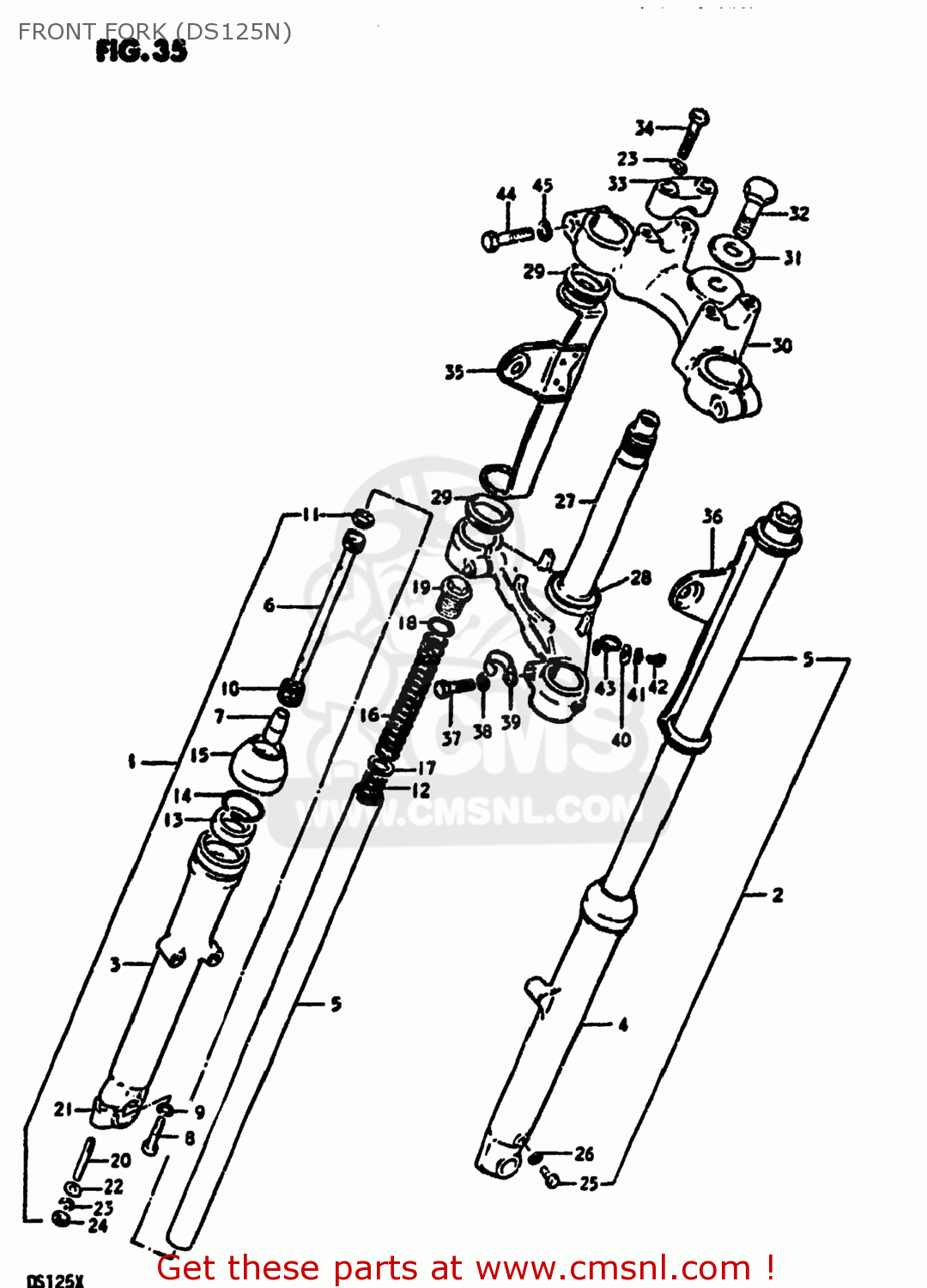

Front fork (ds125n) diagram DS125 1980 (T) USA (E03)
FRONT FORK (DS125N) DS125 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110048210291
ref: 0
DAMPER SET
€ 0.00
1
5110348200
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 0.00
2
5110448200
ref: 2
DAMPER ASSEMBLY,LEFT
€ 0.00
3
5113148200291
ref: 3
TUBE,OUTER,R
€ 87.00
4
5114148200291
ref: 4
TUBE,OUTER,L
€ 87.00
5
5111048000
ref: 5
TUBE,INNER
€ 281.00
6
5114648000
ref: 6
CYLINDER,FRONT FORK
€ 50.00
7
5119548000
ref: 7
PIECE,OIL LOCK
€ 8.50
8
5114731030
ref: 8
51147-48130
BOLT
€ 3.50
9
5114831030
ref: 9
51148-36011
GASKET (NAS)
€ 4.00
10
5117748000
ref: 10
SPRING,FORK REBOUND
€ 6.00
11
5119648000
ref: 11
RING
€ 5.50
12
5117148000
ref: 12
SPRING,FRONT FORK
€ 16.00
13
5115308030
ref: 13
51153-48420
OIL SEAL,FRONT FORK
€ 11.00
14
5115636030
ref: 14
51156-48730
CIRCLIP,FORK OIL SEAL
€ 2.50
15
5117325030
ref: 15
51173-20400
DUST SEAL,FRONT FORK
€ 9.00
16
5118448000
ref: 16
SPRING,FRONT FORK
€ 6.00
17
5117248000
ref: 17
SEAT,SPRING
€ 0.00
18
5118125030
ref: 18
O RING
€ 3.00
19
5135148000
ref: 19
BOLT
€ 12.00
20
0142108258
ref: 20
01421-0825A
STUD 8X25
€ 2.50
21
5113248200291
ref: 21
HOLDER,AXLE(BLACK)
€ 9.50
22
0832221088
ref: 22
08322-01087
WASHER
€ 2.00
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
24
0831012088
ref: 24
08310-00087
NUT
€ 2.00
25
0910006011
ref: 25
BOLT(6X8)
€ 2.50
26
5118331030
ref: 26
GASKET,DRAIN,PLUG (NAS)
€ 4.00
27
5141048000291
ref: 27
51410-48601-291
STEM,STEERING
€ 157.50
28
5162133001
ref: 28
RACE,STEERING OUTER LWR
€ 10.00
29
5155348000
ref: 29
CUSHION
€ 4.00
30
5131128030291
ref: 30
HEAD,STEERING STEM(BLACK)
€ 76.50
31
5135646030
ref: 31
WASHER(10.5X30X2.3)
€ 5.00
32
5135248000
ref: 32
51352-13600
BOLT,STEERING STEM HEAD
€ 12.50
33
5621127130291
ref: 33
56211-27200-291
HOLDER,HANDLEBAR
€ 13.50
34
0110708358
ref: 34
01500-0835B
BOLT
€ 3.50
35
5153048210291
ref: 35
BRACKET,HEADLAMP,RIGHT
€ 16.50
36
5154048210291
ref: 36
BRACKET,HEADLAMP,LEFT
€ 15.50
37
0110712358
ref: 37
BOLT
€ 3.50
38
0832121128
ref: 38
08321-01127
WASHER,LOCK 12
€ 2.50
39
5145536030
ref: 39
CLIP
€ 5.50
40
0832221068
ref: 40
08322-01067
WASHER
€ 2.00
41
0832121068
ref: 41
08321-01067
LOCK WASHER
€ 2.50
42
0211206128
ref: 42
02112-06127
SCREW 6X12
€ 2.00
43
5145246100
ref: 43
CLIP
€ 3.00
44
5145127431
ref: 44
BOLT
€ 4.50
45
0832121108
ref: 45
08321-01107
LOCK WASHER
€ 2.00
