MAGNETO (DS125N
DS125 1980 (T) USA (E03)

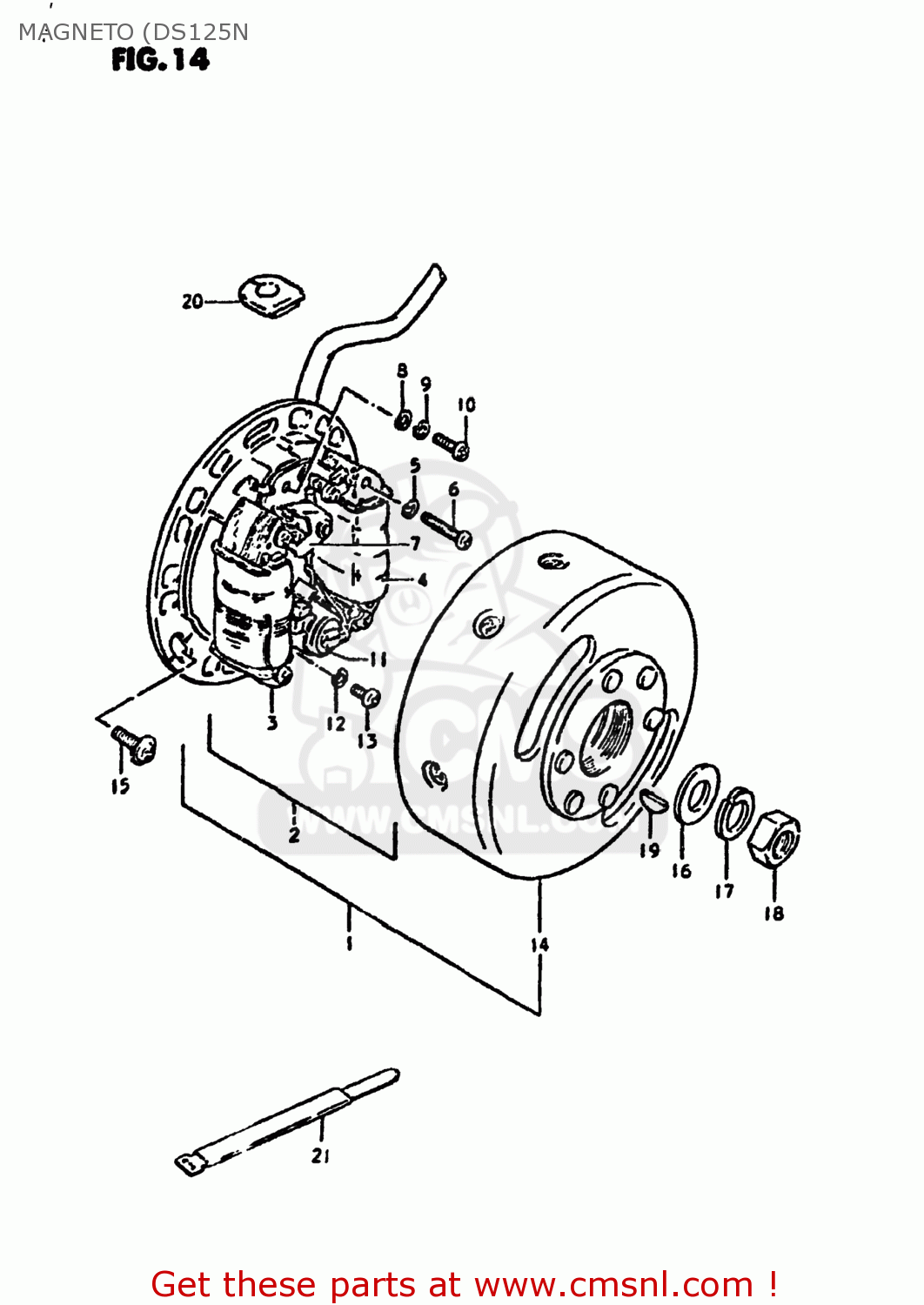

Magneto (ds125n diagram DS125 1980 (T) USA (E03)
MAGNETO (DS125N DS125 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210046410
ref: 1
MAGNETO ASSEMBLY
€ 81.00
2
3210146410
ref: 2
STATOR ASSEMBLY
€ 81.00
3
3212046410
ref: 3
COIL,LIGHTING
€ 23.50
4
3214048010
ref: 4
COIL,PRIMARY
€ 60.50
5
0832121048
ref: 5
08321-0104A
LOCK WASHER
€ 2.00
6
0211204308
ref: 6
09125-04023
SCREW (4X30)
€ 1.50
7
3224043012
ref: 7
POINT ASSY,CONTACT
€ 18.50
8
0832221048
ref: 8
08322-01047
WASHER
€ 2.00
9
0832121048
ref: 9
08321-0104A
LOCK WASHER
€ 2.00
10
0912504001
ref: 10
SCREW(4X10)
€ 4.50
11
3234143012
ref: 11
CONDENSER
€ 12.50
12
0832121048
ref: 12
08321-0104A
LOCK WASHER
€ 2.00
13
0211204088
ref: 13
02112-04087
SCREW
€ 1.50
14
3210246410
ref: 14
32102-43013
ROTOR ASSEMBLY
€ 133.50
15
0913905011
ref: 15
SCREW(5X14)
€ 3.00
16
0832221108
ref: 16
08322-01107
WASHER
€ 2.50
17
0832121108
ref: 17
08321-01107
LOCK WASHER
€ 2.00
18
0914010003
ref: 18
09140-10041
NUT (10MM)
€ 3.50
19
0834131039
ref: 19
KEY
€ 2.00
20
0930909007
ref: 20
GROMMET
€ 2.50
21
0940711302
ref: 21
09407-18301
CLAMP
€ 6.00
