REAR FENDER (DS125T
DS125 1980 (T) USA (E03)

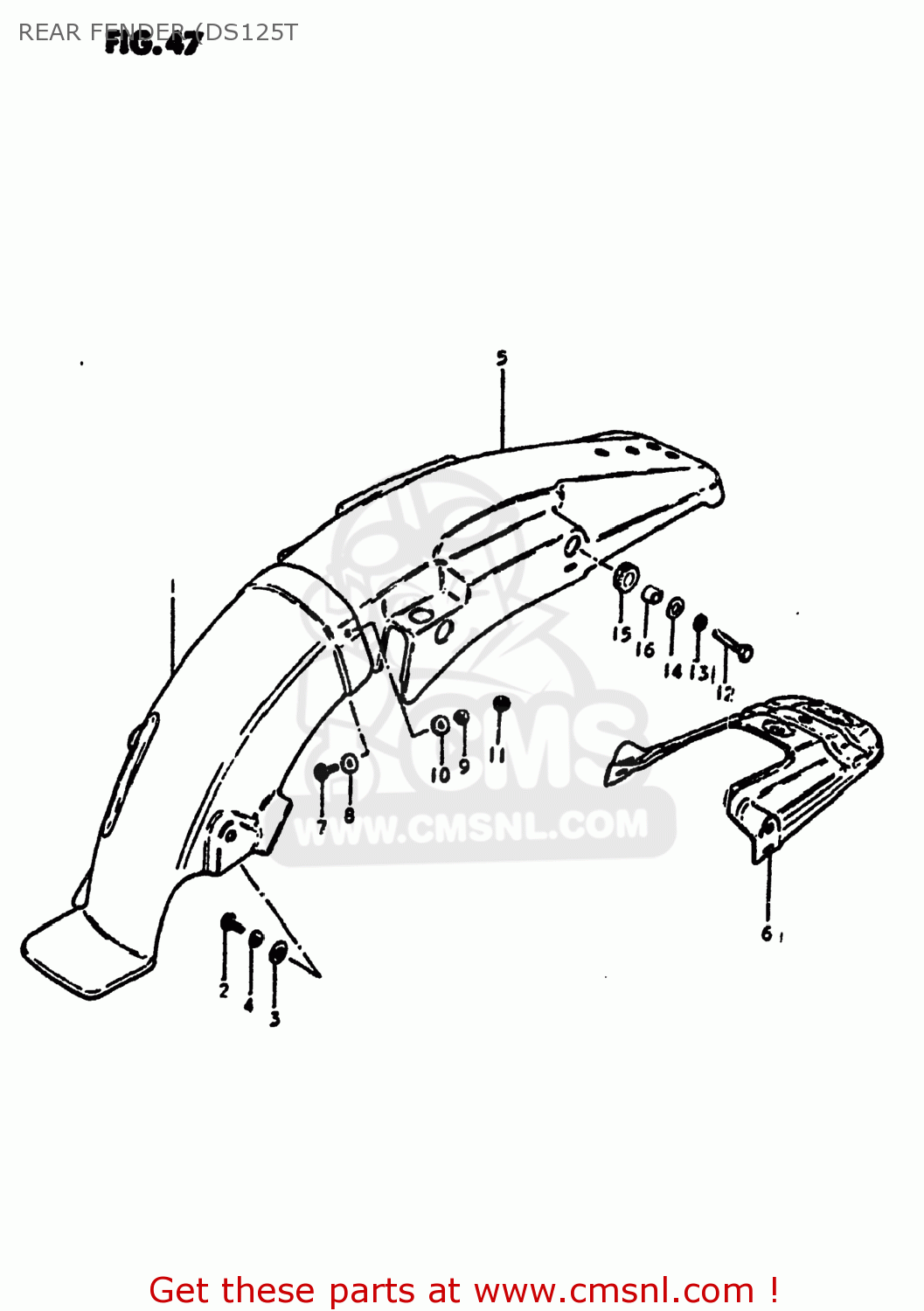

Rear fender (ds125t diagram DS125 1980 (T) USA (E03)
REAR FENDER (DS125T DS125 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311248500
ref: 1
BODY,REAR FENDER,FRONT
€ 0.00
2
0110706168
ref: 2
01500-06167
BOLT, UPPER
€ 3.00
3
0916906010
ref: 3
WASHER
€ 3.00
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5-1
631134820010G
ref: 5-1
63113-48501-13L
FENDER,REAR
€ 92.00
5-2
6311348200185
ref: 5-2
63113-48501-13L
FENDER,REAR
€ 92.00
6
6312048501
ref: 6
REINFORCEMENT,RR FENDER
€ 33.50
7
0110705168
ref: 7
01500-0516B
BOLT
€ 1.50
8
0916005017
ref: 8
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
9
0832121058
ref: 9
08321-0105A
LOCK WASHER
€ 2.00
10
0916005013
ref: 10
WASHER(5.2X16X1)
€ 1.50
11
0831011058
ref: 11
08310-00057
NUT
€ 2.50
12
0110708258
ref: 12
01500-08257
BOLT
€ 2.50
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14-1
0916008005
ref: 14-1
09160-08134
WASHER
€ 2.50
14-2
0916008004
ref: 14-2
09160-08134
WASHER
€ 2.50
15
0932012011
ref: 15
CUSHION
€ 3.00
16
0918008021
ref: 16
09180-08188
SPACER (8.2X12X7.5)
€ 3.00
