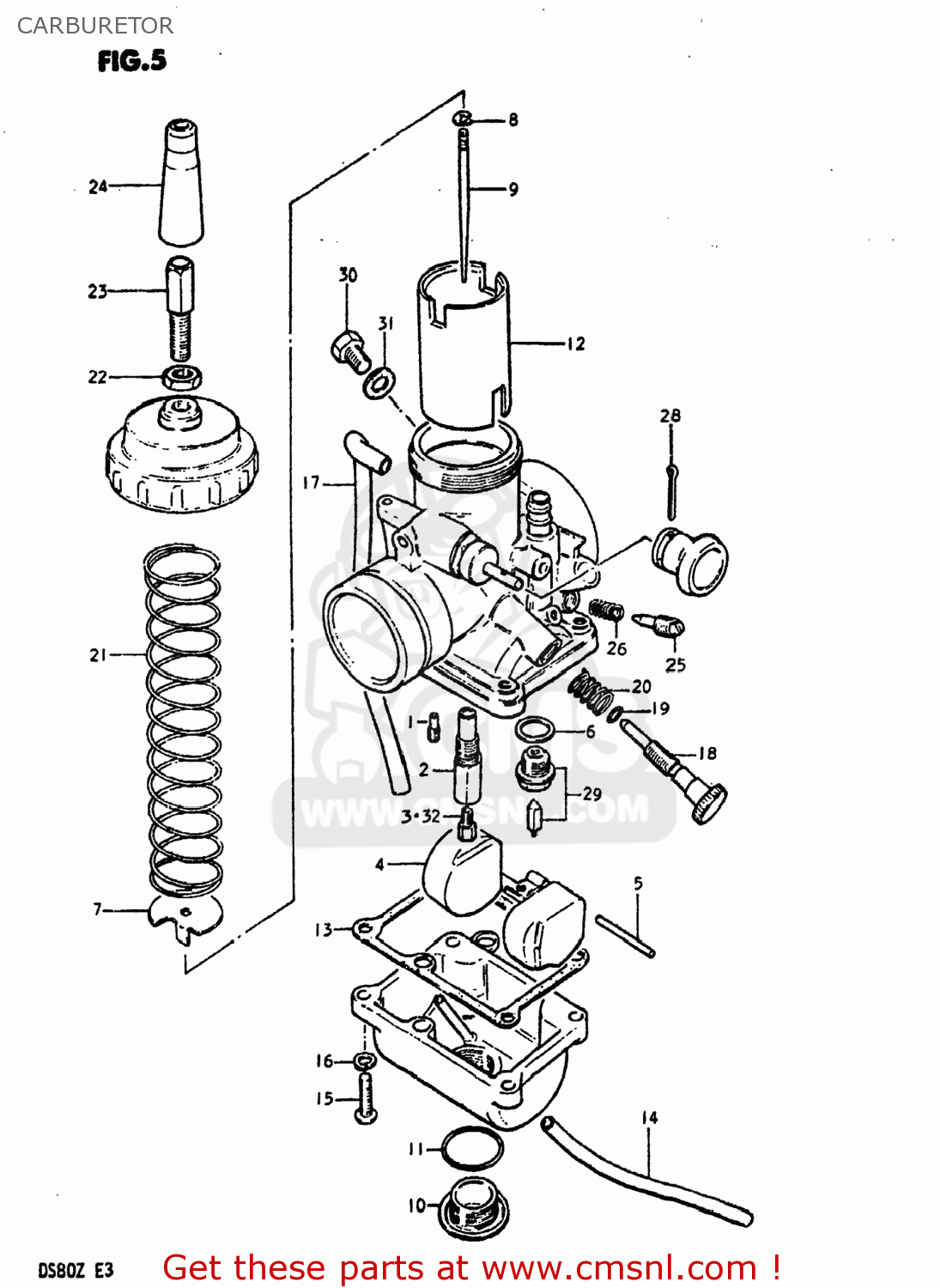

CARBURETOR

ref

part #

description

quantity

0

1320046410
ref: 0

CARBURETOR ASSEMBLY

€ 134.00

1

0949222005
ref: 1

JET,PILOT

€ 0.00

2

0949400200
ref: 2

JET,NEEDLE

€ 8.00

3

0949165002
ref: 3

JET,MAIN

€ 9.00

4

1325246410
ref: 4

FLOAT

€ 16.00

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1339201010
ref: 6

GASKET,NEEDLE VALVE (NAS)

€ 2.50

7

1358109210
ref: 7

STOPPER,NEEDLE CLIP

€ 5.50

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338346410
ref: 9

NEEDLE,JET

€ 0.00

10

1324732210
ref: 10

SCREW,GUIDE

€ 13.00

11

1329440110
ref: 11
09280-20003

O-RING

€ 2.50

12

1355146410
ref: 12

VALVE,THROTTLE

€ 20.50

13

1325146010
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

14

1368430650
ref: 14
13684-40A00

HOSE

€ 7.50

15

0211204168
ref: 15
02112-0416A

SCREW

€ 1.00

16

0832121048
ref: 16
08321-0104A

LOCK WASHER

€ 2.00

17

1368430650
ref: 17
13684-40A00

HOSE

€ 7.50

18

1326746010
ref: 18
13267-36A00

ADJUSTER

€ 10.00

19

1329430010
ref: 19
13278-02340

O-RING

€ 1.50

20

1326846010
ref: 20

SPRING

€ 3.50

21

1357336110
ref: 21

SPRING,THROTTLE VALVE

€ 3.00

22

1366116600
ref: 22

NUT

€ 5.00

23

1357722600
ref: 23

ADJUSTER,CABLE

€ 6.00

24

1368133010
ref: 24

CAP,CABLE ADJUSTER

€ 8.00

25

1326995110
ref: 25

SCREW,PILOT AIR

€ 8.50

26

1326895110
ref: 26
13268-35010

SPRING

€ 3.00

27

1341325710
ref: 27

LEVER

€ 8.50

28

0411116158
ref: 28
04111-1620A

COTTER PIN

€ 2.00

29

1337023010
ref: 29

VALVE ASSY,NEEDLE

€ 34.00

30

1366418654
ref: 30

BOLT

€ 10.50

31

1366331010
ref: 31

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

32-1

0949155002
ref: 32-1

JET,MAIN (55)

€ 9.50

32-2

0949160002
ref: 32-2

JET,MAIN

€ 9.00

32-3

0949170002
ref: 32-3

JET,MAIN

€ 0.00

32-4

0949175002
ref: 32-4

JET,MAIN (75)

€ 7.00

32-5

0949180003
ref: 32-5

JET,MAIN(83.8)

€ 8.00
