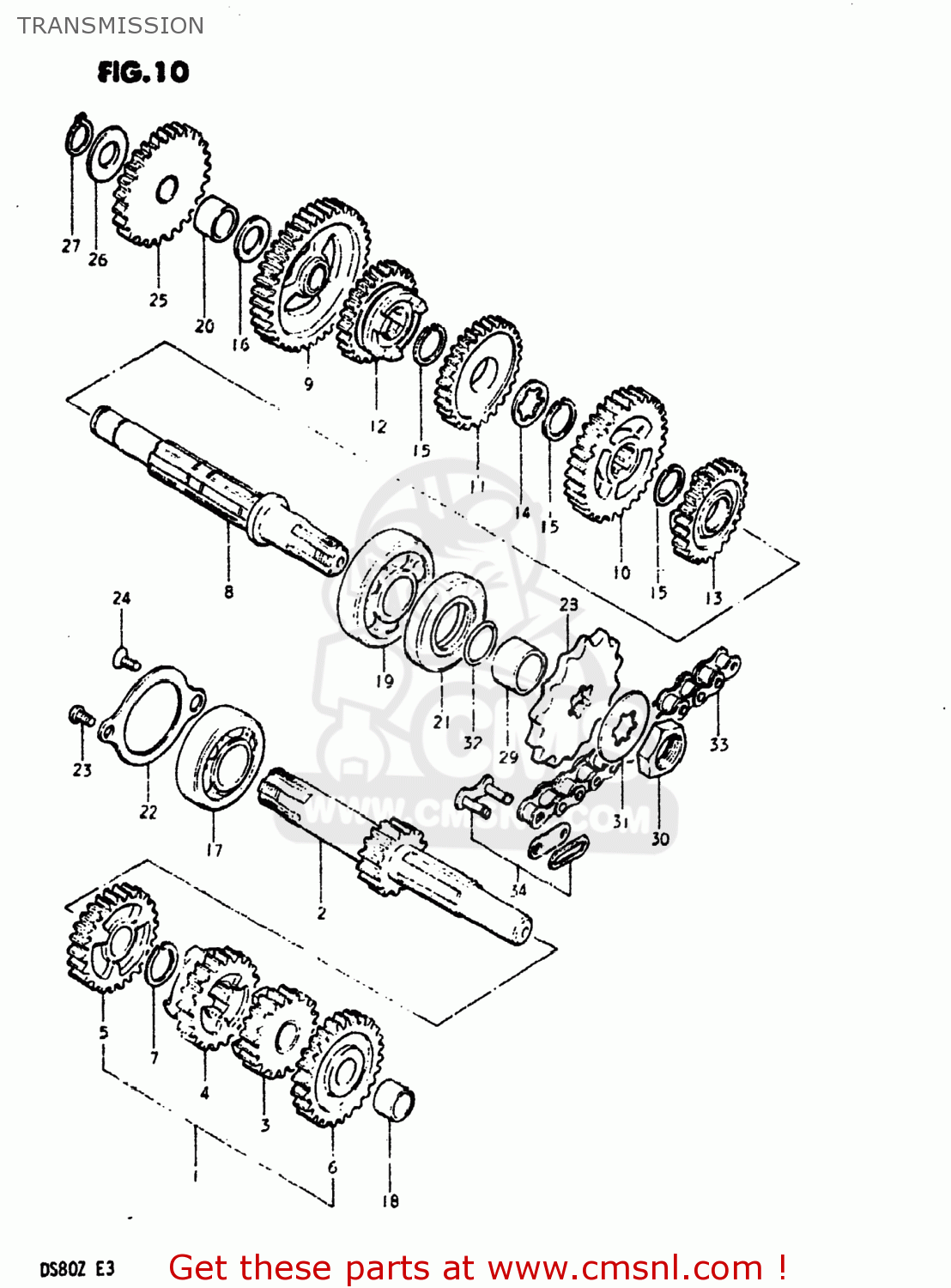

TRANSMISSION

ref

part #

description

quantity

1

2412046001
ref: 1
24120-46002

SHAFT,COUNTER

€ 169.00

2

2412146001
ref: 2

SHAFT,COUNTER(NT:13)

€ 47.50

3

2422046000
ref: 3

GEAR,2ND DRIVE(NT:19)

€ 0.00

4

2423146001
ref: 4

GEAR,3RD DRIVE(NT:22)

€ 0.00

5

2424146000
ref: 5

GEAR,4TH DRIVE(NT:24)

€ 31.50

6

2425146000
ref: 6
24251-46001

GEAR,FIFTH DRIVE

€ 32.50

7

0938017007
ref: 7

CIRCLIP

€ 2.00

8

2413146000
ref: 8

SHAFT,DRIVE

€ 77.00

9

2431046001
ref: 9

GEAR,1ST DRIVEN(NT:35)

€ 31.50

10

2432146001
ref: 10

GEAR,2ND DRIVEN(NT:32)

€ 50.00

11

2433146000
ref: 11

GEAR,3RD DRIVEN(NT:29)

€ 38.50

12

2434146000
ref: 12

GEAR,4TH DRIVEN(NT:36)

€ 39.50

13

2435146000
ref: 13

GEAR,5TH DRIVEN(NT:24)

€ 40.00

14

0916013006
ref: 14

WASHER(13X24X1)

€ 2.50

15

0938017007
ref: 15

CIRCLIP

€ 2.00

16

0916717003
ref: 16

WASHER,LOCK

€ 1.50

17

0926217008
ref: 17
09262-17023

BEARING

€ 14.00

18

0930313001
ref: 18

BUSH

€ 6.50

19

0811363030
ref: 19

BEARING

€ 15.50

20

0930313001
ref: 20

BUSH

€ 6.50

21

0928321003
ref: 21

SEAL,OIL(21X40X6)

€ 5.50

22

2474146000
ref: 22

RETAINER,CNTR SHAFT BEARING

€ 3.50

23

0211206108
ref: 23
02112-06107

SCREW

€ 1.50

24

0212206108
ref: 24
02122-0610A

SCREW

€ 1.50

25

2626046000
ref: 25
26260-46001

GEAR,KICK STARTER IDLE

€ 24.00

26

0821112261
ref: 26

WASHER

€ 2.50

27

0833131128
ref: 27
08331-3112A

CIRCLIP

€ 2.00

28-1

2751146700
ref: 28-1

SPROCKET,ENGINE

€ 9.50

28-2

2751146000
ref: 28-2

SPROCKET,ENGINE(NT:13)

€ 13.00

28-3

2751127400
ref: 28-3
27511-26400

SPROCKET,ENGINE

€ 19.00

29

0918017008
ref: 29

SPACER(17X21X13)

€ 7.00

30

0914016002
ref: 30

NUT

€ 4.00

31

0916716001
ref: 31

WASHER,LOCK

€ 1.50

32

0928017001
ref: 32

O RING(D:1,ID:16.8)

€ 2.00

33

2760046510
ref: 33
27600-46911-134

CHAIN ASSEMBLY,DRIVE

€ 38.00

34-1

2762028011
ref: 34-1
27620-20910

JOINT ASSEMBLY,CHAIN

€ 3.00

34-2

2762012020
ref: 34-2
27620-40220

JOINT ASSEMBLY,CHAIN

€ 7.00
