PROP STAND - BRAKE PEDAL
DS80 1981 (X) USA (E03)

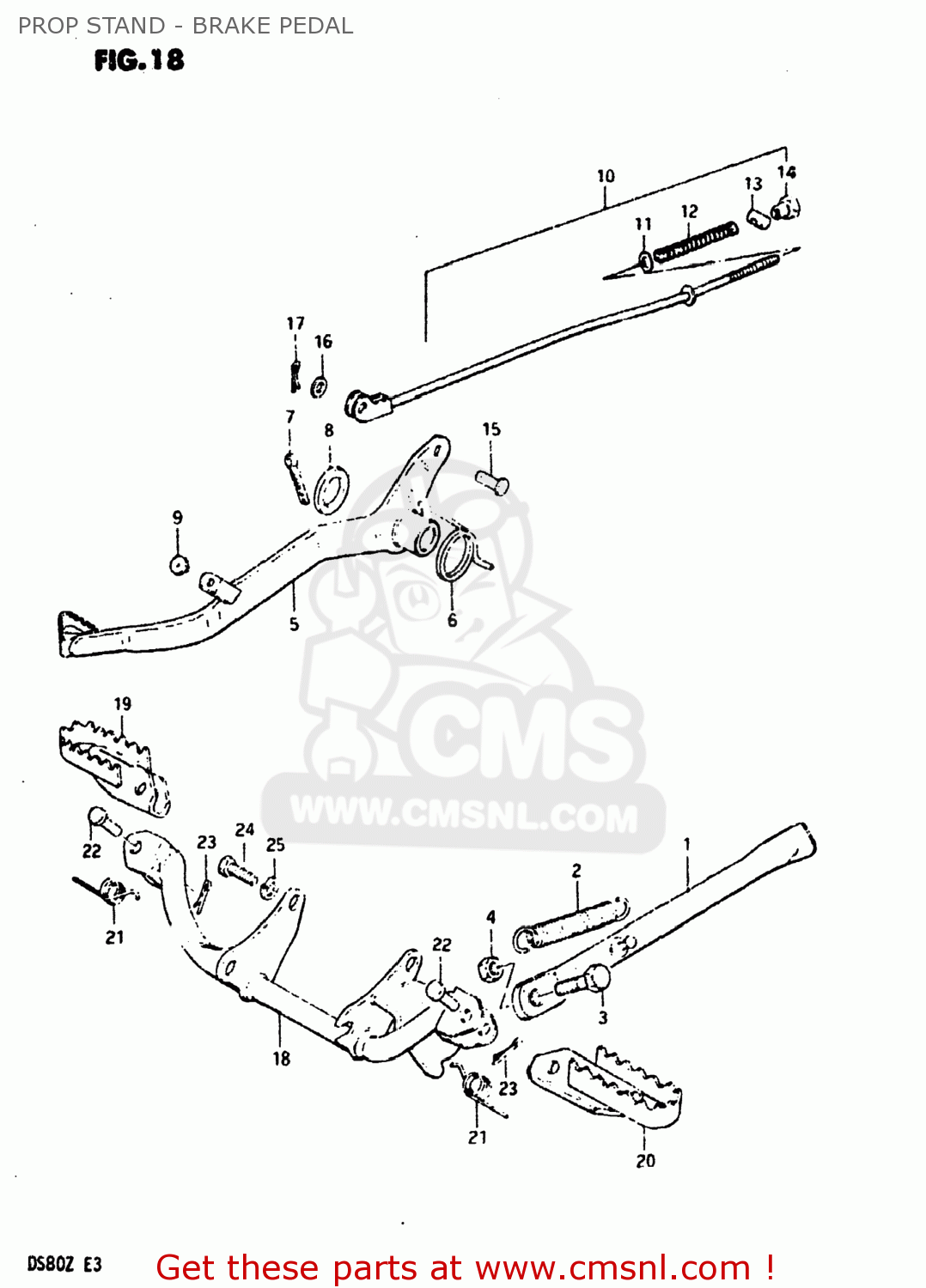

Prop stand - brake pedal diagram DS80 1981 (X) USA (E03)
PROP STAND - BRAKE PEDAL DS80 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231046400
ref: 1
STAND,SIDE
€ 0.00
2
0944314017
ref: 2
SPRING
€ 6.50
3
0910010007
ref: 3
09100-10287
BOLT
€ 4.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
4311046910
ref: 5
PEDAL,BRAKE
€ 26.50
6
0944832004
ref: 6
09448-32004-XC0
SPRING
€ 4.50
7
0411130308
ref: 7
04111-3030A
COTTER PIN
€ 1.50
8
0916015002
ref: 8
WASHER(15.5X26X2.3)
€ 2.00
9
4315530500
ref: 9
STOPPER,BRAKE PEDAL
€ 2.00
10
4330046611
ref: 10
ROD ASSEMBLY,REAR BRAKE
€ 10.50
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
0944009004
ref: 12
SPRING
€ 2.00
13
0920911002
ref: 13
PIN(11X18)
€ 2.00
14
0915006001
ref: 14
09150-06010
NUT
€ 3.50
15
0920006013
ref: 15
PIN(L:13.5)
€ 2.00
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
17
0411120208
ref: 17
04111-2020A
PIN 20X20
€ 1.50
18
4351046000
ref: 18
43510-46700
BAR,FRONT FOOTREST
€ 34.50
19
4355046000
ref: 19
43550-46000-019
FOOTREST,FRONT,RIGHT
€ 9.00
20
4356046000
ref: 20
43560-46000-019
FOOTREST
€ 9.00
21
0944814012
ref: 21
SPRING
€ 3.00
22
0920008002
ref: 22
PIN
€ 2.00
23
0411120208
ref: 23
04111-2020A
PIN 20X20
€ 1.50
24
0110708168
ref: 24
01500-0816B
BOLT
€ 2.00
25
0832121088
ref: 25
08321-01087
LOCK WASHER
€ 2.00
